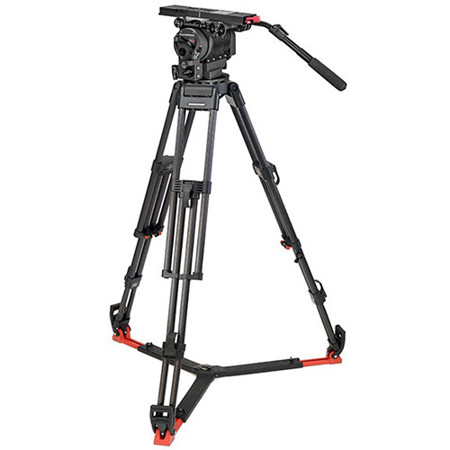

OConnor Ultimate 2560 Fluid Head with 60L 3-Section Carbon Fiber Tripod Legs and Floor Spreader

SKU: OCUFH60L MFR: C2560-60LM-F
Earn VIP Reward Points

Key Features

  • Capture smooth, professional footage with the OConnor 2560 fluid head, offering exceptional control.
  • Experience rock-solid stability with these carbon fiber tripod legs, supporting up to 209 lbs of camera gear.
  • Achieve precise leveling using the included 150mm ball base adapter for versatile shooting angles.
  • Enjoy a versatile height range from 22.8" to 60.6" with this 2-stage video tripod for dynamic shots.
  • Benefit from the quick clamping system for rapid setup and adjustments on location with lever locks.
  • Maintain stability on any surface with the included floor spreader and dual spiked feet for secure footing.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

OConnor C2560-60LM-F Specifications

Ultimate 2560 Fluid Head Package

Ultimate 2560 Fluid Head Package

Jump to...
  • Load Capacity

    83 lb (37.7kg) at 4" (10.2cm)
    Camera center of gravity above platform

    65 lb (29.5kg) at 6" (15.2cm)
    Camera center of gravity above platform

    53 lb (24.1kg) at 8" (20.3cm)
    Camera center of gravity above platform

  • Base

    Mitchell (with 150mm ball adapter)

  • Quick Release/Wedge Plate

    OConnor 2575-120

  • Tilt

    +/-90 Degree

  • Dimensions

    8 x 11.3 x 7.5" (20.3 x 28.7 x 19.1cm)

  • Weight

    16.2 lb (7.3kg)

60L Tripod Legs with Mitchell Top Plate

Jump to...
  • Leg Stages/Sections

    2-Stage

  • Height Range

    Maximum: 60.6" (153.9cm)
    Minimum: 22.8" (57.9cm)

  • Load Capacity

    209 lb (95kg)

  • Head Attachment Fitting

    Mitchell Plate

  • Material

    Legs: Carbon fiber
    Head Attachment Fitting: Aluminum

  • Leg Lock Type

    Smart Quick Clamping System - Lever Lock

  • Spreader

    Mid-level, removable
    Spreader not included

  • Independent Leg Spread

    Yes (when spreader is removed)

  • Spiked/Retractable Feet

    Dual spikes

  • Collapsed Height

    29.9" (75.9cm)

  • Weight

    9.0 lb (4.1kg)

Floor Spreader for 30L/60L Tripod

Jump to...
  • Material

    SBR and PA

  • Compatibility

    OConnor 30L & 60L tripod systems
    All Sachtler 100 & 150 bowl tripods
    (excluding DA 100 K, DA 150 K & Cine)

  • Length

    Minimum Leg Spread: 13.8" (25cm)
    Maximum Leg Spread: 22.8" (58cm)

  • Weight

    3.6 lb (1.6kg)

  • UPC Code

    5060312086814

Models
OConnor Ultimate 2560 Fluid Head with 60L CF Tripod Legs and Floor Spreader
$23,760.00

Special Order

Generally ships in 7-14 days, subject to availability

OConnor Ultimate 2560 Fluid Head, 60L 150mm Bowl CF Tripod Legs & Floor Spreader
$23,760.00

Special Order

Generally ships in 7-14 days, subject to availability

MaterialCarbon FiberCarbon FiberCarbon Fiber
Weight20.1 to 30 lbs20.1 to 30 lbs20.1 to 30 lbs
Closed Length25.1" to 30"25.1" to 30"25.1" to 30"
Maximum Height55.1" to 65"55.1" to 65"55.1" to 65"
Leg Sections222
Maximum Load Capacity70.1 lbs & Up70.1 lbs & Up70.1 lbs & Up
Quick ReleaseIncludes QRIncludes QRIncludes QR
Maximum Extended Height55.1" to 65"55.1" to 65"55.1" to 65"

About OConnor C2560-60LM-F

Become a master of precision and stability with the Ultimate 2560 Fluid Head, a high-quality product from O'Connor, a brand synonymous with professional cinematography. This fluid head is the perfect companion for digital cinematography, compatible with a wide range of lightweight digital cinema cameras from leading brands like Sony, Canon, ARRI, AJA, JVC, Panasonic, Vision Research, and RED.

The 2560 Fluid Head is the successor to the renowned 2575, bringing the same level of adaptability and performance to your filming and photography needs. It's been a staple in Hollywood movie features and episodic TV dramas since the early 1990s, showcasing its reliability and industry acceptance.

Experience the ultra-smooth characteristic O'Connor feel with the continuously adjustable O'Connor sinusoidal counterbalance and fluid drag, designed to handle the largest payload range.

The package also includes the 60L 2-Stage Carbon Fiber Tripod Legs with a Mitchell Top Plate. This sturdy and durable tripod is made from high-quality carbon fiber, offering a lightweight yet robust support system. Despite weighing just 9 lbs (4.1 kg), it can safely carry payloads of up to 209 lbs (95 kg), even at its maximum height of 60.6" (154 cm).

The tripod features a double extension design for stability and a smart quick clamping system for easy deployment. The pre-set mid-level spreader and removable rubber feet with exposed spikes ensure optimal traction and payload safety on various surfaces.

The set is completed with a versatile Floor Spreader, compatible with both O'Connor 30L and 60L tripods, as well as all Sachtler 100 and 150 bowl tripods (excluding the DA 100 K, DA 150K, and Cine). This addition enhances the tripod's stability, making it suitable for a variety of shooting scenarios.

In summary, the Ultimate 2560 Fluid Head with 60L 3-Section Carbon Fiber Tripod Legs and Floor Spreader is a reliable, versatile, and high-quality choice for professional cinematographers seeking a flexible shooting package for larger cameras.

OConnor C2560-60LM-F Features

  • High-quality Ultimate 2560 Fluid Head, perfect for digital cinematography
  • Compatible with a wide range of lightweight digital cinema cameras
  • Features O'Connor's signature sinusoidal counterbalance and fluid drag for ultra-smooth operation
  • Includes durable 60L 2-Stage Carbon Fiber Tripod Legs with a Mitchell Top Plate
  • Tripod offers fast setup, lightweight design, and can carry payloads up to 209 lbs
  • Comes with a versatile Floor Spreader, enhancing stability for various shooting scenarios

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture smooth, professional footage with the OConnor 2560 fluid head, offering exceptional control.
  • Experience rock-solid stability with these carbon fiber tripod legs, supporting up to 209 lbs of camera gear.
  • Achieve precise leveling using the included 150mm ball base adapter for versatile shooting angles.
  • Enjoy a versatile height range from 22.8" to 60.6" with this 2-stage video tripod for dynamic shots.
  • Benefit from the quick clamping system for rapid setup and adjustments on location with lever locks.
  • Maintain stability on any surface with the included floor spreader and dual spiked feet for secure footing.

What's in the box:

  • 2560 Fluid Head
  • Euro-Style Quick Release Platform with Touch & Go Plate
  • Top Half of Telescoping Pan Handle (30 Degree Bend)
  • Bottom Extension of Telescoping Pan Handle
  • Mitchell Base
  • Mitchell Base Tiedown
  • 150mm Ball Base Adapter
  • Tiedown
  • 60L 2-Stage Carbon Fiber Tripod Legs with Mitchell Top Plate
  • Floor Spreader for 30L/60L Tripod
  • OConnor 1 Year Limited Warranty (Extended 1 Year Limited Warranty with Registration)
