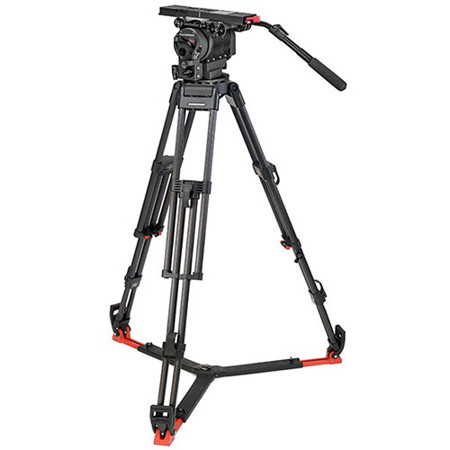

OConnor Ultimate 2560 Fluid Head with 60L 150mm Bowl 3-Section Carbon Fiber Tripod Legs and Floor Spreader

SKU: OCUFH60LFS MFR: C2560-60L150-F
Earn VIP Reward Points

Key Features

  • Capture smooth, professional footage with the OConnor fluid head video tripod system.
  • Achieve precise control with this video tripod's superior tilt and pan capabilities.
  • Supports up to 83 lbs, ideal for cinema cameras; this tripod is a reliable support.
  • Carbon fiber tripod legs provide stability and portability for on-location shoots.
  • Adjust height from 22.8" to 60.6" with this 2-stage tripod for versatile framing.
  • The included floor spreader enhances stability on any surface with this video tripod.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

OConnor C2560-60L150-F Specifications

Ultimate 2560 Fluid Head Package

Ultimate 2560 Fluid Head Package

Jump to...
  • Load Capacity

    83 lb (37.7kg) at 4" (10.2cm)
    Camera center of gravity above platform

    65 lb (29.5kg) at 6" (15.2cm)
    Camera center of gravity above platform

    53 lb (24.1kg) at 8" (20.3cm)
    Camera center of gravity above platform

  • Base

    Mitchell (with 150mm ball adapter)

  • Quick Release/Wedge Plate

    OConnor 2575-120

  • Tilt

    +/-90 Degree

  • Dimensions

    8 x 11.3 x 7.5" (20.3 x 28.7 x 19.1cm)

  • Weight

    16.2 lb (7.3kg)

60L Tripod Legs with 150mm Bowl

Jump to...
  • Leg Stages/Sections

    2-Stage

  • Height Range

    Maximum: 60.6" (153.9cm)
    Minimum: 22.8" (57.9cm)

  • Load Capacity

    209 lb (95kg)

  • Head Attachment Fitting

    150 mm Ball Base

  • Material

    Legs: Carbon fiber
    Head Attachment Fitting: Aluminum

  • Leg Lock Type

    Smart Quick Clamping System - Lever Lock

  • Spreader

    Mid-level, removable
    Spreader not included

  • Independent Leg Spread

    Yes (when spreader is removed)

  • Spiked/Retractable Feet

    Dual spikes

  • Collapsed Height

    29.9" (75.9cm)

  • Weight

    9.0 lb (4.1kg)

Floor Spreader for 30L/60L Tripod

Jump to...
  • Material

    SBR and PA

  • Compatibility

    OConnor 30L & 60L tripod systems
    All Sachtler 100 & 150 bowl tripods
    (excluding DA 100 K, DA 150 K & Cine)

  • Length

    Minimum Leg Spread: 13.8" (25cm)
    Maximum Leg Spread: 22.8" (58cm)

  • Weight

    3.6 lb (1.6kg)

  • UPC Code

    5060312086838

Models
OConnor Ultimate 2560 Fluid Head, 60L 150mm Bowl CF Tripod Legs & Floor Spreader
$23,760.00

Special Order

Generally ships in 7-14 days, subject to availability

OConnor Ultimate 2560 Fluid Head with 60L CF Tripod Legs and Floor Spreader
$23,760.00

Special Order

Generally ships in 7-14 days, subject to availability

MaterialCarbon FiberCarbon FiberCarbon Fiber
Weight20.1 to 30 lbs20.1 to 30 lbs20.1 to 30 lbs
Closed Length25.1" to 30"25.1" to 30"25.1" to 30"
Maximum Height55.1" to 65"55.1" to 65"55.1" to 65"
Leg Sections222
Maximum Load Capacity70.1 lbs & Up70.1 lbs & Up70.1 lbs & Up
Quick ReleaseIncludes QRIncludes QRIncludes QR
Maximum Extended Height55.1" to 65"55.1" to 65"55.1" to 65"

About OConnor C2560-60L150-F

The Ultimate 2560 Fluid Head, a proud addition to OConnor's esteemed lineup, is engineered for the dynamic demands of digital cinematography. This fluid head is the compact counterpart to the renowned 2575 model, tailored to support a wide array of digital cinema cameras from industry leaders like Sony, Canon, ARRI, AJA, JVC, Panasonic, Vision Research, and RED. Whether configured for lightweight portability or fully accessorized studio setups, the Ultimate 2560 Fluid Head delivers the precision and versatility required by professional filmmakers.

Crafted with OConnor's signature continuously adjustable sinusoidal counterbalance and fluid drag systems, the Ultimate 2560 Fluid Head ensures an ultra-smooth operation across an extensive payload range, maintaining the classic OConnor feel that has been a staple on Hollywood movie sets and episodic TV dramas since the 1990s.

Accompanying the fluid head is the 60L 3-Section Carbon Fiber Tripod Legs with a 150mm Bowl, a testament to OConnor's commitment to innovation and quality. The 60L tripod is a marvel of modern engineering, combining the strength and durability of carbon fiber with a lightweight design, weighing in at just 9 lbs (4.1 kg). Despite its featherlight construction, it confidently supports payloads up to 209 lbs (95 kg), making it suitable for a broad range of camera configurations.

The tripod's double extension design not only provides a stable base for your equipment but also offers a generous height range, extending up to 60.6" (154 cm), while collapsing down to a compact 29.9" (76 cm) for transport. The intuitive quick clamping system, complete with visible clamp lockdown, and the pre-set mid-level spreader facilitate secure and effortless setup in diverse shooting environments. For added versatility, the removable rubber feet reveal spikes to ensure optimal traction and stability on various surfaces.

The Floor Spreader, designed specifically for the OConnor 30L and 60L tripods, enhances the stability of your setup. It is also compatible with all Sachtler 100 and 150 bowl tripods (with the exception of the DA 100 K, DA 150K, and Cine models), offering additional flexibility for cinematographers who utilize different equipment.

The Ultimate 2560 Fluid Head with 60L 150mm Bowl 3-Section Carbon Fiber Tripod Legs and Floor Spreader is an impeccable choice for professionals seeking a sturdy, durable, versatile, reliable, and high-quality support system for their filming and photography needs. This combination is designed to deliver unparalleled stability and smooth movement, ensuring that every shot is captured with precision.

OConnor C2560-60L150-F Features

  • Ultimate 2560 Fluid Head, perfect for digital cinematography with industry-leading cameras like Sony, Canon, ARRI, and RED
  • Features OConnor's signature continuously adjustable sinusoidal counterbalance and fluid drag for ultra-smooth operation
  • 60L 3-Section Carbon Fiber Tripod Legs with 150mm Bowl, offering lightweight yet sturdy support for payloads up to 209 lbs
  • Double extension design provides a generous height range, extending up to 60.6" and collapsing to a compact 29.9" for easy transport
  • Quick clamping system and pre-set mid-level spreader for secure and effortless setup in diverse shooting environments
  • Includes Floor Spreader designed for OConnor 30L and 60L tripods, also compatible with all Sachtler 100 and 150 bowl tripods for enhanced stability

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture smooth, professional footage with the OConnor fluid head video tripod system.
  • Achieve precise control with this video tripod's superior tilt and pan capabilities.
  • Supports up to 83 lbs, ideal for cinema cameras; this tripod is a reliable support.
  • Carbon fiber tripod legs provide stability and portability for on-location shoots.
  • Adjust height from 22.8" to 60.6" with this 2-stage tripod for versatile framing.
  • The included floor spreader enhances stability on any surface with this video tripod.

What's in the box:

  • 2560 Fluid Head
  • Euro-Style Quick Release Platform with Touch & Go Plate
  • Top Half of Telescoping Pan Handle (30 Degree Bend)
  • Bottom Extension of Telescoping Pan Handle
  • Mitchell Base
  • Mitchell Base Tiedown
  • 150mm Ball Base Adapter
  • Tiedown
  • 60L 2-Stage Carbon Fiber Tripod Legs with 150mm Bowl
  • Floor Spreader for 30L/60L Tripod
  • OConnor 1 Year Limited Warranty (Extended 1 Year Limited Warranty with Registration)
