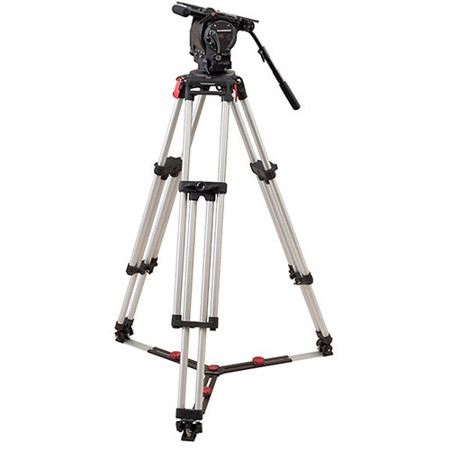

OConnor Ultimate 2575D Fluid Head with Cine HD 2-Section Aluminum Tripod and Floor Spreader

SKU: OCULH150M MFR: C2575-CINE150-F
Earn VIP Reward Points

Key Features

  • Experience superior stability with this OConnor video tripod, supporting up to 309 lbs!
  • Achieve smooth, professional pans and tilts using the Ultimate 2575D fluid head.
  • Enjoy versatile shooting with a height range from 33.6" to 69.2" on this aluminum tripod.
  • Capture cinematic shots with the Cine HD tripod's precise and fluid movement control.
  • Easily level your setup using the illuminated leveling bubble on the fluid video head.
  • Transport and set up quickly with the included floor spreader for enhanced tripod stability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

OConnor C2575-CINE150-F Specifications

Ultimate 2575D Fluid Head Package

Ultimate 2575D Fluid Head Package

Jump to...
  • Load Capacity

    Up to 90 lb (40.8kg)

  • Diameter/Thread

    Delivered without base and tiedown (to be bought separately)

  • Counter Balance System

    Continuously variable dual-axis sinusoidal

  • Platform

    OConnor Plate, 4.7" (120 mm) Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate, Arri 24" (60.96 cm) Plate

  • Counter Balance Range

    @ 4" (102mm): 0 to 133 lb (60.5kg)
    @ 6" (152mm): 0 to 105 lb (47.7kg)
    @ 8" (203mm): 0 to 87 lb (39.5kg)

  • Center of Gravity

    2 to 18

  • Quick Release/Wedge Plate

    Accepts standard ARRI of Panavision dovetail plate (sold separately)

  • Balance Plate

    Sliding (sold separately)

  • Tilt Drag

    OConnor continuously variable fluid drag

  • Tilt Range

    +/-90 Degree

  • Tilt Lock

    Caliper brake + separate horizontal center lock

  • Pan Range

    360 Degree

  • Pan Lock

    Caliper brake

  • Leveling Bubble/Illuminated

    Illuminated

  • Handles

    30 Degree

  • Temperature Range

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Dimensions (H x W x D)

    8.4 x 12.4 x 8.6" (21.3 x 31.5 x 21.8cm)

  • Weight

    22.9 lb (10.4kg)

Cine HD Aluminum Alloy Tripod

Jump to...
  • Load Capacity

    309 lb (140kg)

  • Height Range

    Maximum: 69.2" (175.8cm)
    Minimum: 33.6" (85.3cm)

  • Folded Length

    40.4" (103.0cm)

  • Head Attachment Fitting

    150mm

  • Material

    Aluminum alloy

  • Leg Stages/Sections

    1/2

  • Leg Lock Type

    Rotary clamps

  • Independent Leg Spread

    Yes

  • Spiked/Retractable Feet

    Spiked- Dual

  • Center Brace

    (Sold separately)

  • Weight

    29.3 lb (13.3kg) with Spreader

Floor Spreader for Cine HD Tripod

Jump to...
  • Compatibility

    Cine HD Tripods

  • UPC Code

    5060312087101

About OConnor C2575-CINE150-F

Let the Ultimate 2575D Fluid Head with Cine HD 2-Section Aluminum Tripod and Floor Spreader elevate your film production to new heights. This premium product is the crown jewel of OConnor's Ultimate range, renowned for its superior features and functionality. The 2575D Fluid Head, a successor to the highly successful 2575 series, has become a standard in the film industry, thanks to its patented sinusoidal counterbalance system. This unique feature ensures true and accurate balance at any point in the tilt range, offering unparalleled control and stability for professional film style shooting.

The 2575D Fluid Head also boasts OConnor's stepless, ultra-smooth pan & tilt fluid drag, providing you with the ultimate control and stability for film style shooting. It retains many of the beloved features from its predecessors but also introduces several new ones. Notably, the platform controls are conveniently located on the operator's side of the head, and the platform release lever comes with a one-touch finger-actuated safety release catch. This design allows for a single "finger" or hand action to undo the safety catch and open the lever.

The Fluid Head also features dual platform scales, a platform with four handle rosettes, and a soft hand rest on the left-hand side for enhanced comfort and ease of use.

The set also includes the Cine HD 150mm Bowl Tripod, a heavy-duty aluminum tripod designed to safely and reliably support payloads of up to 309 lbs. (140 kg). This makes it an ideal choice for handling heavy equipment during film production.

Finally, the package is completed with the OConnor C1221-00015 Floor Spreader, specifically designed for use with the Cine HD tripod. This essential accessory significantly enhances the tripod's stability when handling heavy loads and offers added protection for delicate floor surfaces.

In summary, the Ultimate 2575D Fluid Head with Cine HD 2-Section Aluminum Tripod and Floor Spreader is a comprehensive solution for professional film production, offering superior control, stability, and reliability.

OConnor C2575-CINE150-F Features

  • Patented sinusoidal counterbalance system in the 2575D Fluid Head for accurate balance at any tilt point
  • Stepless, ultra-smooth pan & tilt fluid drag for ultimate control and stability in film shooting
  • Platform controls conveniently located on the operator's side for easy adjustments
  • One-touch finger-actuated safety release catch for quick and easy platform release
  • Heavy-duty Cine HD 150mm Bowl Tripod, capable of supporting payloads up to 309 lbs. (140 kg)
  • Included OConnor C1221-00015 Floor Spreader to enhance tripod stability and protect delicate floor surfaces

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior stability with this OConnor video tripod, supporting up to 309 lbs!
  • Achieve smooth, professional pans and tilts using the Ultimate 2575D fluid head.
  • Enjoy versatile shooting with a height range from 33.6" to 69.2" on this aluminum tripod.
  • Capture cinematic shots with the Cine HD tripod's precise and fluid movement control.
  • Easily level your setup using the illuminated leveling bubble on the fluid video head.
  • Transport and set up quickly with the included floor spreader for enhanced tripod stability.

What's in the box:

  • Ultimate 2575D Fluid Head
  • Euro-Style Quick Release Platform with Touch & Go Plate
  • Top Half of Telescoping Pan Handle (30 Degree Bend)
  • Bottom Extension of Telescoping Pan Handle
  • Mitchell Base
  • Mitchell Base Tiedown
  • 150mm Ball Base Adapter
  • Tiedown
  • Cine HD Aluminum Alloy Tripod
  • Floor Spreader for Cine HD Tripod
  • OConnor 1 Year Limited Warranty (Extended 1 Year Limited Warranty with Registration)
  • 5 Year Limited Warranty on Tripod
