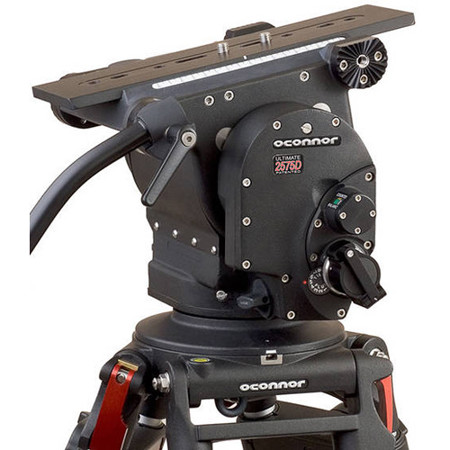

OConnor Ultimate 2575D Fluid Head

SKU: OCULH2575 MFR: C1234-0006
Earn VIP Reward Points

Key Features

  • Achieve smooth pan and tilt camera movements with this professional video head.
  • Supports up to 90 lbs, perfect for cine rigs needing fluid tripod support.
  • Enjoy a solid build for reliability, ideal for demanding film production sets.
  • Features continuously variable fluid drag for ultimate shot control on set.
  • Quick release system allows swift camera changes, saving valuable time.
  • Adjustable counterbalance ensures perfect balance, enhancing camera stability.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

OConnor Ultimate 2575D Fluid Head Specifications

  • Load Capacity

    Up to 90 lb (40.8kg)

  • Diameter/Thread

    Delivered without base and tiedown (to be bought separately)

  • Counter Balance System

    Continuously variable dual-axis sinusoidal

  • Platform

    OConnor Plate, 4.7" (120 mm) Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate, Arri 24" (60.96 cm) Plate

  • Counter Balance Range

    @ 4" (102mm): 0 to 133 lb (60.5kg)
    @ 6" (152mm): 0 to 105 lb (47.7kg)
    @ 8" (203mm): 0 to 87 lb (39.5kg)

  • Center of Gravity

    2 to 18

  • Quick Release/Wedge Plate

    Accepts standard ARRI of Panavision dovetail plate (sold separately)

  • Balance Plate

    Sliding (sold separately)

  • Tilt Drag

    OConnor continuously variable fluid drag

  • Tilt Range

    +/-90 Degree

  • Tilt Lock

    Caliper brake + separate horizontal center lock

  • Pan Range

    360 Degree

  • Pan Lock

    Caliper brake

  • Leveling Bubble/Illuminated

    Illuminated

  • Handles

    30 Degree

  • Temperature Range

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Dimensions (H x W x D)

    8.4 x 12.4 x 8.6" (21.3 x 31.5 x 21.8cm)

  • Weight

    22.9 lb (10.4kg)

  • UPC Code

    5060312087125

About OConnor Ultimate 2575D Fluid Head

The flagship of OConnor's Ultimate range of fluid heads.

With its famous features the 2575 fluid head has become the standard for film production. The head includes OConnor's patented sinusoidal counterbalance system for true, accurate balance at any point in the tilt range. Add to this OConnor's stepless, ultra-smooth pan & tilt fluid drag, and you've got ultimate control and stability for film style shooting.

As the next generation head of the highly successful 2575 series, the 2575D retains a large number of features and functions from the older heads but includes many new features.

Platform controls on the operator's side of the head Platform release lever with a one touch finger actuated safety release catch - allowing for one "finger" or hand action to undo the safety catch and open the lever Dual platform scales Platform with 4 handle rosettes Soft hand rest on left hand side.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth pan and tilt camera movements with this professional video head.
  • Supports up to 90 lbs, perfect for cine rigs needing fluid tripod support.
  • Enjoy a solid build for reliability, ideal for demanding film production sets.
  • Features continuously variable fluid drag for ultimate shot control on set.
  • Quick release system allows swift camera changes, saving valuable time.
  • Adjustable counterbalance ensures perfect balance, enhancing camera stability.

What's in the box:

  • Ultimate 2575D Fluid Head
  • OConnor 1 Year Limited Warranty (Extended 1 Year Limited Warranty with Registration)
