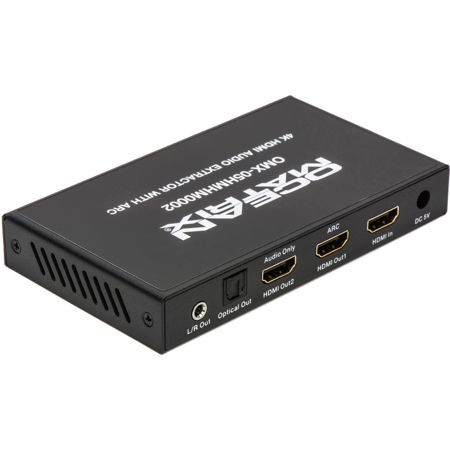

Ocean Matrix Audio Extractor/De-Embedder, 4K HDMI to HDMI Output with ARC & EDID
See all Ocean Matrix items

Ocean Matrix Audio Extractor/De-Embedder, 4K HDMI to Dedicated HDMI Output with ARC & EDID

SKU: OMX05HMHM2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix OMX-05HMHM0002 Specifications

  • Compliance

    HDMI 2.0b, HDCP 2.22 & HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolutions

    Up to 4K2K at 50/60Hz(YUV4:4:4),4K2K at 30Hz,1080P at 120Hz and 1080P 3D at 60Hz

  • Audio Sampling Rate

    Up to 192 kHz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth

    10-bit, 12-bit

  • HDMI Audio Pass-Through Formats

    LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Optical Audio Formats

    LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH

  • L/R Audio Formats

    Analog Stereo 2 CH

  • Inputs

    1- HDMI

  • Outputs

    2- HDMI, 1- L/R 3.5mm Stereo Mini-Jack, 1- Optical Out S/PDIF

  • Power Consumption

    2W

  • Input Power

    AC100-240V 50/60Hz

  • Dimensions

    5.12 x 2.95 x 0.75" (13.00 x 7.49 x 1.91cm)

  • Weight

    8.82 oz (250.04g)

About Ocean Matrix OMX-05HMHM0002

If you're looking to breakout the audio signal from an HDMI signal, the Ocean Matrix OMX-05HMHM0002 HDMI audio extractor is the right tool for the job. The 05HMHM0002 extracts L/R analog RCA audio, TOSLINK optical and HDMI audio from any HDMI source. It includes an HDMI looping output for monitor & TV connection. The Ocean Matrix 05HMHM0002 HDMI extractor features 10-bit HDR pass through and a smart EDID management system to preserve the original video. It supports resolutions up to 4K2K@50/60Hz. The ARC (audio return channel) function allows audio to be sent back from the receiver to the transmitter, eliminating the need for extra audio cables.

Ocean Matrix OMX-05HMHM0002 Features

  • Dedicated HDMI Out for Audio Only with 720p60 Black Screen
  • Smart EDID Management - 2CH, 5.1CH, 7.1CH, OUT1, OUT2
  • Multi-channel Optical (S/PDIF) and L/R Analog Audio Output on 3.5mm Stereo Mini Jack
  • Audio Return Channel (ARC) Function
  • Video Resolutions up to 4K2K at 50/60Hz YUV4:4:4
  • HDMI 10-bit HDR Pass Through
  • Optical Audio Supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • Supports CEC Bypass
  • LED Indicators for EDID Routing & ARC ON/OFF
  • Rugged Metal Enclosure
  • CE, RoHS Certified

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix Audio Extractor/De-Embedder
  • 5V/1A Power Supply
  • Ocean Matrix 1 Year Warranty
