Ocean Matrix 3G SDI-HDMI Multiformat Cross Converter
See all Ocean Matrix items

Ocean Matrix 3G SDI-HDMI Multiformat Cross Converter

SKU: OMX3GCC

This item is no longer available.

Recommended Alternatives

Ocean Matrix OMX-HDMI-CX: Picture 1 regular
Ocean Matrix HDMI Over Coax Transmitter
$265.00$253.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ocean Matrix Converter Specifications

  • Inputs

    1x HDMI
    1x BNC 3G/HD/SD-SDI

  • Outputs

    2x BNC 3G/HD/SD-SDI
    1x HDMI

  • Supported SDI Formats

    3G-SDI:1080P(60/59.94/59/50)
    HD-SDI:1080P(30/29.97/29/25/24)
    1080I(60/59.94/50)
    1080PsF24
    720P(60/59.94/50)
    SD-SDI:576I,480I(60/59.94)

  • Supported HDMI Formats

    1080p(60/59.94/59/50/30/29.97/29/25/24)
    1080I(60/59.94/50)
    1080psf24
    720P(60/59.94/50)
    576I,480I(60/59.94)

  • Resolutions

    SDI: 3G-SDI:1080P(60/59.94/59/50), HDSDI:1080P(30/29.97/29/25/24)/10801(60/59.94/50 ), 1080PsF24/720P(60/59.94/50), SDSDI:576i,480I(60/59.94)
    HDMI:1080P(60/59.94/59/50/30/29.97/29/25/24), 10801(60/59.94/50) 1080psf24, 720P(60/59.94/50), 576i,480i(60/59.94)

  • Power Consumption

    4.2W

  • Input Voltage

    DC 5-24V

  • Connector

    DC 12V

  • Battery Plate

    F970 Battery Plate

  • Working Temperature

    -17 to 55 deg. C (1 to 131 deg. F)

  • Storage Temperature

    -30 to 65 deg. C (-22 to 149 deg. F)

  • Dimensions (LxHxD)

    4.27 x 3.07 x 0.93" (10.85 x 7.80 x 2.36cm)

  • Weight

    8.96 oz (254.01g) with F970 Plate

About Ocean Matrix Converter

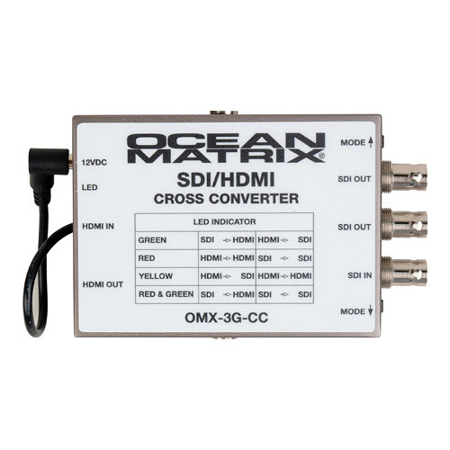

The Ocean Matrix OMX-3G-CC is a unique broadcast quality cross converter perfect for any multiformat field and studio tool kit. Whether you need to convert a 3G-SDI output to feed your HDMI camera top monitor or convert your HDMI feed to match your 3G-SDI production switcher, the OMX-3G-CC is your all-in-one solution.

Supporting a wide range of formats, the unit not only converts 3G/HD/SD-SDI to HDMI or HDMI to 3G/HD/SD-SDI but features dual powering capability and convenient mounting options. The back of the OMX-3G-CC has a built in Sony NP F970 type mounting plate with a power plug tether. So if you're out in the field on a shoot you'll always have an option to power your converter. Simply detach the power tether in place of a standard power supply when standard AC power is available. And its 1/4-20 threaded top and bottom mounting holes mean you can position it wherever it's convenient. For true field reliability, the unit is housed in a super rugged metal shell and has the muscle to send 3G-SDI signals up to 100 meters.

Ocean Matrix Converter Features

  • Enhanced HD Signal Processing Technology
  • SDI Input, 2 SDI Outputs, and 1 HDMI Input, 1 HDMI Output
  • Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M Standards
  • 100 Meter 3G-SDI Transmission on SDI Output
  • Supports wide range input voltage from 5V - 24V
  • Dual Power Capability - DC adapter or Sony NP F970 Lithium Battery
  • Top & Bottom 1/4-20 Threads Convenient Mounting Option
  • Power I/O Status Indicator
  • Super Rugged Housing
  • Embedded Audio Compatible
  • SDI and HDMI Looping Outputs (All Outputs are Active)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 3G SDI-HDMI Multiformat Cross Converter
  • 12V/1.2A Power Adapter
  • F970 Battery Plate
  • Ocean Matrix 1 Year Warranty
