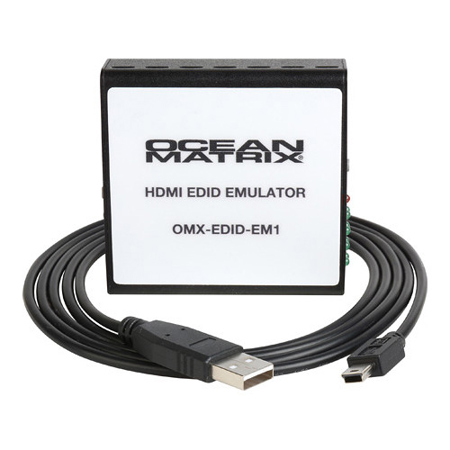

Ocean Matrix HDMI EDID Emulator

Avoid annoying compatibility issues between HDMI sources and displays with the Ocean Matrix OMX-EDID-EM1 EDID emulator. It's a simple inline HDMI in / HDMI out device that allows the adjustment of HDMI/DVI EDID info passed between a display and source gear "syncing" the two to provide a proper video & audio signal. The OMX-EDID-EM1 has a learning function allowing the user to Read and Write the video/audio EDID to the system. In addition, the unit supports EDID Emulation as well as a Bypass mode. Perfect for installations, system integration or for use in testing equipment.

• HDMI and DVI 1.0 compliant
• Supports 8 sets of default EDID
• Supports DVI source with a HDMI to DVI adaptor
• Supports Consumer Electronics Control (CEC) and EDID pass through
• Can be powered through the USB or HDMI input
• Vented Enclosure
• USB Power

The Ocean Matrix OMX-EDID-EM1 emulates EDID information to correct compatibility issues between a video source and a monitor. Designed for AV installation and equipment testing, the unit has an integrated learning function that allows EDID management through read, write, emulator and bypass modes.

Supports the following HDMI Functions
• High video bandwidth up to 300 MHz/9 Gbps
• Resolutions up to 1080p@60 Hz and 4Kx2K@24/25/30 Hz
• 12-bit Deep Color
• LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio (Sampling rates from 32 kHz to 192 kHz)

Four EDID Modes
• Read: Reads the display's EDID information
• Write: Overwrites the display's EDID information (display needs to be able to support overwrite function)
• Emulator: Allows the source device to read the selected EDID information from the unit's default or learned EDID memory
• Bypass: Allows the source device to read the EDID information from the TV/display directly
