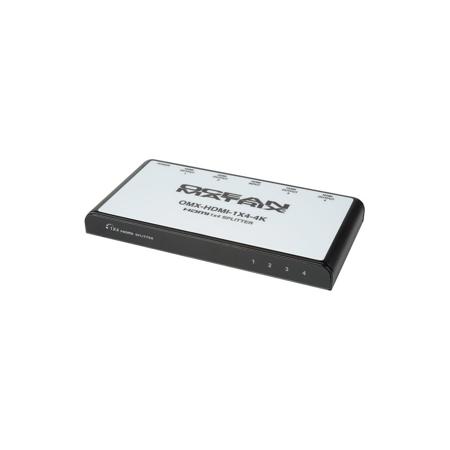

Ocean Matrix 1x4 Splitter 4K HDMI Distribution Amplifier
See all Ocean Matrix items

Ocean Matrix 1x4 Splitter 4K HDMI Distribution Amplifier

SKU: OMXHDMI1X44K
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix OMX-HDMI-1X4-4K Specifications

  • Input

    1x HDMI

  • Outputs

    4x HDMI

  • Supported Resolutions

    480i, 480P, 576i, 576P, 720P, 1080i, 1080P (50/60 Hz); 1080P / 24 Hz 3D, 720P/50 Hz 3D, 720P /60 Hz 3D, 4K x 2K

  • EDID Learning

    Automatic

  • Support

    CEC

  • Cable Lengths Supported

    Up to 98.4' (30.0 m) at the input side and 82' (25 m) at the output side

  • Power Consumption

    5W, Voltage DC 5V

  • Color Format Support

    24 bits/Deep color 30 bits/Deep color 36 bits

  • Max Data Rate

    10.2Gbps

  • TMDS Signal

    0.5-1.5Vp-p

  • DDC Signal

    5Vp-p (TTL)

  • Dimensions

    7.2 x 4.5 x 2.7" / 18.29 x 11.43 x 6.86cm

  • Weight

    1.3lbs / 0.59kg

  • UPC Code

    6955361271894

About Ocean Matrix OMX-HDMI-1X4-4K

A compact 1x4 HDMI distribution amplifier (HDMI Splitter) splits a single HDMI signal from cameras, STB, DVD or Blu-ray to four (4) HDMI displays, projectors and other HDMI enabled devices simultaneously. Distributes signal without loss while maintaining resolutions up to 4K.

Ocean Matrix OMX-HDMI-1X4-4K Features

  • HDMI Splitter: Distributes 1 HDMI source to 4 HDMI displays simultaneously
  • HDMI Splitter + Extender: 30 meters max distance supported for input and 25 meters for output
  • 3D Support: Detects EDID automatically and supports 3D output when both HDMI source and HDMI displays support 3d
  • CEC Support: Supports CEC when both the input and output devices support CEC
  • Ultra-HD Resolution 4K x 2K. Supports 4K x 2K when both the input and output devices support 4K x 2K
  • HDMI Resolution Supported: 480I/480P/576I/576P/720P/1080I/1080P(50HZ; 60HZ); 1080P / 24HZ 3D, 720P/50HZ 3D, 720P /60HZ 3D, 4K X 2K

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 1x4 Splitter 4K HDMI Distribution Amplifier
  • Ocean Matrix 1 Year Parts and Labor Warranty
