Ocean Matrix 4K HDMI 2.0 Audio Extractor and Embedder
See all Ocean Matrix items

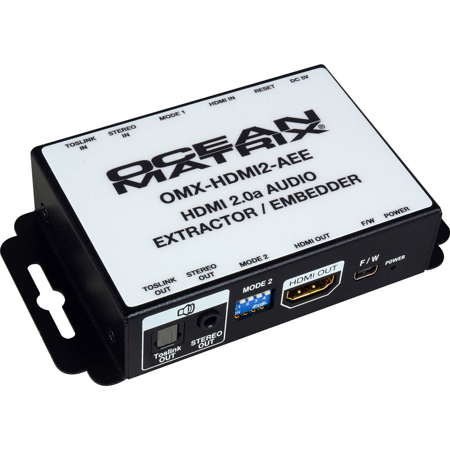

Ocean Matrix 4K HDMI 2.0 Audio Extractor and Embedder

SKU: OMXHDMI2AEE
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix Embedder Specifications

  • Compliance

    HDMI 2.0a and HDCP 2.2

  • Supports

    4K2K at 60 4:4:4 8bits
    HDR 4K2K at 60 4:2:0 10bits
    ARC Audio Extraction & CEC Bypass

  • Transmission Distance

    Full HD resolution 1080p at 60Hz up to 110'/34m

  • Video Bandwidth

    Single Link 594MHz (18Gbps)

  • HDMI Audio Format

    PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1

  • Optical Audio Format

    PCM2, Dolby 5.1

  • Power Consumption

    3W

  • Dimensions (LxWxH)

    5 x 2.6 x 1" (12.70 x 6.60 x 2.54cm)

  • Weight

    6.3 oz (178.60g)

About Ocean Matrix Embedder

The next generation of HDMI Audio Extractors/Embedders from Ocean Matrix, the HDMI2-AEE delivers 18G bandwidth to support the HDMI 2.0 specification. What separates the HDMI2-AEE from the many one-way devices on the market is its dual functionality as both an audio extractor/de-embedder and an audio embedder/inserter.

Audio can be extracted to both L/R analog stereo audio (3.5mm) and S/PDIF digital audio (Toslink). These same outputs are offered on the input side for embedding audio into the HDMI stream making it ideal for presenters. Video support includes HDR 4K2K@60Hz in addition to audio support for PCM2/5, Dolby 5.1/7.1 and DTS 5.1/7.1.

Ocean Matrix Embedder Features

  • Extracts Audio Signals from an HDMI Source
  • Embeds Audio into an HDMI Signal from Analog or Digital Audio Source
  • Supports 4K2K and HDR
  • Supports ARC Audio Extraction and CEC Bypass
  • Toslink S/PDIF and 3.5mm Stereo Inputs and Outputs
  • External Dipswitches Control Embedder & Extractor Functions

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 4K HDMI 2.0 Audio Extractor and Embedder
  • 5VDC/0.85A Power Adapter
  • Ocean Matrix 1 Year Warranty
