Ocean Matrix OMX-HDMI-2-IP HDMI IP Extender/HDMI to CAT5/CAT6,Repaired by Vendor
See all Ocean Matrix items

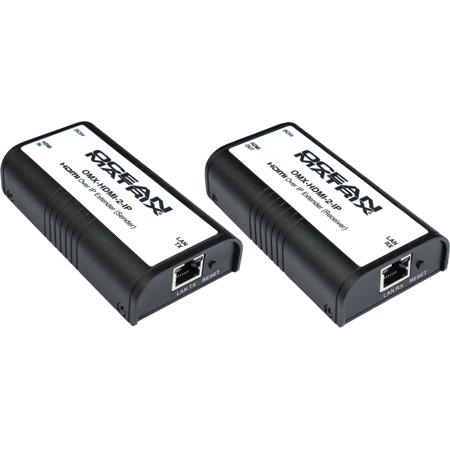

Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender/HDMI to CAT5/CAT6 Converter - Bstock (Repaired by Vendor)

SKU: OMXHDMI2IBS2
(2)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-09-29T10:56:51

Rated 5 out of 5

Excellent HDMI Extender!

This is my 2nd OMX-HDMI-2-IP I ordered, I liked it so much, I needed another one for my 2nd camera. Quality performance and consistent feed. I highly recommend this extender.

PAUL F.

2018-12-15T20:49:58

Rated 1 out of 5

HDMI OVER IP EXTENDER

Does not work. Will be seeking a return authorization

Terry K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix OMX-HDMI-2-IP Specifications

  • HDCP Support

    HDCP1.2

  • Input HDMI resolution

    480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50/60Hz; 1080i@50/60Hz; 1080p@50/60Hz;

  • Output HDMI resolution

    480p@60Hz; 576p@50Hz; 720p@50/60Hz; 1080p@50/60Hz

  • Supported Video Color Formats

    24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color

  • Max transmission rate

    10.2Gbps

  • Network Bandwidth Utilized

    80Mbs

  • Audio signal transmission format

    L/R stereo audio

  • TMDS signal

    0.5 - 1.5Vp-p (TMDS)

  • DDC signal

    5Vp - p (TTL)

  • Input cable length

    16.4' (5m) (AWG26 HDMI1.3 standard cable)

  • Output cable length

    16.4' (5m) (AWG26 HDMI1.3 standard cable)

  • Connector Type

    RJ45

  • Twisted Pair Interface

    Cat5e/6

  • Transmission distance

    Cat6 up to 393.7' (120m) (Cat5e up to 328' (100m))

  • Cabling standards

    TIA/EIA568 B

  • Power Supply

    5VDC/1A

  • Power Consumption

    <3.6W

  • Dimensions (L x W x H)

    4.25 x 2.25 x 1" (10.7 x 5.7 x 2.5cm)

  • Weight

    4.8 oz (136g)

About Ocean Matrix OMX-HDMI-2-IP

Distribute HDMI over your LAN/VLAN network with the Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Converter/Extender. No longer is distance a limitation when sending HDMI. Converts HDMI to standard TCP/IP and transmits the signal over your local area network.

The great advantage of converting HDMI to TCP/IP is that you can now send HDMI over your entire network freeing you of the typical limitations found in send/receive point-to-point systems. The Ocean Matrix OMX-HDMI-2-IP delivers unparalleled performance in PRO-AV projection networks, digital signage systems and educational streaming applications. Now your network is your HDMI network!

The transmitter has a static IP address and can pair with multiple receivers (up to 8). Multiple transmitters and multiple receivers can be paired on the same network.

A VLAN switch is required to operate multiple units (up to 8 transmitter/receiver pairs) with separate IP addresses on the same LAN network.

Note: Unit has been repaired by vendor and is in working condition.

Ocean Matrix OMX-HDMI-2-IP Features

  • Bstock - Unit has been repaired by vendor and is in working condition.
  • Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
  • 36 Bit Deep Color Support
  • May Also be Used as a Standard Point-to-Point (up to 120 meters) Transmit & Receive for On-Location Monitoring & Content Delivery
  • L/R Stereo Audio
  • Transmission Rate Supported:10.2Gbps
  • Robust Aluminum Housing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Bstock - Unit has been repaired by vendor and is in working condition.
  • Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
  • 36 Bit Deep Color Support
  • L/R Stereo Audio
  • Transmission Rate Supported:10.2Gbps
  • Robust Aluminum Housing

What's in the box:

  • HDMI Over IP Sender
  • HDMI Over IP Receiver
  • Two 5VDC/1A Switching Power Supply
  • User Manual
  • Ocean Matrix 90 Day Limited Warranty
