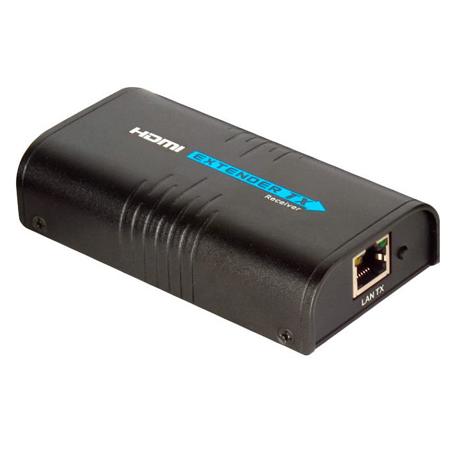

Ocean Matrix HDMI Over IP Receiver

SKU: OMXHDMI2IPR

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ocean Matrix OMX-HDMI-2-IP-R Specifications

  • Compatibility

    OMX-HDMI-2-IP-T Transmitter

  • HDCP Support

    HDCP1.2

  • Input/Output

    1 x RJ45, Cat-5 port
    1 x HDMI, HDMI output

  • Input HDMI resolution

    480i at 60Hz; 480p at 60Hz; 576i at 50Hz; 576p at 50Hz; 720p at 50/60Hz; 1080i at 50/60Hz; 1080p at 50/60Hz;

  • Output HDMI resolution

    480p at 60Hz; 576p at 50Hz; 720p at 50/60Hz; 1080p at 50/60Hz

  • Supported Video Color Formats

    24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color

  • Support audio format

    DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

  • Max transmission rate

    10.2Gbps

  • Audio signal transmission format

    L/R stereo audio

  • TMDS signal

    0.5-1.5Vp-p (TMDS)

  • DDC signal

    5Vp-p(TTL)

  • Input cable length

    5m (AWG26 HDMI1.3 standard cable)

  • Output cable length

    5m (AWG26 HDMI1.3 standard cable)

  • Transmission medium

    Transmission medium

  • Connector Type

    RJ45

  • Twisted Pair Interface

    Cat5e/6

  • Transmission distance

    Cat6 up to 120m (Cat5e up to 100m)

  • Cabling standards

    TIA/EIA568 B

  • Power Supply Voltage range

    DC5V

  • Power comsumption

    <3.6W

  • Bandwidth

    10.2 Gbps (maximum)

  • Dimensions (L x W x H)

    4.25 x 2.25 x 1.0" / 107.95 x 57.15 x 25.40mm

  • Weight

    0.3lbs / 0.14kg

About Ocean Matrix OMX-HDMI-2-IP-R

Stream HDMI over your entire network with the Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Converter/Extender. No longer is distance a limitation when sending HDMI. Converts HDMI to standard TCP/IP and transmits the signal over your local area network. The great advantage of converting HDMI to TCP/IP is that you can now send HDMI over your entire network freeing you of the typical limitations found in send/receive point-to-point systems. The Ocean Matrix OMX-HDMI-2-IP delivers unparalleled performance in PRO-AV projection networks, digital signage systems and educational streaming applications. Now your network is your HDMI network!

The transmitter has a static IP address and can pair with multiple receivers (up to 8). Multiple transmitters and multiple receivers can be paired on the same network. A VLAN switch is required to operate multiple units (up to 8 transmitter/receiver pairs) with separate IP addresses on the same LAN network.

Ocean Matrix OMX-HDMI-2-IP-R Features

  • Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
  • 36 Bit Deep Color Support
  • May Also be Used as a Standard Point-to-Point (up to 120 meters) Transmit & Receive for On-Location Monitoring & Content Delivery
  • Supports DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD Audio Formats
  • Transmission Rate Supported: 10.2Gbps
  • Robust Aluminum Housing

What's in the box:

  • Ocean Matrix HDMI Over IP Transmitter
  • 2x 5.0V AC/DC Switching Power Supply
  • Ocean Matrix 1 Year Parts and Labor Warranty
