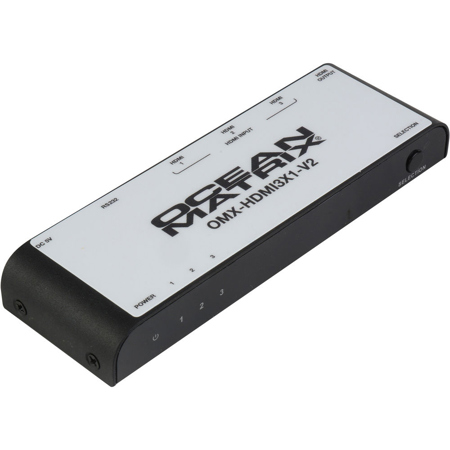

Ocean Matrix 4K/UHD 3x1 HDMI 2.0 Switcher with Remote Control
See all Ocean Matrix items

Ocean Matrix 4K/UHD 3x1 HDMI 2.0 Switcher with Remote Control

SKU: OMXHDMI3X1V2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix Switcher Specifications

  • Input/Output

    3 HDMI Inputs, 1 HDMI Output

  • Compatibility

    DVI1.0, HDMI1.4, HDMI2.0
    HDCP1.4, HDCP2.2

  • Frequency Range

    25MHz-600MHz

  • Video Form

    12 Bit Full HD
    3D Video
    4Kx2K at 30/60HZ UHD

  • TMDS Signal

    0.5-1.5Vp-p(TMDS)

  • DDC Signal

    5Vp-p(TTL)

  • Audio

    Standard
    DSD (Direct Stream Digital)
    HD(HBR)

  • HDMI Resolution

    480i/480p/756i/756p/720p/1080i/1080p/4Kx2K at 24/25/30/60Hz

  • RS232 Serial Port

    Baud Rate: 9600bps

  • Power Supply

    5VDC/1A

  • Power Consumption

    5W

  • Dimensions (LxWxH)

    3.8 x 2.3 x 0.66" (9.65 x 5.84 x 1.68cm)

  • Weight

    3.2 oz (90.72g)

About Ocean Matrix Switcher

The simple solution for switching between three different 4K UHD HDMI sources is the Ocean Matrix OMX-HDMI3X1-V2. Front panel, handheld remote or RS232 control or allow you to select between three sources and route 4K signal to a single display, projection system, digital signage system or HDMI extender. The unit supports resolutions up to 4Kx2K (4096 x 2160) from cameras, digital signage players, gaming consoles, set top boxes, Blu-Ray players and more. HDMI source selection can be controlled by the included remote or by the RS232 serial port on the switcher. The OMX-HDMI-3X1-V2 accommodates bandwidth up to 18Gbps, has a baud rate of 9600bps and handles standard audio, Direct Stream Digital and HD(HBR). It also supports HDMI 2.0 standards as well as HDCP 2.2.

Ocean Matrix Switcher Features

  • Supports HDMI resolution up to 4K x 2K at 60HZ and HDMI 3D
  • Input signal can be switched by remote control
  • Supports bandwidth up to 18Gpbs
  • RS232 serial port, baud rate 9600bps

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 4K/UHD 3x1 HDMI 2.0 Switcher
  • Remote Control
  • 5VDC/1A Power Supply
  • Ocean Matrix 1 Year Warranty
