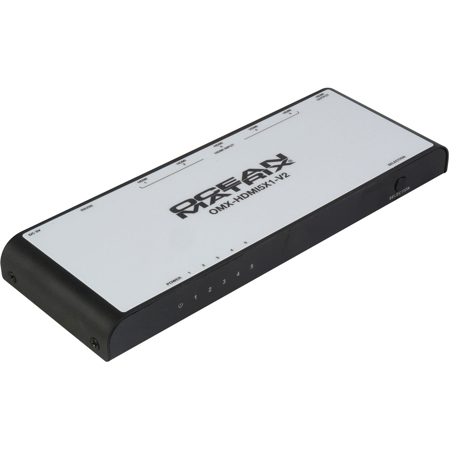

Ocean Matrix 4K/UHD 5x1 HDMI 2.0 Switcher with RS-232 Control
See all Ocean Matrix items

Ocean Matrix 4K/UHD 5x1 HDMI 2.0 Switcher with RS-232 Control

SKU: OMXHDMI5X1V2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix Switcher Specifications

  • Input/Output

    5 HDMI Inputs, 1 HDMI Output

  • Compatibility

    DVI1.0, HDMI1.4, HDMI2.0
    HDCP1.4, HDCP2.2

  • Frequency Range

    25MHz-600MHz

  • Video Form

    12 Bit Full HD
    3D Video
    4Kx2K at 30/60HZ UHD

  • TMDS Signal

    0.5-1.5Vp-p(TMDS)

  • DDC Signal

    5Vp-p(TTL)

  • Audio

    Standard
    DSD (Direct Stream Digital)
    HD(HBR)

  • HDMI Resolution

    480i/480p/756i/756p/720p/1080i/1080p/4Kx2K at 24/25/30/60Hz

  • RS232 Serial Port

    Baud Rate: 9600bps

  • Power Supply

    5VDC/1A

  • Power Consumption

    5W

  • Dimensions (LxWxH)

    3.8 x 2.3 x 0.66" (9.65 x 5.84 x 1.68cm)

  • Weight

    3.2 oz (90.72g)

About Ocean Matrix Switcher

Need fast and simple selection between multiple 4K HDMI sources? The Ocean Matrix OMX-HDMI-5X1-V2 is a 5 input HDMI switcher that supports multiple resolutions and formats and includes RS232 control for professional environments! Choose between 5 (five) HDMI devices and route signals to a single HDMI display, projector or digital signage system while supporting full 12 bit HD video, HDMI 3D and resolutions up to 4Kx2K@60Hz Ultra-HD!

HDMI source selection can be controlled by the included remote or by the RS232 serial port on the switcher. The OMX-HDMI-5X1-V2 accommodates bandwidth up to 18Gbps, has a baud rate of 9600bps and handles standard audio, Direct Stream Digital and HD(HBR). It also supports HDMI 2.0 standards as well as HDCP 2.2.

Ocean Matrix Switcher Features

  • Supports HDMI resolution up to 4K x 2K at 60HZ and HDMI 3D
  • Input signal can be switched by remote control
  • Supports bandwidth up to 18Gpbs
  • RS232 serial port, baud rate 9600bps

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 4K/UHD 5x1 HDMI 2.0 Switcher with RS-232 Control
  • 5VDC/1A Power Supply
  • Ocean Matrix 1 Year Warranty
