Ocean Matrix OMX-HDMI-CAT6 Specifications

  • Support Resolution

    480i at 60Hz, 480p at 60Hz, 576i at 50Hz, 576p at 50Hz, 720p at 50/60Hz, 1080i at 50/60Hz, 1080p at 50/60Hz

  • Network Cable

    Low resistance and consumption oxygen-free copper core UTP or STP

  • Transmission Range

    1080p resolution up to 197 feet (60m)

  • IR Remote Control

    Supports 20~60KHz standard IR remote controls

  • Power Supply

    5VDC/1A

  • Power Consumption

    Transmitter 3W, Receiver 2W

  • Dimensions (L x W x H)

    2.82 x 2.62 x 0.97" / 71.63 x 66.55 x 24.64mm (per unit)

  • Weight

    Transmitter: 2.93lbs / 1.33kg
    Receiver: 2.84lbs / 1.29kg

  • UPC Code

    6955361237753

About Ocean Matrix OMX-HDMI-CAT6

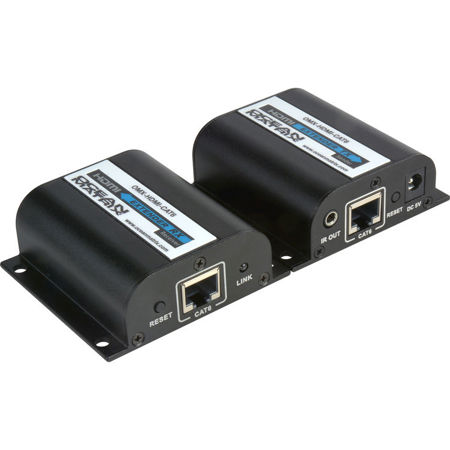

The Ocean Matrix OMX-HDMI-CAT6 extends HDMI based high definition video/audio beyond the standard distances of HDMI cable and its inherent limitations. Consisting of a transmitter and a receiver, this system delivers full 1080P HDMI signal up to 197 feet over a single CAT6 network cable. The system fully supports 1080p resolutions as well as IR control over the same cable run. The transmitter features a built-in HDMI loop-out for local display and monitoring. IR signal transmission allows for remote control of the source at a secondary location with two IR extension cables (included).Ideal for projections screens, home theatre, outdoor advertising, remote conferencing, CCTV, high-end security and remote HD monitoring.

Ocean Matrix OMX-HDMI-CAT6 Features

  • Supports 1080p HDMI resolution
  • Transmits over a single CAT6 up to 197 feet
  • Local HDMI loop-out on transmitter
  • IR signal transmission support
  • Works with HDMI HDCP compliant devices

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 1080p HDMI Transmitter
  • 1080p HDMI Receiver
  • 2x 5VDC Power Adapters
  • IR Blaster Extension Cable 3.28' (1m)
  • IR Receiver Extension Cable 3.28' (1m)
  • Ocean Matrix 1 Year Parts and Labor Warranty
