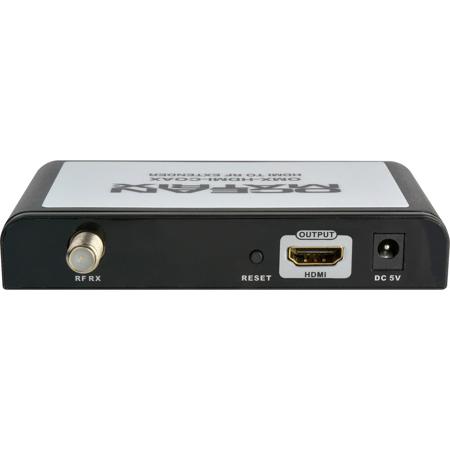

Ocean Matrix HDMI Over Coax Receiver
See all Ocean Matrix items

Ocean Matrix HDMI Over Coax Receiver

SKU: OMXHDMICXR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix OMX-HDMI-CX Specifications

  • Channels

    99 Selectable Channels

  • Outputs

    RX - HDMI Output

  • Input and Output

    480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576P at 50Hz, 720P at 50/60Hz, 1080i at 50/60Hz,1080P at 50/60Hz

  • HDMI Graphics Resolution

    Supports up to 1920x1080 at 60Hz

  • Video Encoding

    H.264

  • Audio Encoding

    MPEG2

  • Coaxial Cable

    RG6, RG7, RG11, etc

  • Frequency Point

    100-1000M

  • Bit Rate

    Max 31.6M bits

  • Insertion Loss

    <2dBm

  • RF Connector

    Imperial System 75 O Type F

  • Transmission Delay

    500ms

  • Power Consumption

    TX <3.5W, RX <3W

  • Dimensions (L x W x H)

    5.12 x 2.68 x 0.945" / 130.05 x 68.07 x 24.00mm

About Ocean Matrix OMX-HDMI-CX

The OMX-HDMI-CX-R HDMI extender converts HDMI signals to HD digital TV signals using DVB-T CATV transmission mode. Unlike traditional analog CATV signal, this extender uses 64 QAM mode to convert the signal and transmits via coaxial cables for long distances. Using a CATV splitter, you can easily create a one to multiple or a multiple to multiple matrix. Short cable runs may require an attenuator, please refer to product manual for specifics. Excellent image quality, high interference resistance and many available channels, make it ideal for total home CCTV, digital signage, shopping mall advertising and digital KVM.

Ocean Matrix OMX-HDMI-CX Features

  • Full 1080P HD
  • Resolution: supports up to 1920x1080 at 60Hz
  • 99 Selectable Channels - allows multiple units on the same coax!

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix HDMI Over Coax Receiver
  • RF to HDMI Receiver (RX)
  • Power Supply
  • Ocean Matrix 1 Year Parts and Labor Warranty
