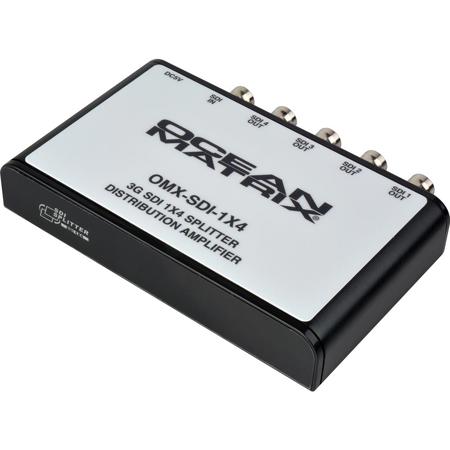

Ocean Matrix 3G SDI 1x4 Splitter/Distribution Amplifier
See all Ocean Matrix items

Ocean Matrix 3G SDI 1x4 Splitter/Distribution Amplifier

SKU: OMXSDI1X4
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ocean Matrix OMX-SDI-1X4 Specifications

  • Input/Output

    1 x SDI input
    4 x SDI outputs

  • Supported Resolutions

    SDI: 480i/720p/1080i at 60 Hz
    576i/720p/1080i at 50 Hz
    1080p at 24/25/30/50/60 Hz

  • Supported Signals

    SD-SDI: 270 Mb/s
    HD-SDI: 1.485 Gb/s
    3G-SDI: 2.97 Gb/s

  • Maximum Transmission Distance

    SD-SDI: 1312.3' (400.0 m)
    HD-SDI: 656.2' (200.0 m)
    3G-SDI: 328.1' (100.0 m)

  • Power Requirements

    5 to 30 VDC, 5 VDC power supply with 2.1 mm plug (center pin hot)

  • Dimensions (H x L x D)

    0.5 x 4.0 x 2.7" / 1.27 x 10.16 x 6.86cm

  • Weight

    1.0lbs / 0.45kg

  • UPC Code

    6955361206148

About Ocean Matrix OMX-SDI-1X4

Drive four (4) displays or recorders simultaneously with the Ocean Matrix 3G-SDI 1x4 splitter/DA. The OMX-SDI-1X4 accepts a single 3G-SDI input and reclocks and equalizes the signal to 4 identical outputs for real-time multi-viewing, video distribution and additional monitoring feeds. The 4 outputs of the OMX-SDI-1X4 all support SD-SDI(270Mbps), HD-SDI(1.485Gbps)and 3G-SDI(2.97Gbps) to cover all of your video format distribution needs. The unit can drive output distances of up to 400 meters for SD-SDI signals, 200 meters for HD-SDI signal and 100 meters for 3G-SDI signal.

Ocean Matrix OMX-SDI-1X4 Features

  • Supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI(2.97Gbps)
  • 4 simultaneous SDI outputs
  • Equalized & re-clocked transmission and support signal input
  • Output distances of up to 400 meters for SD-SDI, 200 meters for HD-SDI and 100 meters for 3G-SDI signal
  • DC5V-30V Voltage Input - great for field applications
  • SDI Signal Auto-Detect
  • SDI input/output: 480i/720p/1080i at 60Hz, 576i/720p/1080i at 50Hz, 1080p at 24/25/30/50/60Hz
  • 5V Power Supply with 2.1mm Plug (center pin hot)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 3G SDI 1x4 Splitter/Distribution Amplifier
  • 5V Power Supply
  • User Manual
  • Ocean Matrix 1 Year Parts and Labor Warranty
