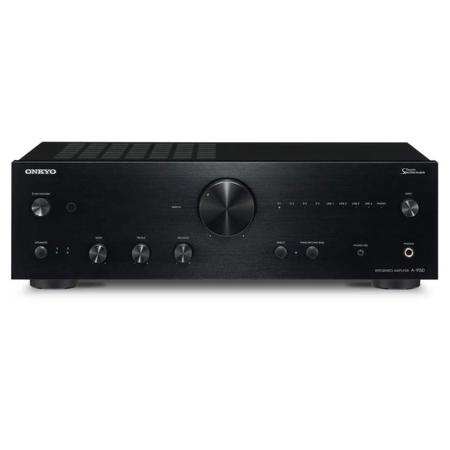

Onkyo A-9150 2-Channel 120W Home Theater Power Amplifier

SKU: ONA9150

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : how much power at 8 ohms?
Shopper : Refurb or new?
Troy N : Will this work with onkyo tx me 7100?

Reviews about this item

Review Summary

2023-02-07T06:07:54

Rated 5 out of 5

Beats all expectations!

I was so impressed with the first one I bought another! For the price, this is the only audiophile level amp on the market. The first one is driving 2 sets of speakers but not at the same time.... set one are vintage JBL L50 speakers and they have never sounded so "open and transparent". These are 8 ohm loads so the 9150 has no trouble driving to levels I prefer. Just barely warm after a couple of hours which indicates to me that all is well! The second set are also vintage Acoustic Research AR9lsi towers which are a challenging load at 4 ohms for any amp. 9150 again performs way past my best expectation with warm, tight, and deep bass frequencies that make you melt. Also open and transparent with a huge and deep sound stage. I forgot how impressive a 2 channel system is with the right equipment. The just received #2 9150 is burring in at this moment. Currently using as a pre-amp to the infamous Onkyo M-5030. Driving a set of Infinity bookshelf's with a sub for the really deep end. These are 6 ohm loads. Placement on final on this system as I'm having fun experimenting. I have McIntosh, dbx, Sony, and several other power amps usually driven with Sony ES or Onkyo pre-amps but I'm happy to say the 9150 holds it's on against these heavy hitters. About the DAC in the 9150.... worth the price of the amp for the DAC alone. You have to hear it to believe it. The warmth of the sound is equal to or better than my Marantz 2275 (analog) which was bought in 1977. Lastly, Adorama filled the order quickly and shipped to my door is record time (UPS was delayed by weather) so Kudos to them! I've read the 9150 has been discontinued, hope not but either way I'll be enjoying mine for years to come. Just buy it!

BILL V.

2021-09-26T01:34:43

Rated 5 out of 5

A high-current amp at a low price

My main amp went out and I replaced it temporarily with an Onkyo receiver (TX-8020; 50 watts). I was really impressed with its sound?for the price?and I thought a dedicated Onkyo amp might sound even better. This one really does. The receiver already had good bass punch, and this adds extra weight too. Overall, the sound is more full-bodied, rounded, and smoother, and less distorted in the treble. The amp is not really any more detailed than the receiver, but it's a high-current amp, with a very heavy transformer and big capacitors, and that means more color, texture, depth, and body. Onkyo has focused on key elements that create high-end sound and brought them together here at a low price. The receiver gave me the clear outlines of the music; this amp fills them in and puts flesh on the bones. The emphasis is on sound quality, not features, but I'm extremely happy that it does include balance and tone controls. Sometimes, listening to really old recordings, or listening at low volume, those tone controls help dial in the right sound, and I think all integrated amps should include them. Don't use the supplied power cord. An audiophile cord will sound cleaner and smoother. The internal DAC seems fairly good, given the overall price of this package, and it mates well with the amp. But a state-of-the-art DAC like the Topping D90SE (about the same price as this amp) will definitely raise the listening experience further and show what the amp can do. For that matter, you can easily pair this amp with more expensive speakers too and get a taste of high-end sound. Before break-in, the A-9150 may sound dull and thick, but after 20-40 hours it gets more focused and detailed. I am really glad I got this. Since it's been out for several years now it may not be available much longer. Word to the wise.

William D.

2021-04-29T07:22:48

Rated 4 out of 5

Great amp

I have had this amp since it came out. I purchased it for the pre amplifier section as it has great features and technology. I run Beyerdynamic Amiron home headphones from it. It runs my Dynaudio audience 52 speakers without problem in near field listening .{ Dynaudio recommends 64 watts for a small room] In larger areas I run thru Onkyo m502 power amp. I use a Rega dac between my imac and the 9150. The dac in the 9150 is very good and I use the onkyo dac with the headphones as I find the Amirons are a slight bit warm as is the Rega dac. We are talking about a subtle difference. stream Qobuz,and I use my imac large alac lossless library as well as cds . I would give this amp 5 stars if it had more power even though 60 watts into 4 ohms should be enough for most people. The m502 amp puts out 220 watts into 4 ohms and does open the speakers up a bit. The Dynaudio are known to need more power and other speakers might be easier to drive. I would recommend the a9150 with out hesitation to all.

William-Karl S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Onkyo A-9150 Specifications

Amplifier

Amplifier

Jump to...
  • Power Output

    60 W per channel @ 4 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC

  • THD & Noise

    0.08% (20 Hz to 20 kHz, rated power)

  • Inputs

    2x optical TOSLINK
    2x digital coaxial
    5x stereo RCA
    1x stereo RCA phono with ground screw

  • Outputs

    1x stereo RCA line out
    1x stereo RCA pre-out
    1x 1/4" (6.35mm) headphone (front)

  • Other Connectors

    1x 1/8" (3.5mm) RI remote

  • Speaker Connectors

    4x binding post pairs (A + B)

  • Input Sensitivity and Impedance

    Line: 220 mV / 220 kOhms
    Phono MM: 4 mV / 47 kOhms
    Phono MC: 0.4 mV / 120 Ohms

  • Output Level and Impedance

    RC: 0.2 V / 2.3 kOhms (Line Out)
    Phono Overload (MM): 70 mV / 1 kHz, 0.5%
    Phono Overload (MC): 7 mV / 1 kHz, 0.5%

  • Frequency Response

    10 Hz to 100 kHz +1 dB / -3 dB (Line 1, Direct)

  • Tone Control

    Bass: +/-10 dB (100 Hz)
    Treble: +/-10 dB (10 kHz)

  • Signal to Noise Ratio

    Line 1, IHF-A: 107 dB
    Phono MM, IHF-A: 82 dB
    Phono MC, IHF-A: 73 dB

  • Speaker Impedance

    A or B: 4 to 16 Ohms
    A + B: 8 to 16 Ohms

General

Jump to...
  • Power Supply

    120 VAC, 60 Hz

  • Power Consumption

    Active: 170 W
    Powered, No Sound: 35 W
    Standby: 0.15 W

  • Dimensions (W x H x D)

    17.1 x 5.5 x 13.1" (435 x 139 x 331mm)

  • Weight

    20.3 lb (9.2kg)

  • UPC Code

    889951000990

About Onkyo A-9150

FEATURED REVIEWS

Beats all expectations!

By BILL V.

I was so impressed with the first one I bought another! For the price, this is the only audiophile level amp on the market. The first one is driving 2 sets of speakers but not at the same time.... set one are vintage JBL L50 speakers and they have never sounded so "open and transparent". These are 8 ohm loads so the 9150 has no trouble driving to levels I prefer. Just barely warm after a couple of hours which indicates to me that all is well! The second set are also vintage Acoustic Research ...

View full Review

A high-current amp at a low price

By William D.

My main amp went out and I replaced it temporarily with an Onkyo receiver (TX-8020; 50 watts). I was really impressed with its sound?for the price?and I thought a dedicated Onkyo amp might sound even better. This one really does. The receiver already had good bass punch, and this adds extra weight too. Overall, the sound is more full-bodied, rounded, and smoother, and less distorted in the treble. The amp is not really any more detailed than the receiver, but it's a high-current amp, with a v...

View full Review

Integrated Stereo Amplifier
Take Music Further with True Fidelity

Building on acclaim for the award-winning A-9010, Onkyo again raises the bar for musicality in the entry class with its A-9150 Integrated Stereo Amplifier. Unique technologies coalesce around a refined amplification system to deliver outstanding transient response, superb dynamics, lifelike soundstaging, and nuanced articulation of your favorite analog or digital music.

Key to this sense of realism is Discrete SpectraModule, which boasts a slew rate of more than 500 V/micros for flat linearity up to megahertz bandwidth. Rediscover the vitality of analog with MM/MC phono input served by dedicated equalizers on a separate circuit board, with custom head-amp operating in discrete configuration for MC signals.

Listeners with big CD libraries will discover new life in the format with AKM's premium 768 kHz/32-bit DAC (AK4452) enhanced by DIDRC Filter, an original circuit technology that cleanses signals of high-frequency noise. Backed by 70 years' experience in hi-fi design, the A-9150 invites you inside the energy of every musical performance.

Refined Power Amplification
In order to deliver a clear and comfortable audio image, it's vital that sounds of different frequencies arrive at the listening position simultaneously.

Power amplification circuits feature original topology that's carefully tuned for phase accuracy, wide-spectrum signal reproduction, and natural transient response.

Fitted with hand-selected audio-grade parts, the amplifier contributes to lifelike and involving sound quality.

Nuanced Musicality Delivered with Discrete SpectraModule
Discrete SpectraModule boasts a slew rate of over 500 V/micros, significantly higher than competitive products that use a standard IC chip.

High-voltage performance enables flat linearity into the megahertz range for full-bandwidth signal reproduction. This is important not only for natural transients expressing the nuances in music with freshness and vitality, but also for accurate definition of instruments ranged around a larger and more realistic soundstage.

Dedicated MM/MC Phono Circuit Board
The A-9150 makes your records sound better than ever. A gold-plated phono input supports signals from either MM or MC cartridges fitted to your choice of turntable.

Separate phono circuit board has dedicated equalizers served by a top-quality customized head amp, which operates in discrete configuration for MC signals. Together with analog power amplification, this high-grade phono input design expresses the depth and vitality of music on vinyl.

Customized High-Current Transformer and Custom Audio-Grade Capacitors
Current has great influence on sound quality. High current is required for a better grip on the speaker transducers, improving control and accuracy.

A customized high-output transformer and two huge custom capacitors inside the A-9150 deliver current through discrete output-stage transistors that are kept cool by an aluminum heat sink.

Speakers react instantly, with throw-range precisely controlled for accurate articulation even through dynamic and complex musical passages.

DIDRC Filter and Hi-Grade DAC for Natural Sound
Distortion in the ultra-high-frequency spectrum can have a noticeable impact on the character of audible sound. Even the best D/A converters introduce some noise to the signal, and that noise is amplified, distorting the sound you hear.

DIDRC Filter completely erases ultra-high-frequency noise. Performance is optimized for digital music with an undistorted frequency response extending far above the range of audibility.

Combined with a premium 768 kHz/32-bit DAC, you can enjoy a greater sense of realism from digital sources, with none of the unnatural "synthesized" feeling sometimes produced by digital processing.

Solid Build with High-grade Terminals
A peek under the hood tells you what to expect from the A-9150. Held in place by a flat chassis that tames resonance, the digital audio board is isolated from the analog circuitry.

L/R channels are symmetrical to equalize signal path-lengths and minimize stereo playback errors. Coaxial digital inputs, phono input, speaker posts, and RCA line inputs are gold-plated and of excellent quality.

Finished with an aluminum front panel and volume control, the A-9150 presents as a component built to last.

Onkyo A-9150 Features

  • A-9150 Features:
  • Refined Power Amplification Circuitry with Discrete SpectraModule
  • Dedicated MM/MC Circuit Board and High Quality Discrete Head Amp
  • Natural Music Reproduction with Hi-Grade DAC and DIDRC Filter
  • Robust Flat Chassis
  • Quality Audio Terminals
  • Advanced Features:
  • 60 W/Ch (4 Ohm, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, IEC)
  • Discrete SpectraModule Produces High Instantaneous Voltage for Immersive Soundstaging, Improved Instrument Separation, and Lively Transient Response
  • DIDRC Filter Prevents Ultra-high-frequency Distortion Affecting Audible Sound
  • High Current Power Supply Transformer and Two Hi-Grade Customized Capacitors
  • High-Current Low-Impedance Drive for Enhanced Speaker Control
  • Optimum Gain Volume Control Circuitry Isolates Signal from Noise Floor to Prevent Distortion at Lower Volume
  • Symmetrical L/R Channel Layout with Equal Signal-path Lengths to Minimize Stereo Playback Errors
  • Isolated Processing, Pre-amplification, and Power Amplification Circuitry Reduces Electrical Interference on Audio Signal
  • Large Extruded Aluminum Heat Sink
  • AKM (AK4452) 768 kHz/32-bit Digital-to-Analog Converter
  • Direct Mode for Reproduction Faithful to Original Source
  • Front-panel A/B Speaker Drive Selector
  • Available in Black or Silver Finish
  • Inputs and Connections Features:
  • 4x Gold-plated Analog RCA Audio Inputs (Rear)
  • 2x Optical Digital Inputs (192 kHz/24-bit Capable)
  • 2x Gold-plated Coaxial Digital Audio Inputs (192 kHz/24-bit Capable)
  • 2x Pairs of Gold-plated Speaker Posts (A+B)
  • Gold-plated Phono Input (MM/MC) to Suit Any Turntable
  • 6.3mm Headphone Jack
  • Gold-plated Main Input
  • Gold-plated Pre Out
  • RI (Remote Interactive) Remote Control Input
  • Additional Features:
  • Tone Controls (Bass/Treble/Balance)
  • Aluminum Front Panel and Aluminum Volume Control Knob
  • Rigid Steel Chassis to Reduce Resonance
  • Stable Isolator Feet Minimize Vibration-borne Interference
  • Efficient 0.2 W Power Consumption on Standby
  • Full-sized and Full-function RI Remote Control

Key Features

  • Refined Power Amplification Circuitry with Discrete SpectraModule
  • Dedicated MM/MC Circuit Board and High Quality Discrete Head Amp
  • Natural Music Reproduction with Hi-Grade DAC and DIDRC Filter
  • Robust Flat Chassis
  • Quality Audio Terminals
  • Advanced Highlights:

What's in the box:

  • A-9150 2-Channel 120W Home Theater Power Amplifier
  • Remote Control
  • 2x AAA Batteries (R03)
  • 5.9' AC Power Cord
  • Instruction Manual
  • Onkyo 2 Year Limited Warranty
