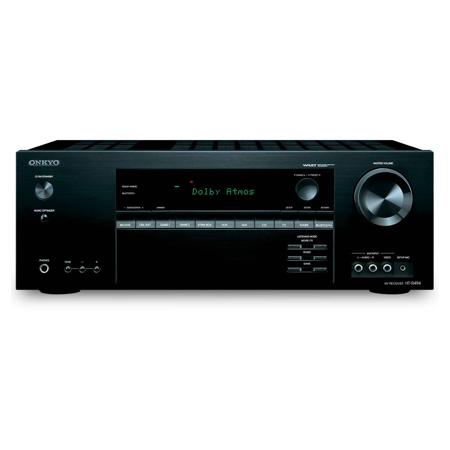

Onkyo HT-S5910 5.1.2-Channel Dolby Atmos Home Theater System

SKU: ONHTS5910

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Onkyo HT-S5910 Specifications

System
  • Channels

    5.1.2

  • Total System Power

    925W

  • Subwoofer Power

    120W

  • Power

    115 W/ch x 7 ch (6 ohms, 1kHz, 0.9% THD, 1 Ch Driven, FTC)/Ch

  • All Discrete Amplifier Circuitry

    Yes

Processing

Jump to...
  • Dolby Atmos Ready

    Yes

  • 32-Bit Digital Signal Processing Engine

    Yes

  • Dolby Decoder

    Atmos, TrueHD, DD Plus

  • DTS Decoder

    DTS-HD Master Audio, HD-High Resolution Audio, NEO:6

  • ONKYO GAME Surround Modes

    Yes

  • AccuEQ

    Yes

  • Advanced Music Optimizer

    Yes (Bluetooth Included)

  • Phase-Matching Bass Boost

    Yes (for Deep Bass and Clear Mid-Range)

  • 192K/24 Bit DACs

    Yes (Burr-Brown)

  • Bluetooth

    Yes (Built-in)

Connectivity

Jump to...
  • Audio I/O

    7 / 0

  • Digital Audio IN (OPT/COAX)

    2 / 1

  • Composite I/O

    3 / 0

  • USB Input

    Yes (Rear)

  • Component Video I/O

    2 / 0

  • HDMI I/O

    4 / 1

  • HDMI

    2.0 4K/60 Hz- Capable HDMI Terminals
    Support for 3D, Audio Return Channel and CEC
    Support for Deep Color, x.v.Color, LipSync
    Support for DVD-Audio, SACD, Multichannel PCM

  • HDCP 2.2 Copy-Protection Compatibility

    Yes

InstaPrevue Input Source Prevue

Jump to...
  • Analog To HDMI UpConversion

    Yes (from 480i/576i)

  • 4K Passthrough

    Yes

  • Streaming Audio From USB memory

    Yes

Speaker

Jump to...
  • Front / Height Speakers

    2-Way Bass Reflex / Dolby Atmos Enabled Full Range, Acoustic Suspension

  • Center Speaker

    2-Way Bass Reflex

  • Surround Speaker

    Full-Range, Acoustic Suspension

  • Subwoofer

    Bass Reflex, Powered

  • Cabinet Type

    Cabinet Type

Miscellaneous

Jump to...
  • Pre-Pro/Learning Remote

    Yes / -

  • On Screen Remote Programming

    Yes

  • Auto Speaker Calibration W/Mic.

    Yes (AccuEQ)

  • OSD Out

    Yes

Amplifier

Jump to...
  • All Channels

    115 W/Channel (6 Ohms, 1 kHz, 0.9%, 1 Channel Driven, FTC)

  • Dynamic Power (front)

    160 W (3 Ohms) 125 W (4 Ohms) 85 W (8 Ohms)

  • Total Harmonic Distortion + Noise

    0.08% (20Hz-20kHz, half power)

  • Damping Factor

    60 (Front, 1 kHz, 8 Ohms)

  • Input Sensitivity and Impedance

    200 mV/47 k-ohms (Line)

  • Rated RCA Output Level and Impedance

    200 mV/470 Ohms (Subwoofer Pre Out)

  • Maximum RCA Output Level and Impedance

    2 V/470 Ohms (Subwoofer Pre Out)

  • Frequency Response

    10 Hz-100 kHz/ +1 dB, -3 dB (Direct mode)

  • Tone Control

    +/-10 dB, 20 Hz (Bass) +/-10 dB, 20 kHz (Treble)

  • Signal-to-Noise Ratio

    100 dB (Line, IHF-A)

  • Speaker Impedance

    6 Ohms-16 Ohms

  • Video

    1.0 Vp-p/75 Ohms (Component Y) 0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 Ohms (Composite)

  • Component Video Frequency Response

    5 Hz-13.5 MHz (+ 0dB / -3 dB)

  • FM

    87.5 MHz-107.9 MHz

  • AM

    530 kHz-1,710 kHz

  • FM/AM Preset Memory

    40 Stations

Speaker - Type

Jump to...
  • Front/Center

    2-Way Bass Reflex

  • Height

    3 1/4" (8cm) Cone

  • Surround

    80 Hz-20 kHz

  • Subwoofer

    10" (25cm) Cone

  • Front

    5" (12cm) Cone Woofer 1" (2.5cm) Balanced-Dome Tweeter

  • Center

    3 1/4" (8cm) Cone Woofer x2

Speaker - Frequency Response

Jump to...
  • Front

    55 Hz-50 kHz

  • Height

    80 Hz-20 kHz

  • Center

    65 Hz-50 kHz

  • Subwoofer

    25 Hz-150 Hz

General

Jump to...
  • Power Supply

    AC 120 V, 60 Hz

  • Power Consumption

    4.3 A

  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

  • Dimensions

    17.12 x 6.29 x 12.91" (435 x 160 x 328mm)

  • Weight

    17.2 lbs (7.8 kg)

  • UPC Code

    889951002901

About Onkyo HT-S5910

Bring the cinematic experience right into your living room with the HT-S5910 5.1.2-Channel Dolby Atmos Home Theater System. This advanced audio system supports Dolby Atmos up to 5.1.2 channels, enveloping you in sound from all directions, including overhead, for an immersive and captivating audio experience.

The Dolby Atmos technology combines a channel-based audio bed with object-oriented sound, allowing sound designers to place and move specific effects around the room. This creates a breathtakingly realistic sonic atmosphere that enhances your home theater entertainment.

For content not mixed for Dolby Atmos, the system features a new Dolby surround up-mixer. This innovative feature expands your current channel-based content to fill the flexible speaker layouts of a Dolby Atmos system, ensuring you get the most out of your audio experience.

The Dolby Atmos Height Virtualizer further enhances the immersive experience. When playing any Dolby format, this feature creates a virtual surround and height effect from traditional speaker layouts without the need for additional surround or height speakers.

The HT-S5910 5.1.2-Channel Dolby Atmos Home Theater System also offers smooth and easy Bluetooth streaming. Whether you're playing audio from your phone, tablet, or PC app, you can stream it directly to the receiver. Once paired, the receiver remembers your device and automatically starts playback whenever it detects an incoming Bluetooth audio stream.

Ready for 4K HDR entertainment, this stylish and durable home theater system supports HDR (High Dynamic Range) video including HDR10, HLG, and BT.2020. It also supports the 4:4:4 color space. With 4 HDMI inputs, ARC-ready MAIN OUT, and SUB OUT that pass 4K/60p and HDR video from player to compatible TV and projector, all terminals are HDCP 2.2 compliant.

In conclusion, the HT-S5910 5.1.2-Channel Dolby Atmos Home Theater System from Onkyo is a high-quality, innovative solution for those seeking a superior home theater audio experience.

Onkyo HT-S5910 Features

  • Supports Dolby Atmos up to 5.1.2 Channels
  • Dolby Atmos Height Virtualizer
  • Smooth and easy Bluetooth streaming
  • Ready for 4K HDR entertainment

Key Features

  • Advanced 5.1.2-Channel Dolby Atmos Home Theater System for immersive home entertainment
  • Dolby Atmos technology for realistic, 3D sound experience
  • Dolby Atmos Height Virtualizer for enhanced surround sound without additional speakers
  • Easy Bluetooth streaming for seamless audio playback from various devices
  • Ready for 4K HDR entertainment with support for HDR10, HLG, and BT.2020
  • Includes 4 HDMI inputs, ARC-ready MAIN OUT, and SUB OUT for comprehensive connectivity options

What's in the box:

  • HT-S5910 5.1.2-Channel Dolby Atmos Home Theater
  • Indoor FM Antenna
  • AM Loop Antenna
  • Remote Controller (RC-897M)
  • Batteries (AA/R6)
  • Speaker Setup Microphone
  • Onkyo 2 Year Limited Warranty
