Onkyo HT-S5800 5.1.2-Channel Dolby Atmos Home Theater Package

Movie Night Will Change Forever
What an awesome way to experience game-changing Dolby Atmos sound! Everything you need to create a face-melting entertainment system is right here in one simple package, starting with a 115 W/Ch A/V receiver that connects all your media players and sends video to the TV via a single HDMI cable-from your old analog game consoles to the latest 4K/60 Hz video with 4:4:4 color space and 21:9 cinema aspect. Want full Smart TV capabilities? Plug a media streaming stick into the rear side STRM Box port and enjoy a wealth of audio and video streaming apps. Once you've connected the speaker system-which allows multidimensional Atmos soundtracks to flow above and around you-AccuEQ optimizes the sound to suit the unique shape of your room. They have also included Bluetooth technology so you can hear streamed audio with Onkyo's legendary clarity and dynamism. Unleash tomorrow's entertainment at home today!

• Supports Dolby Atmos up to 5.1.2 Channels (Speakers Included)
• 115 W per Channel
• HDMI 4 In / 1 Out (4K UltraHD / HDCP 2.2 / 4:4:4)
• Pure Driving Power from Discrete Amp Technology
• Bluetooth Wireless Audio Streaming

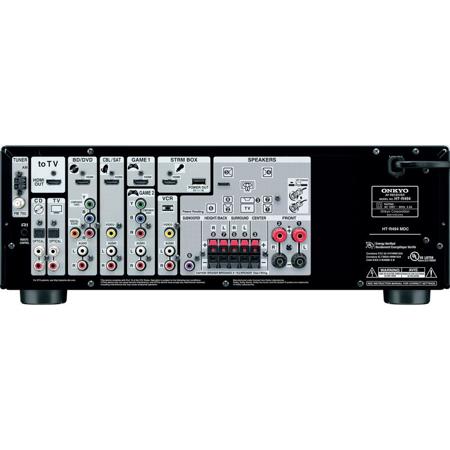

• Simple Rear Panel Layout for Easy Connection

HT-R494 7.1-Channel A/V Receiver
• 115 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC); 65 W/Ch (8 Ohms, 20 Hz 20 kHz, 0.7% THD, 2 Channels Driven, FTC)
• 4K/60 Hz-Capable HDMI Terminals with 4:4:4 Color Space for UltraHD Entertainment (4 In/1 Out)
• Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP v1.2, AVRCP v1.3)
• Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)
• Phase-Matching Bass Boost for Deep Bass and Clear Mid-Range
• AccuEQ Room Acoustic Calibration
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
• Discrete Output Stage Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
• Dolby TrueHD and DTS-HD Master Audio Decoding
• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor, x.v.Color, LipSync, Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, DVD-Audio, Super Audio CD, Multichannel PCM and CEC
• TI Burr-Brown 192 kHz/24-bit DAC for All Channels
• Advanced 32-bit DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action and RPG
• Theater-Dimensional Virtual Surround Function
• CinemaFILTER
• Direct Mode
• Double Bass Function
• Non-Scaling Configuration
• A-Form Listening Mode Memory
• STRM Box Port (Rear) for Powering Media Streaming Sticks
• 2 Component Video Inputs (Rear)
• 3 Composite Video Inputs (1 Front/2 Rear)
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• 7 Analog Audio Inputs (1 Front/6 Rear)
• Subwoofer Pre-Out
• Headphone Jack
• Crossover Adjustment (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)
• Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
• HDMI Passthrough Function
• Tone Control (Bass/Treble) for Front L/R Channels
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• 40 FM/AM Random Presets
• RIHD (Remote Interactive Over HDMI) for System Control
• Full-Function RI (Remote Interactive) Remote Control

HTP-594
5.1.2-Channel Home Theater Speaker System

SKF-594
2-Way Bass Reflex Front Speakers/Full-Range AcousticSuspension Height Speakers
• 5" (12 cm) Cone Woofer
• 1" (2.5 cm) Balanced-Dome Tweeter
• 3 1/4" (8 cm) Cone (Separately Powered By Height Channel)
• Max. Input Power: 130W
• Wall Mounting Capability

SKC-594
2-Way Bass Reflex Center Speaker
• 3 1/4" (8 cm) Cone Woofer x 2
• 1" (2.5 cm) Balanced-Dome Tweeter
• Maximum Input Power: 130 W
• Wall-Mounting Capability

SKR-594
Full-Range Acoustic-Suspension Surround Speakers
• 3 1/4" (8 cm) Cone
• Max. Input Power: 130 W
• Wall-Mounting Capability.

SKW-593
Bass Reflex Powered Subwoofer
• 10" (25 cm) Cone
• Rated Output Power: 120 W (Minimum Continuous Power, 4 Ohms, 100 Hz, 1%, FTC)
• Energy-Saving High Power Amplifier
• Down-Firing Design

Extraordinary Dolby Atmos
Dolby Atmos transports you into an extraordinary surround sound experience with captivating multidimensional sound objects that fill your room and flow all around you. This 7.1-channel receiver powers a 5.1.2-channel Dolby Atmos speaker setup: 5.1 standard surround configuration plus two height channels inside the front speakers.

Top Quality Speaker System
Onkyo knows a thing or two about building great speakers, having almost 70 years' experience in Hi-Fi. The included speaker package features precision drivers housed in solid cabinets-the front speakers also housing up-firing height drivers that unlock the magic of Dolby Atmos.

HDMI 4 In / 1 Out for UltraHD
All HDMI terminals support the latest TV video displays and HDCP 2.2 copy protection encoded in content from movie studios, broadcasters and streaming services, for next generation UltraHD.

True Power from Discrete Amplifiers
Discrete amps deliver high instantaneous current to increase speaker control for accurate and dynamic audio reproduction. This precise power is the cornerstone of Onkyo's amplification philosophy.

Bluetooth Audio Streaming
Stream virtually any audio from your smartphone, tablet or PC to your home cinema for clear and powerful sound.

AccuEQ Room Acoustic Calibration
AccuEQ measures and corrects speaker distances, output levels, crossover frequencies and frequency response from one quick and easy listening position to ensure clear and balanced surround-sound.

HDMI Video Up-Conversion
Only one wire! Every video signal is converted and sent to your TV through one HDMI cable.

Ready for Streaming Media Devices
The handy STRM Box port supplies power to streaming media players. Keep up with your video subscription services and other programs streamed from the Internet.
