Onkyo TX-RZ800 7.2-Channel THX Certified Network AV Receiver with Wi-Fi and Bluetooth

The Difference is Sonic Pleasure This is what happens when you give talented engineers free rein to create a product for movie lovers who really care about sound. The all-new TX-RZ800 is a weapon: separate amp and processing blocks, custom high-current transformer, custom capacitors, Asahi Kasei 384 kHz/32-bit DAC, discrete low-impedance amp circuitry and a 32-bit DSP to extract every drop of performance from DTS:x and Dolby Atmos soundtracks.

• Latest DTS:x and Dolby Atmos Compatible
• THx Select2 Plus Certified Power
• 185 W per Channel
• Ultra-Low-Frequency Reproduction for Dynamic Bass
• Hi-Current Amp Design for Authentic Sound Reproduction
• HDMI 8 In / 2 Out Including 1 Front (4K UltraHD / HDCP 2.2 / 4:4:4 Color Space)
• Bluetooth Audio / Wi-Fi with Pandora, Spotify and AirPlay
• DSD 5.6 MHz, FLAC 192 kHz/24-bit Hi-Res Audio Capable
• 384 kHz/32-bit Hi-Grade DAC

The high-current amp grips the speaker drivers with confidence for effortlessly clear sound that extends down to 5 Hz without phase shifting, meaning you enjoy a perfectly focused audio image and earth-shaking bass. Combine this with original VLSC technology-which cleanses the signal of pulse noise-and you have a receiver that just begs to be turned up to THx Reference levels, whether you're playing an object-based movie soundtrack or an album over AirPlay. From front to back and top to bottom, the TX-RZ800 adds pure sonic emotion to the latest UltraHD entertainment.

Advanced Features
• Supports New DTS:x and Dolby Atmos Formats for Exciting Multidimensional Sound
• THx Select2 Plus Certified for Theater Reference Sound
• 4K/60 Hz, 4:4:4 Color Space and HDCP 2.2 Capable HDMI Terminals for UltraHD Entertainment
• Zone 2 HDMI Output for HD Video in a Second Room
• Zone 2 Digital Audio and Network Audio Output
• Built-in Wi-Fi and Bluetooth Technology for Wireless LAN and Audio Streaming
• Three-Stage Inverted Darlington Circuitry on All Channels
• Customized Capacitors and Transformer for High-Current and Ultra-Low-Frequency Reproduction
• VLSC Technology for Noise-free Signal Path
• Pure Direct Analog Path Mode for Interference-free Hi-Fi Stereo Listening
• Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Pandora, Slacker, SiriusXM Internet Radio, Spotify and Deezer)
• Play Compressed, Lossless and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM and Dolby TrueHD)
• AccuEQ Room Calibration with Mic for Clear and Balanced Sound
• Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Included)
• Control and Stream with Free Onkyo Remote Streaming Apps for iPod touch/iPhone and Android Devices
• Bi-Amping Capability for Front Channels
• Powered Zone 2 and Zone 2/3 Pre/Line-Outs for Distributed Audio Playback
• Whole House Mode for Synchronized Housewide Audio
• 7.2 Multichannel Pre-Outs

Amplifier Features
• 185 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channels Driven, FTC); 135 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC);
• WRAT (Wide Range Amplifier Technology), H.C.P.S. (High Current Power Supply) Massive High-Power Transformer, VLSC and Discrete Output Stage Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

Processing Features
• AK4458 384 kHz/32-bit DAC (8 Channels x 1)
• 32-bit Digital Signal Processing Engines
• 4 DSP Modes for Gaming: Rock, Sports, Action and RPG
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode

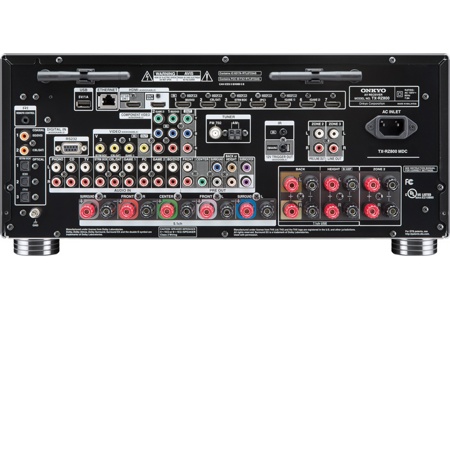

Connection Features
• 8 HDMI Inputs (1 Front/7 Rear), Main and Zone 2 Outputs
• Mass Storage Class USB Memory Playback Capability
• Component Video Switching (2 Input and 1 Output)
• 3 Composite Video Inputs (3 Rear) and 1 Output
• 5 Digital Audio Inputs (3 Optical and 2 Coaxial)
• 9 Analog Audio Inputs (9 Rear)
• Phono Input (MM) for Turntable Connection
• IR Input, 12 V Trigger Out (Assignable) and RS232 Port
• 2 Parallel Subwoofer Pre-Outs

Other Features
• Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• Graphical Overlaid On-Screen Display (OSD) via HDMI
• Hybrid Standby Function with HDMI Passthrough
• 40 FM/AM and 40 Internet Radio Station Presets
• Certified with DLNA Version 1.5
• RIHD (Remote Interactive Over HDMI) for System Control
• Aluminum Front Panel and Volume Control Knob
• Preprogrammed RI (Remote Interactive) Remote Control

Ultra-Low-Frequency Hi-Current Amp Design
Backed by 70 years' experience building amplifiers and high-grade audio components, the TX-RZ800 reproduces ultra-low-frequencies down to 5 Hz so you can feel the bass impact in your chest. Their high-current amplification system also enhances control of the speakers for accurate and dynamic sound.

Non-Phase-Shift Amp for Realistic Audio Imaging
Wide Range Amp Technology (WRAT) prevents phase shifting by pushing the roll-off point higher than the listening level frequency. Amplifying sound without phase shift creates an uncommonly clear, well focused and realistic audio image.

VLSC for Noiseless Audio Processing
Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the signal in its original form following processing. Unlike conventional filters, VLSC completely removes pulse-noise generated in D/A conversion, allowing the sound wave to be reproduced with extremely high fidelity.

HDMI 8 In / 2 Out Including 1 Front (4K UltraHD / HDCP 2.2 / 4:4:4 Color)
All HDMI terminals support 4K/60 Hz as well as HDCP 2.2 for next-generation UltraHD streaming and broadcasting.

DTS:x and Dolby Atmos Support
DTS:x is a next-generation object-based surround-sound technology that includes height to deliver a fully immersive listening experience in your living room. DTS:x provides the ultimate in flexibility, immersion and interactivity. Dolby Atmos transports you from an ordinary moment into an extraordinary experience with captivating, multidimensional sound that fills your room and flows all around you to move your mind, body and soul.

THx-Certified Amp Quality
THx certification guarantees the same high-volume, low-distortion sound you experience in a commercial theater in your listening room. THx Select2 Plus is recommended for screen-to-seat viewing distances of 10-12 feet (3-4 m).

Premium 384 kHz/32-bit DAC for Hi-Res Audio
Onkyo A/V receivers are engineered for universal Hi-Res playback including DSD 5.6 MHz and 192 kHz/24-bit FLAC files. A top-quality AK4458 DAC from Asahi Kasei extracts the best possible performance from any format for transparent, lifelike sound.

Bluetooth Audio, Wi-Fi and AirPlay with Pandora and Spotify
Stream virtually any audio to your home theater with zero hassle. Available internet radio and music subscription services include Pandora, Spotify and much more.
