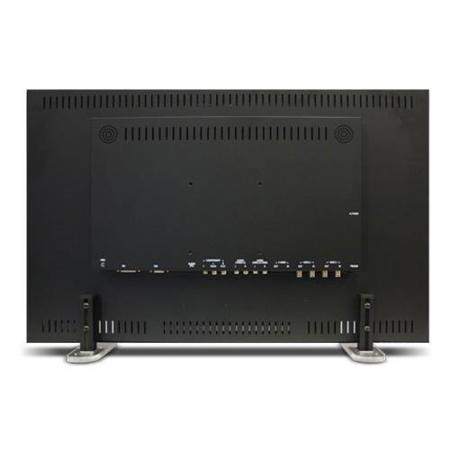

Orion Images Premium Wide Series 43REDP 43" Full HD LED CCTV Monitor with Built-in Speakers

SKU: ONPWS43LEDCC

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Orion Images 43REDP Specifications

Display

Display

Jump to...
  • Screen Size

    42.51"

  • Maximum Resolution

    1920 x 1080 at 60Hz

  • Backlight Unit

    LED

  • Pixel Pitch

    0.4902 x 0.4902mm

  • Brightness

    450cd/m2

  • Contrast Ratio

    1300:1

  • Aspect Ratio

    16:9

  • Viewing Angle

    178 deg. / 178 deg. (H/V)

  • Display Color

    8bits / 16.7 Million

  • Response Time

    < 12ms (Gray to Gray)

  • Video System

    NTSC / PAL

  • Frequency

    Horizontal: 30-64KHz
    Vertical: 56-75KHz

Interface

Jump to...
  • Video In / Out (BNC Type)

    2/2

  • S-Video In / Out

    1/1

  • VGA In (15Pin D-Sub)

    1

  • DVI-D In / HDMI In

    1/2

  • Audio In (RCA Type)

    2 (L + R)

  • PC Stereo In

    1

Transmitter

Jump to...
  • Remote Control

    Yes

  • Built-in Speakers

    Yes (2x 10W)

Monitor Functions

Jump to...
  • Filter Type

    3D Comb Filter, Deinterlacing

  • Deinterlacing

    Yes

  • Advanced Auto Power Recovery

    Yes

  • Noise Reduction

    Yes

  • Multi Display Function

    PIP / PBP

  • LCD Protection Glass

    Yes

  • Trigger Sensor

    Yes (NO / NC)

  • Auto Pixel Shift

    Yes

  • Auto Source Sequencing

    Yes

  • Multi Language

    English, Spanish, French, German, Italian

Cabinet

Jump to...
  • Material

    Electronic galvanized iron

  • Desk Top Stand

    Desktop Stand

  • Consumption

    On: <107W

  • Electrical Ratings

    AC 100-240V (50/60Hz)

Circumstance

Jump to...
  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • VESA Mount Size

    400 x 300mm

  • Wall

    WB-2642

  • Ceiling

    CMH-01

General

Jump to...
  • Dimensions

    With Stand: 37.95 x 24.57 x 9.45" (963.93 x 624.08 x 240.03mm)

  • Weight

    48.06 lbs (21.80kg)

  • UPC Code

    00836228002423

About Orion Images 43REDP

The Orion Images 42.51" 43REDP LED BLU (backlight unit) high brightness displays are a truly professional experience in next generation technology using eco-friendly material (no mercury or halogen). Orion Images 43RTH LED BLU offers versatility with multiple input and output options for both security and industrial solutions. The 42.51" 43REDP LED is our high performance, feature rich monitor line with an All Metal Cabinet, PIP / PBP, Dual Analog In, Auto Source Sequencing (up to 7 sources), Trigger Alarm / Sensor, 3D Comb Filter, Deinterlace, Noise Reduction.

This series has the versatility and configuration options you need to support your security surveillance applications. 3D Comb Filter, Noise Reduction and Deinterlacing provides high quality color producing the best color sense.

Dual Screen Display / Dual Signal In
Picture-in-Picture (PIP) mode allows an image from an AV source to be displayed as a picture with in the image from a PC source (or vice-versa). Picture-by-Picture (PBP) mode permits images from an AV and PC source to be displayed side by side for split screen viewing.

Auto Pixel Shift
Minutely moves pixels diagonally to prevent after-image / static image burn in.

Orion Images 43REDP Features

  • Metal Chassis
  • Full High Definition (FHD) 1920 x 1080p Resolution, 450 Nits, 1300:1 Contrast
  • BNC Video 2 In / 2 Out, S-Video 1 In / 1 Out, VGA 1 In, DVI-D 1 In / HDMI 2 In, Audio 2 In, PC Stereo 1 In
  • 3D Comb Filter / Deinterlace, Noise Reduction, Advanced Auto Power Recovery, Auto Source Sequencing, Trigger Source Switching, Auto Pixel Shift, Multi-Language Support
  • PIP / PBP Multi Display Function
  • 2x 10W Built In Speaker
  • Wall and Rack Mount Kit

What's in the box:

  • Orion Images Premium Wide Series 43REDP 43 " Full HD LED CCTV Monitor with Built-in Speakers
  • Remote Control
  • Orion Images 3 Year Parts and Labor Warranty
