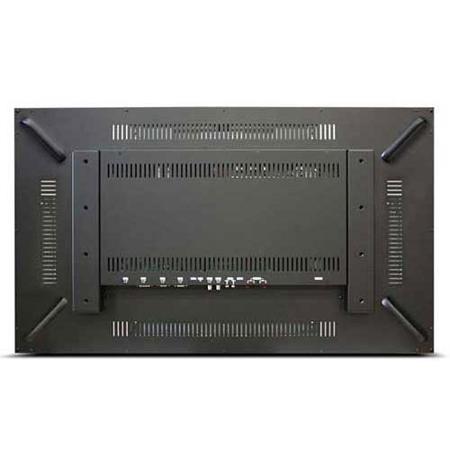

Orion Images R4K Series 46" 4K Video Wall LCD Monitor with Extreme Narrow Bezel and Built-in Speakers, 3840x2160

4K Video Wall Solutions
Orion Images R4K (FHD) Video Wall series has Immediate Benefits for Security Room, Retail, Shopping Mall, Corporation, Broadcast, Transportation, Government, Health Care, Casino and more.

The R4K (FHD) Series of LCD displays is the perfect solution for ultra high definition video walls. With a total of 3840x2160 (based on 2 x 2 configuration) and the ability to take a single video source and display it across the entire video wall. It is an excellent choice for command & control centers, corporate, AV and digital signage applications. Video Walls up to 15 x 15 are available.

Video Walls for immediate benefits
?In addition, this solution can also be used for corporate AV and Digital Signage applications such as shopping malls, airports, stadiums, lobby signage, boardrooms and more. Whether small lobby display or extra large video walls, the tiled R4K series makes statement. Public Display Signage receives 10 times the eye contact of static signage and is creating cost-effective opportunities to improve customer service, safety, way finding, branding, training and communications.

Unlike plasma technology, LCD video walls require less power consumption and with auto pixel shift built in they are not subject to permanent, irreversible burn-in. Unlike individual mount LCD's that leave gaps between each monitor, tiled video walls offer more flexibility, scalability and the possibility for a higher resolution.

• Security / Control Rooms
• Retail
• Universities & colleges
• Corporations
• Transportation
• Health Care & Medical
• Government
• Financial Institutions
• Hospitality
• Casino

Video Wall Control S/W R4K Commander functions
• Extremely easy to use
• Control each display Separately or All at once
• Select 1 or multiple monitor viewing configurations
• Multi Vision options: example - 5x5 (boarder) from DVI and 3x3 (in the center)
• Schedule a sequence of multiple display content configurations
• File Management - Save and store edited contents for easy replay access
• Select input source
• Menu lock out (IR or panel)
• Power control - On / Off
• Color setting (RGB) & Brightness
• Edge setting (horizontal & vertical gap)

Hardware Functions
• Spread 1 image across multiple monitors using 1 video source
• Configure up to a 15 x 15
• Video Wall Processor built in
• Remote Display Management
• Landscape and Portrait
• HDMI In / Out
• DVI-D In / Out
• VGA In
• RS-232C In / Out for pc / server control
• Control panel Lock (panel or IR)
• All metal chassis
• Auto power recovery
• Auto pixel shift
• PIP / PBP / QUAD Displays
• VESA standard hole patterns

Narrow Bezel
OIC Korea R4K video wall's bezel width is 1.7mm - 60.5mm bezel to bezel. With narrow bezel monitors can be joined together to create multiplex screen.

Auto Pixel Shift
Minutely moves pixels diagonally to prevent after-image/static image burn in.

Auto Power Recovery
It power outage occurs, our monitors will automatically power back on to their previous settings.

Security Lock Out
Our commercial displays have features to protect the unit Including Menu button lock out & IR Lock Out. Controls on the front of the monitor can be locked, while additional buttons for other functions are usually hidden to prevent unauthorized access.

3D Comb Filter, Deinterlace, NR
Combined: Sharpens the Edges, Reduces Noise, Enhances light with shade and minimizes ghosting.

Auto Sequential Source Switching
Adjustable well time for up to 7 sources.

All Metal Chassis
Designed with a unique durable housing for various environments Including commercial & industrial.

Magnetic Key Controller
Detachable magnetic key controller with CAT5 cable which allow easy access and control of main button.
