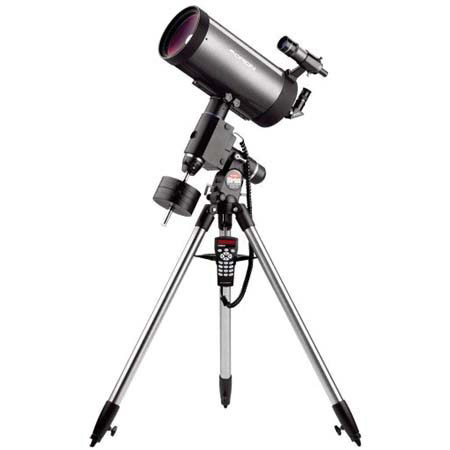

Orion Sirius EQ-G GoTo 180mm Maksutov Cassegrain Telescope Kit, with Eyepiece, Tripod & Mount and Software.

SKU: ONS180EGGTMC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Specification about this item

  • Use

    Astronomy & terrestrial

  • User level

    Advanced

  • Optical design

    Maksutov-Cassegrain

  • Optical diameter

    180mm

  • Focal length

    2700mm

  • Focal ratio

    f/15.0

  • Eyepieces included

    Sirius Plossl 25.0mm (1.25")

  • Magnification with included eyepieces

    108x

  • Resolving power

    0.64arc sec

  • Lowest useful magnification

    26x

  • Highest useful magnification

    300x

  • Limiting stellar magnitude

    13.9

  • Optical quality

    Diffraction limited

  • Finder scope

    9x50

  • Focuser

    Internal

  • Diagonal

    1.25" 90-deg Prism Star

  • Secondary mirror obstruction

    41mm

  • Secondary mirror obstruction by area

    5%

  • Mount style

    Equatorial

  • Astro-imaging capability

    Lunar, planetary & long exposure

  • Dovetail bar system

    Yes

  • Computerized compatibility

    Go-To included

  • Number of objects in database

    13436

  • Tracking rates

    Sidereal, Solar and Lunar

  • Motor speeds

    3.4-deg/sec, 64x, 32x, 8x, 4x, 2x, 1.75x, 1.5x, 1.25x

  • Motor type

    Microstep driven 1.8-degstepper motors

  • Bearing material

    Sealed ball bearings

  • Power requirement

    12-volt DC - 2A (tip positive)

  • PEC

    Yes

  • Backlash compensation

    Yes

  • Latitude range

    20-66

  • Setting circles

    Yes

  • Polar-axis scope

    Included

  • Counterweights

    Two 11 lbs

  • Available ports

    RS-232, autoguider

  • Tube material

    Aluminum

  • Tripod material

    Steel

  • Additional included accessories

    Sirius EQ-G GoTo hand controller, 1.25" visual back, GoTo hand controller cable for Sirius EQ-G, GoTo hand controller cable for Atlas EQ-G, GoTo hand controller bracket, Computer interface cable (RS-232), Wire clip, 12V DC Power cable

  • System Requirements

    GoTo hand controller version 3.0 or greater
    Windows 95 or later
    An available RS-232 COM port on the PC
    Computer interface cable (supplied)
    DC power supply (7.5V to 15V @ 100mA or greater output with 2.1mm tip positive plug)

  • Tripod leg diameter

    1.75 in

  • Counterweight bar length

    8 in

  • Diameter of counterweight shaft

    18mm

  • Height range of mount/tripod

    42.00 in - 55.00 in

  • Length of optical tube

    22.5 in

  • Weight, optical tube

    15.9 lbs

  • Weight, mount/tripod

    32.0 lbs

  • Weight, fully assembled

    62.9 lbs

  • Warranty

    Orion 1 year limited warranty

About Orion 24764

The Orion Sirius EQ-G GoTo 180mm Mak-Cass Telescope features both high-power performance and compact design. With 7" of aperture and that long focal length, you'll get tack-sharp views and clearly defined photos with subtle detail and high contrast. And with GoTo motorized computer guidance you can automatically point the telescope to any of 42,900 objects in the controller's database. Just select an object to view from the user-friendly menus on the hand controller and let GoTo do the rest.

The reason for the outstanding high-power performance is the 180mm (7.1") optical system with its 2,700mm focal length (f/15). With 44% more light grasp than the 150mm Mak, you'll get brighter images and better resolution. And the Maksutov-Cassegrain optical design produces larger images with less eyepiece magnification than other scopes. It's the perfect combination of brightness, contrast and definition for planets, close double-stars, clusters and well-defined deep-sky targets.

The meniscus lens is fully multicoated for maximum light transmission, further enhancing the bright, well-defined images. No other optical design can deliver such potent optical specifications in a package that measures just 22" long and weighs in just under 16 lbs. And all that power is so easy to control. GoTo is a simple yet reliable (and very high-tech) way to control your telescope. Two stepper motors on the Sirius mount power the telescope to the object you select at a brisk 3.4° per second, putting it right in your eyepiece's field of view. You will enjoy more productive viewing sessions, seeing way more wonders in a single evening than you ever thought possible. The GoTo system will even take you on a guided sky tour of the best sights each month! Just do an easy initial alignment and you're ready to go.

The visual back accepts 1.25" eyepieces and accessories and a dovetail bracket on the rear cell accepts any Orion finder scope or EZ Finder. The dovetail rail on the underside of the tube makes it easy to remove the telescope or attach it to the mount for easier setup. Attach an Orion StarShoot Solar System and you'll capture gorgeous high-resolution color images on your PC.

The legendary Sirius EQ-G mount provides a steady base no matter how rugged your viewing conditions are. This substantial mount features internal dual-axis stepper motors that slew the telescope at up to 3.4° per second. Includes an illuminated polar-axis scope, 8.3" dovetail mounting bar and an 11 lbs counterweight. The tripod is remarkably sturdy with 1.75"- diameter stainless steel legs and metal spreader plate. It requires an external 12-volt power source, like the Orion Dynamo Pro (#2307), or an AC-to-DC adapter.

Orion 24764 Features

  • 7.1" aperture and 2,700mm focal length (f/15) excels for high-power solar system use
  • Only 22" long and weighs less than 16 lbs for compact portability and easy storage
  • The Sirius EQ-G mount provides stability for high-power photography and viewing
  • Internet-upgradeable GoTo controller offers push-button access to 42,900 objects
