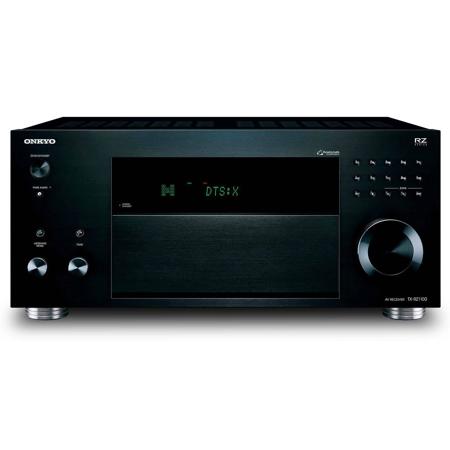

Onkyo TX-RZ1100 9.2-Channel Network A/V Receiver, 140W per Channel

Uncompromising Power & Control

The THX-certified TX-RZ1100 is aimed at discerning audiophiles waiting for the perfect product to deliver a no-compromises 5.2.4-channel audio experience in their home. This extraordinary reference receiver is suited to quad in-ceiling DTS:X- and Dolby Atmos-ready layouts with mammoth power to drive front and rear floorstanders with thrilling dynamism.

Works with Sonos
With Sonos Connect, the awesome home theater you've built around your Onkyo receiver can now be part of your existing Sonos Home Sound System, or the start of a new one. Instantly upgrade the music streaming capability of your home theater with Sonos Connect and a free firmware update. After a simple set up, your Onkyo A/V receiver will seamlessly tie into Sonos, instantly waking, changing inputs and playing at the volume you command through the familiar Sonos app.

DTS Play-Fi Multi-room Audio
The DTS Play-Fi app for iPad, iPhone, Android, Kindle Fire, and Windows PC lets you stream from online services, media server, or device library over Wi-Fi to any number of compatible speakers. DTS Play-Fi connects systems for synchronized music in every room, and can stream different music to different rooms from the same device. Speakers can be used individually with unique devices at the same time, and lossless audio is supported.

Music Made Easy with Chromecast built-in
Stream any music from your smartphone, laptop, or PC to the TX-RZ1100 with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android phone or tablet, Mac or Windowslaptop, or Chromebook.

Multi-Zone Audio and Video
Pre-outs for Zones 2 and 3 as well as Powered Zone 2 and 3 capability opens up distributed audio options throughout the home backed by dedicated Zone 2 and Zone 3 DACs.

Select HDMI terminals support 4K/60 Hz video, 4:4:4 Color Space, HDCP 2.2 copy protection, and High Dynamic Range (HDR), with BT.2020 support, for next-generation UltraHD streaming and broadcasting. A 4k and HDCP 2.2/HDR-compatible Zone 2 HDMI output allows you to enjoy AV sources connected to the receiver in another room.

THX-Certified For Theater Reference Sound
THX Certification guarantees the same high volume and low distortion levels you experience in a commercial theater in your listening room. THX Select2 Plus is recommended for screen-to-seat viewing distances of 10-12 feet (3-4 m).

To achieve THX certification, amplifiers must undergo a barrage of the industry's toughest independent bench testing to satisfy THX requirements.

Your Speakers will Thank You
Good speakers can be demanding and difficult to drive correctly, and most amps out there can't handle them. The TX-RZ1100's amps deliver high instantaneous current to grip and control speakers, moving them through their entire range. It's a significant boost to the dynamism, detail, and accuracy of music and movie soundtracks for a thrilling listening experience.

High-Current Digital Amplification.
Power Meets Control.
The TX-RZ1100 combines high-current architecture with sophisticated digital amplification and filtering technology. Noise-reduction hardware including a custom high-output transformer delivers fast dynamics, thrilling power and stunningly precise detail resolution. Onkyo's high-current digital amplification is where power meets control.

The result is velvet-smooth and emotionally evocative audio reproduction.

Noiseless Audio Processing
Vector Linear Shaping Circuitry is a mouthful, so we call it VLSC. This circuitry virtually removes digital pulse noise for a smooth analog signal. TX-RZ1100 features VLSC across all channels.

Data is converted between sampling points and these points are joined with analog vectors in real time to produce a smooth output wave form. The result is a virtually noiseless, smooth, analog signal based on the digital source. It brings out even the most subtle of nuances in audio sources.

Listen! Up in the Sky!
Packing 9.2 channels, the TX-RZ1100 unlocks a full 5.2.4-channel Dolby Atmos and DTS:X experience via four in-ceiling (or up-firing) speakers. Included 11.2 multichannel pre-outs enable 7.2.4-channel layouts (requires stereo amplifier).

Supports HDR10, Dolby Vision, BT.2020, 4K/60 Hz, and HDCP 2.2
Seven rear HDMI inputs (HDMI 1-7), Main Out, and Sub/Zone 2 Out support pass-through of HDR10, and Dolby Vision; the BT.2020 4K color standard; 4K/60 Hz video playback; and HDCP 2.2 for premium video content. Front HDMI terminal is ideal for temporary device connections.

Bluetooth / Wi-Fi with Pandora, Spotify, and AirPlay
The TX-RZ1100 has AirPlay, Wi-Fi and Bluetooth technologies built in. Stream virtually any audio from a smartphone, tablet or PC to your home theater for powerful sound.

With Spotify, Pandora, and TuneIn built-in, as well as Deezer and Tidal (via firmware update available now), you can search for music available on these services via the Onkyo Controller app on your phone. The free Onkyo Controller app puts a range of streaming options at your fingertips, from universal hi-res audio via network-attached devices to internet streaming services to music on your smartphone and tablet.

FlareConnect Multi-Room Audio
A firmware update enables almost any audio source connected to the receiver from vinyl to streaming audio to be sent wirelessly via FlareConnect, to an optional speaker placed anywhere in your home. Stable, fast, and easy to control with a mobile, it's the smart way to set audio free.

Cohesive Multi-Dimensional Sound
AccuReflex, part of the AccuEQ room calibration suite, phase-matches height and floor-standing speakers for transparent and seamless reproduction of object-based sound. AccuEQ optimizes the entire system to suit your space without affecting front-speaker characteristics for pure stereo listening.

Limitless Performance. Installation Friendly.
The Onkyo RZ Series was designed for home theater integration and performance above and beyond your expectations. From multi-zone audio and video options to dedicated RZ Series phone support and a three-year product warranty, the Onkyo RZ Series delivers superior audio performance in the configurations you want with the support you should expect from the leader in home audio.

Advanced Features

Amplifier
• Channels: 9.2
• Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC): 140, 0.08% THD
• Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC): 200, 0.9% THD
• Dynamic Audio Amplification: Yes (for Clear and Realistic Sound)
• H.C.P.S. (High Current Power Supply): Yes
• Non-Phase Shift Amplifier: Yes
• THX Certified: Yes
• Continuous 6 Ohms Rated: Yes
• Certified 4 Ohms Performance: Yes
• Discrete Output Stage Circuitry: Yes
• Independent Block Construction (Analog/Digital): Yes
• Bi-amp Capability For Front: Yes

Processing
• Dolby Atmos: Yes
• 32-Bit Digital Signal Processing Engine: Yes
• Dolby Decoder: Atmos, True HD, DD Plus
• DTS:X: Yes
• DTS Decoder: DTS:X, DTS-HD Master Audio
• ONKYO GAME Surround Modes: Yes (Rock, Sports, Action, RPG)
• VLSC for Noiseless Audio Processing: Yes (All Channels)
• THX Processing Mode: Yes
• AccuEQ Room Calibration: Yes (w/ AccuReflex)
• Direct/Pure Mode: Yes
• Advanced Music Optimizer: Yes
• 384K/32 Bit DACs: Yes

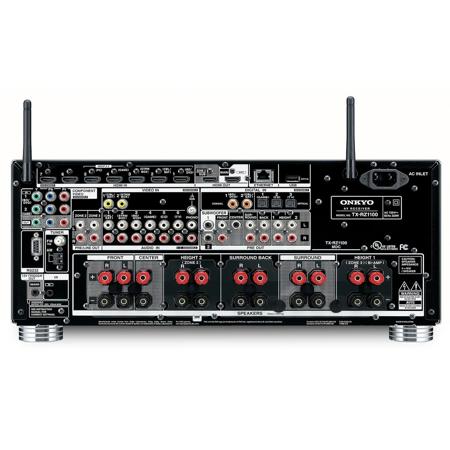

Connectivity
• Analog Audio IN: 7
• Phono Input: Yes
• Digital Audio IN (OPT/COAX): 3 / 2
• Composite Video I/O: 2 / 0
• Component Video I/O: 2 / 1
• Front Panel HDMI: Yes
• USB Input: Yes (Rear)
• HDMI I/O: 8 / 2 (Main/Zone 2/Sub): Yes
• HDMI 4K/60 Hz- Capable HDMI Terminals: Yes
• HDCP 2.2 Copy-Protection Compatibility: Yes
• HDMI Support for High Dynamic Range: Yes (Dolby Vision via firmware update)
• HDMI Support for 3D, Audio Return Channel and CEC: Yes
• HDR10 and BT.2020 Support: Yes
• HDMI Support for Deep Color, x.v.Color, LipSync: Yes
• HDMI Support for DVD-Audio, SACD, Multichannel PCM: Yes
• Analog To HDMI Upconversion: Yes
• 1080p to 4K Upscaling: Yes
• 4K Passthrough: Yes
• Analog Pre-Outs: 11.2
• Powered Zone 2: Yes
• Powered Zone 3: Yes
• Zone 2 Line Out: Yes
• Zone 2 Video Out: Yes
• Zone 2 Digital to Analog Audio Conversion: Yes (Net/SPDIF/HDMI)
• Zone 3 Line Out: Yes
• Whole House Mode: Yes
• FlareConnect Multi-room Audio: Yes
• Airplay: Yes
• Chromecast built-in: Yes
• Supports Onkyo Controller App: Yes
• Internet Radio Capable: Yes
• Spotify Connect Support: Yes
• Tidal: Yes
• Streaming Audio From PC / Network: Yes
• Hi-Res Streaming Audio Formats: Yes
• Streaming Audio From USB memory: Yes
• Wireless Network: IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz
• Bluetooth: Yes (Built-in)

Integration Access
• RS-232: Yes
• IR Input: Yes
• Ethernet: Yes
• RIHD (Remote Interactive Over HDMI): Yes
• 12V Trigger: Yes

Miscellaneous
• Hybrid Standby Function: Yes
• Smart Grid-Ready: Yes
• Auto Speaker Calibration W/Mic.: AccuEQ w/AccuReflex
• OSD Out: Yes
• Solid Aluminum Front: Yes
• Detachable AC Cord: Yes
