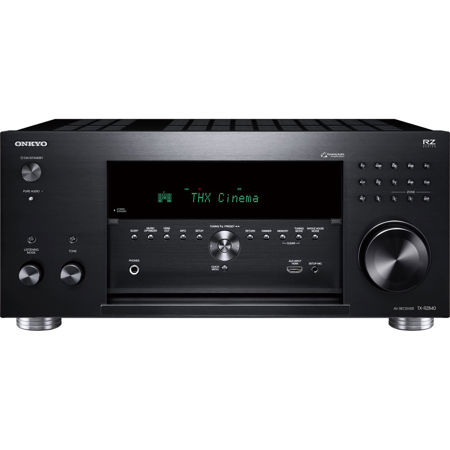

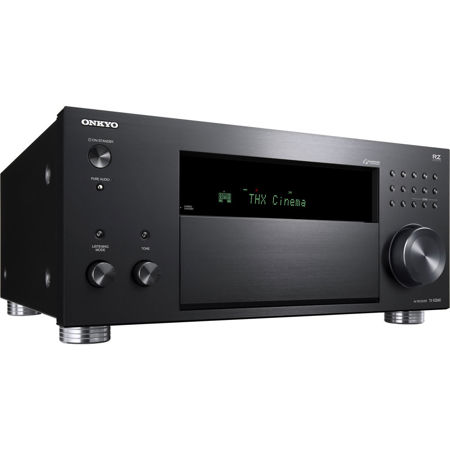

Onkyo TX-RZ840 9.2-Channel Network A/V Receiver, 120W Per Channel at 8 Ohms

SKU: ONTXRZ840

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Mark S : Can Bose 901s be hooked up to this?
ROBERTO P : IS IT ONKYO TX-RZ840  DUAL VOLTAGE 110-120  AND 220-240 VOLTS ?MARCUS M : I believe so
Bob M : When will this be back in stock?

Reviews about this item

Review Summary

2021-07-03T14:18:22

Rated 3 out of 5

Missed Opportunity

When Onkyo decided to replace the Audyssey room calibration system with AccuEQ, the great sound reproduction departed as well. I recently returned this receiver because, I couldn't produce a suitable listening environment from this receiver. I've owned six Onkyo AV receivers over the years, so I'm speaking from a place of experience.

Tyrone B.

2021-07-02T10:02:13

Rated 5 out of 5

So far so good!

I?ve had it for about a month. I use it to process 9 channels and power 7 (I use an external amp for L&R, although the unit can process 11 channels and power 9). I can listen near reference without AVR breaking a sweat or getting warm. My room is ~13x30x8.5 and it easily fills the space with clear sound. The room correction is intuitive and works great. It takes 10+ min (depending on number of channels) but the results are outstanding.There are multiple listening modes and a plethora of connections. The only ?gripe? is no backlight for the remote. On the plus side, the unit can be app controlled which can the make my gripe moot.

MARCUS M.

2021-06-28T11:27:08

Rated 5 out of 5

Excellent

Awesome receiver, this was exactly what I was looking for. Thanks Adorama for the super fast shipping.

TOM P.

2021-03-14T06:13:21

Rated 5 out of 5

Rz840

Super onkyo receiver rz840 ??

Ravi C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Onkyo TX-RZ840 Specifications

Main Unit

Main Unit

Jump to...
  • Channels

    9.2

  • Power Output per Channel

    120 W per Channel (8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC)
    250 W per Channel (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)

  • Dynamic Power

    130 W (8 Ohms, Front)
    220 W (4 Ohms, Front)
    250 W (3 Ohms, Front)

  • THD & Noise

    0.08% (20 Hz to 20 kHz, Half Power)

  • Input Sensitivity and Impedance

    Line: 200 mV RMS / 47 kohms
    Phono MM: 3.5 mV RMS / 47 kohms

  • RCA Output Level and Impedance

    Subwoofer Pre-Out, Rated: 1 V RMS / 470 Ohms
    Zone B/2 Line-Out, Rated: 200 mV RMS / 470 Ohms

  • Frequency Response

    5 Hz to 100 kHz / +1 dB, -3 dB (Direct Mode)

  • Tone Control

    Bass: +/-10 dB, 20 Hz
    Treble: +/-10 dB, 20 kHz

  • Signal-to-Noise Ratio

    Line, IHF-A: 106 dB
    Phono, IHF-A: 80 dB

  • Speaker Impedance

    4 to 16 Ohms

Processing

Jump to...
  • Dolby

    5.2.4-Channel Dolby Atmos, Dolby TrueHD, Dolby Surround Upmixing

  • DTS

    DTS:X, DTS-HD Master Audio, DTS Neural:X Upmixing

Video Section

Jump to...
  • Input Sensitivity/Output Level/Impedance

    Component Y: 1 Vp-p/75 Ohms
    Component B/R: 0.7 Vp-p/75 Ohms
    Composite: 1 Vp-p/75 Ohms

Tuner Section

Jump to...
  • Tuning Frequency Range

    FM: 87.5 to 107.9 MHz
    AM: 530 to 1710 kHz

  • FM/AM Preset Memory

    40 Stations

Connectivity

Jump to...
  • Wi-Fi

    Wi-Fi 5 (802.11ac)

  • Bluetooth

    Yes

  • AirPlay

    Yes, AirPlay 2

  • Inputs

    7 x HDMI (1 Front)
    1 x RCA Component Video
    2 x RCA Composite Video
    1 x Optical TOSLINK
    1 x Digital Coaxial
    6 x Stereo RCA
    1 x Stereo RCA Phono with Ground Screw

  • Outputs

    2 x HDMI
    1 x Stereo RCA Zone 2/B Pre-/Line-Out
    1 x Stereo RCA Zone 3 / Height 2 Pre-/Line-Out
    2 x Subwoofer Pre-Out
    1 x 9-Channel RCA Pre-Out
    1 x 1/4" / 6.35 mm Headphone (Front)

  • Other Interfaces

    1 x RJ45 Ethernet LAN
    1 x 1/8" / 3.5 mm Setup Mic In (Front)
    1 x 1/8" / 3.5 mm IR In
    1 x DE-9 RS-232 In
    1 x 1/8" / 3.5 mm 12 V Trigger Out
    1 x AM Antenna
    1 x FM Antenna
    1 x USB 5 V / 1 A

  • Speaker Connectors

    11 x Banana Plug-Compatible Binding Post Pairs

General

Jump to...
  • Power Requirements

    120 VAC, 60 Hz

  • Power Consumption

    Typical: 850 W
    On, No Sound: 70 W
    Standby: 0.15 W

  • Dimensions (WxHxD)

    17.1 x 7.9 x 15.7" (434.34 x 200.66 x 398.78mm)

  • Weight

    30.9 lbs (14.02kg)

  • UPC Code

    889951001799

About Onkyo TX-RZ840

FEATURED REVIEWS

So far so good!

By MARCUS M.

I?ve had it for about a month. I use it to process 9 channels and power 7 (I use an external amp for L&R, although the unit can process 11 channels and power 9). I can listen near reference without AVR breaking a sweat or getting warm. My room is ~13x30x8.5 and it easily fills the space with clear sound. The room correction is intuitive and works great. It takes 10+ min (depending on number of channels) but the results are outstanding.There are multiple listening modes and a plethora of co...

View full Review

Excellent

By TOM P.

Awesome receiver, this was exactly what I was looking for. Thanks Adorama for the super fast shipping.

Immense power for unparalleled speaker control
A glance at the TX-RZ840's imposing front panel reveals a component built for one purpose: making your smile wider as the volume goes higher. Its thick chassis is loaded with custom parts tested and tuned to THX Certified Select reference standards, handling massive current flows for sound you feel emotionally and physically. Beyond 3D surround supporting IMAX Enhanced content up to 11.2 channels and a finessed touch that breathes life into stereo music, the receiver forms a hub for house-wide entertainment with Next-Generation Network Audio integrating AirPlay 2, Works with Sonos, Chromecast built-in and more over 802.11ac Wi-Fi. Three-zone powered D/A audio distribution is easily managed from your smartphone. With state-of-the art connectivity and custom-installation interfaces included, it's the TX-RZ840's visceral presence you'll find most difficult to resist.

Amplifier Features
• 215 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 channel driven), 180 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 channel driven, IEC)
• Certified for IMAX Enhanced and THX Certified Select
• Dynamic Audio Amplification with RZ Series Build
• Ultra-wide 5 Hz-100 kHz frequency response
• Custom-built High-Current Low-Noise Power Transformer
• Custom 15,000 MuF high-current smoothing capacitors
• Non-phase-shift amp topology with discrete output stage
• Extruded anti-resonant aluminum heat-sink with black anodized paint
• Strengthened power-supply line for high-current dynamics
• Refined HDMI grounds and short signal-paths reduce noise
• Isolated SoC board reduces interference
• High current capability for 4-ohm speaker drive
• AKM (AK4458) 384 kHz/32-bit multichannel D/A conversion
• VLSC (Vector Linear Shaping Circuitry) noise filtering (Front L/R)
• PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
• Pure Audio Mode and Direct Mode for source authentic expression
• Independent tone controls (bass/treble) for all channels (Zone 3 excluded)

Video & Audio Support
• Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG), BT.2020, 4:4:4 color sub-sampling, 24-bit color, 3D Video, ARC (Audio Return Channel), DeepColor, x.v.Color and LipSync via HDMI
• Dolby Atmos, DTS:X, Dolby TrueHD and DTS-HD Master Audio
• Dolby Atmos Height Virtualizer 3D audio processing
• Dolby Surround and DTS Neural:X upmixing technology
• IMAX Mode for IMAX Enhanced content
• THX listening modes for movies, music and games
• Sound optimization for games (Rock, Sports, Action and RPG)
• Theater-Dimensional virtual surround-sound function

Network Features
• Next-Generation Network Audio supports multi-room streaming and Onkyo Controller
• Works with Sonos for the Sonos Home Sound System
• Chromecast built-in and voice control with the Google Assistant
• AirPlay 2 multi-room audio and voice control with Siri
• DTS Play-Fi multi-room audio via Onkyo Music Control App
• FlareConnect multi-zone audio with compatible components
• Quad-core SoC supports high-speed 802.11ac (2x2 MIMO) Wi-Fi
• Hi-Res Audio playback via network (DSD Direct 11.2 MHz; DSD 11.2 MHz/5.6 MHz/2.8 MHz [PCM conversion]; FLAC, WAV [RIFF], AIFF and ALAC to 192 kHz/24-bit)

Connection Features
• 7 HDMI inputs (1 front), 2 outputs (Main [eARC], Sub/Zone 2)
• 1 component video input (assignable)
• 2 composite video inputs (assignable)
• 2 digital audio inputs (optical and coaxial, assignable)
• 6 analog RCA inputs (assignable)
• 1 phono input with built-in low-noise MM equalizer for turntable
• 3.5 mm setup mic input for AccuEQ Advance (front)
• 6.35 mm headphone jack (front)
• 11.2-channel pre-outs (analog RCA, variable)
• Zone 2/Zone B and Zone 3 analog RCA line-level outputs
• 9 screw-type speaker posts (including Zone 2)
• Bi-directional Ethernet terminal for network and IP control
• USB input (5 V/1 A) for audio playback (rear)
• RS-232C serial port for remote control
• IR (infrared) input for remote-control extenders
• 12 V trigger output (Main, assignable, 100 mA)
• AC socket for detachable IEC power cord

Experience IMAX Enhanced
This Onkyo A/V receiver is released under the IMAX Enhanced program, which features DTS:X immersive audio decoding that is optimized to properly reproduce the full dynamic range of IMAX theatrical sound mixes available in digitally re-mastered IMAX Enhanced content. The IMAX Mode reproduces lMAX Enhanced content at the highest levels, just as the filmmakers intended. IMAX Enhanced versions of films, from Hollywood blockbuster movies to documentary films, are scheduled for 4K HDR streaming and Ultra HD Blu-ray release.

THX Certified Select cinema-reference sound
THX Certified Select guarantees the same reference volume level of a commercial cinema in rooms where the viewing position is about 3.5 m from the screen. To gain certification for reference sound within strict THX sound-quality parameters, receivers must pass 2,000 bench-tests in 75 categories covering 14,000 data points.

Dolby Atmos and DTS:X
Dolby Atmos and DTS:X formats map sounds in 3D space, allowing them to move around the room and immersing your audience in the film. With 11.2-ch pre-outs and 11-ch processing, you can enjoy 3D sound through a 7.2.4 layout (external power amp required) or use built-in amps for a 5.2.4 or 7.2.2 layout. Enjoy classic titles through your height-enabled speaker system with Dolby Surround and DTS Neural:X finding cues in legacy soundtracks and upmixing for spatial playback.

Dolby Atmos Height Virtualizer
When playing any Dolby format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional speakers.

Dynamic Audio Amplification - RZ Series Build
DAA stabilizes power delivery for accurate control and spectacular dynamics. High-Current Low-Noise Power Transformer and custom 15,000 MuF high-current smoothing capacitors deliver instant power while non-phase-shift amps capture a 5 Hz-100 kHz frequency response. To keep them cool, an extruded aluminum heat-sink with black anodized paint controls resonance frequencies while more effectively cutting thermal distortion. Behind the aluminum front panel are hand-selected audio parts. DAA produces a visceral musicality that makes every note an emotionally moving experience.

New upgrades reduce noise and boost power
Additional refinements control noise, boost power and improve S/N performance. A new HDMI board has shorter signal-paths and large, well-finished grounds for A/V signal integrity. SoC is isolated to reduce interference noise. The power-supply line is reinforced in pursuit of smooth power delivery. These contribute to punchier bass and improved localization on an expanded sound-stage.

Next-Generation Network Audio
Access streaming content from Amazon Music, Spotify, TIDAL, Deezer and TuneIn and share sound as part of a multi-room system via Works with Sonos, Chromecast built-in, AirPlay 2, DTS Play-Fi and FlareConnect.

Works with Sonos
The TX-RZ840 can join your existing Sonos Home Sound System or be the start of a new one, just by pairing it with a Sonos Connect. The AVR ties into the Sonos ecosystem, waking, changing inputs and playing at the desired volume on command from the Sonos app.

Chromecast built-in with the Google Assistant
Stream any music from your smartphone, laptop or PC to the receiver with ease. Control playback with Chromecast-enabled apps you know and love from your iPhone, iPad, Android phone or tablet, Mac or Windows laptop or Chromebook. If you have a smart speaker featuring the Google Assistant, you can cue, play and control music playback by voice.

Whole home audio: just add speakers
Orchestrate audio playback in up to three rooms at once using the Onkyo Controller app. The TX-RZ840 has two extra DACs to distribute unique or synced D/A audio sources via Zone 2 and Zone 3 speaker outputs, including HDMI/SPDIF/NET/Bluetooth. With nine amps, you can enjoy a 5.2.2-ch layout in Main with powered Zone 2 audio or a 5.2-ch surround system in Main with powered audio distribution to Zone 2 and Zone 3.

Quad-core SoC supports 802.11ac Wi-Fi
A powerful SoC (System on a Chip) processes multiple tasks at once. It evolves network functions and supports the latest high-speed 802.11ac (2x2 MIMO) specification while compatible with 802.11 b/g/n dual-band routers.

Clarify voice dialog in-program instantly
Vocal Enhancer solves inaudible dialog in TV programs and movies. DSP technology identifies voice frequencies so you can conveniently adjust them using remote-control keys or controls on the front panel.

Versatile Zone 2/Zone B line-out
Connect your supported hi-fi system via analog RCA input to the AVR's Zone 2/Zone B line-out. In Zone 2 mode, you can play the same or different analog/digital sources (including SPDIF and HDMI) in either or both rooms at the same time. Zone B mode is an ideal match for a supported wireless transmitter. Listen to any source through wireless headphones for disruption-free late-night TV entertainment.

Onkyo TX-RZ840 Features

  • 215 W/Ch THX Certified Select RZ Series DAA system
  • Ultra-wide 5 Hz-100 kHz frequency response
  • Works with Sonos, Chromecast built-in, AirPlay 2, DTS Play-Fi, FlareConnect, Spotify, Amazon Music, TIDAL, Deezer, TuneIn
  • Supports 5.2.4-ch Dolby Atmos and DTS:X playback
  • 11.2-ch pre-outs and processing for 7.2.4 layouts
  • Dolby Atmos Height Virtualizer
  • IMAX Enhanced certified for IMAX digital re-masters
  • HDMI Main output with eARC, HDMI Sub/Zone 2 Out
  • Refined HDMI grounds, SoC board and power amps
  • Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi
  • Zone 2 and Zone 3 speaker outputs
  • Zone 2 and Zone 3 DACs for D/A audio in three rooms
  • Zone 2/Zone B and Zone 3 line-outs share D/A audio
  • Stereo Assign Mode supports Height-channel playback
  • DSP-based Vocal Enhancer improves dialog audibility
  • OSD features media input/output data display function
  • HDMI supports 4K/60p, 4K HDR, BT.2020, HDCP 2.2
  • AccuEQ Advance 9-point calibration with AccuReflex
  • Volume memory-presets for A/V inputs via front panel
  • IP control, RS-232C, 12 V trigger output and IR input
  • AccuEQ Advance 9-point calibration with AccuReflex
  • Bluetooth wireless technology with Wake on Play Standby
  • Advanced Music Optimizer improves compressed audio playback
  • Vocal Enhancer DSP clarifies dialog via remote or front-panel controls
  • HDMI Main Out features eARC transmission of HQ audio from supported TVs to the A/V receiver
  • Aluminum front panel and door to conceal front-panel controls
  • Zone 2 and Zone 3 speaker outputs with Zone 2 and Zone 3 DACs play synced or unique D/A sources simultaneously (Zone 2 supports HDMI/SPDIF)
  • Zone 2 line-out mode connects audio systems for independent D/A playback (including HDMI/SPDIF) in two rooms
  • Zone B line-out mode supports wireless headphone transmitter connection for simultaneous playback of D/A audio in Main and Zone B
  • Zone 2 and Zone 3 line-outs support simultaneous output
  • Front-to-Height speaker-switching in Stereo Assign Mode for BGM
  • 1080p to 4K Super Resolution upscaling via HDMI
  • GUI with overlaid OSD via HDMI featuring media input/output display
  • Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
  • A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
  • Various efficient standby modes and HDMI pass-through
  • Optional rack-mounting kit (IRK-180-4C)
  • IP control for home automation, SmartGrid-ready
  • 3-Mode display dimmer (Normal/Dim/Dimmer)
  • 40 FM/AM random presets
  • Redesigned simple remote control

What's in the box:

  • Onkyo TX-RZ840 9.2-Channel Network A/V Receiver
  • Remote Control
  • 2x AAA Batteries
  • Indoor FM Antenna
  • AM Loop Antenna
  • Speaker Setup Microphone
  • Power Cord
  • Onkyo 3 Year Parts & Labor Limited Warranty
