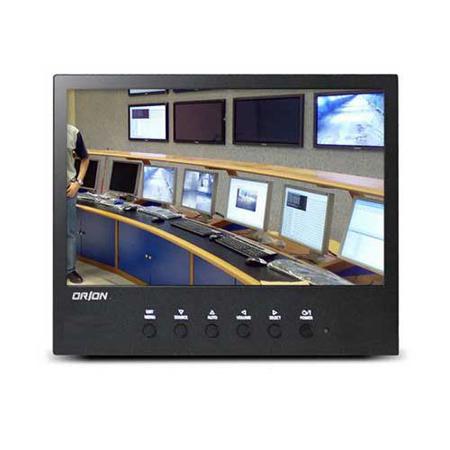

Orion Images Premium 10REDPW 10.1" LED-Backlit CCTV Monitor, Built-In Speakers
See all Orion Images items

Orion Images Premium Series 10REDPW 10.1" LED-Backlit CCTV Monitor with Built-In Speakers, 1280x800

SKU: OR10REDPW
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Orion Images 10REDPW Specifications

Display

Display

Jump to...

  • Screen Size

    10.1"

  • Max. Resolution

    1280 x 800 at 75Hz

  • Pixel Pitch

    0.1695 x 0.1695mm

  • Brightness

    350cd/m2

  • Contrast Ratio

    800:1

  • Aspect Ratio

    16:10

  • Viewing Angle (H/V)

    170 deg. / 170 deg.

  • Display Color

    16.7 Million

  • Response Time

    < 15ms

  • Video System

    NTSC / PAL

  • Frequency (H)

    31 - 38 kHz

  • Frequency (V)

    55 - 75 kHz

Interface

Jump to...

  • Video In / Out (BNC Type)

    2/2

  • S-Video In

    1

  • HDMI In

    1

  • VGA In (15Pin D-Sub)

    1

  • Audio In (RCA Type)

    1

  • PC Stereo In

    1

Audio

Jump to...

  • Built-in Speakers

    Yes (2x 1W)

Functions

Jump to...

  • Filter Type

    3D Adaptive Deinterlacer

  • Noise Reduction

    Yes

  • Auto Source Sequencing

    Yes

  • Multi Language

    English, Spanish, French, German, Italian

Cabinet

Jump to...

  • Material

    Electronic galvanized iron

  • Desktop Stand

    Kick Type

Power

Jump to...

  • Consumption: On

    <11W

  • Electrical Ratings

    AC 100 - 240V (50/60Hz)
    DC 12V / 3A

Circumstance

Jump to...

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

Mounts

Jump to...

  • VESA Mount Size

    75 x 75mm

  • Wall

    WB-5, WB-10, WB-30

  • Ceiling

    CMK-01S

  • Rack

    RMK-08

General

Jump to...

  • Dimensions (WxHxD)

    Outline: 9.45 x 7.44 x 2.55" (24.00 x 18.90 x 6.48cm)

  • Weight

    4.4 lbs (2kg)

About Orion Images 10REDPW

Orion Images is a true manufacturer of LCD & LED CCTV monitors. The Orion Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Our monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance. The Orion Images Premium 10.1" 10REDPW LED & LCD CCTV monitors are designed with a Metal Cabinet, HDMI input supported, 3D Adaptive Deinterlacer Filter Type, Tilt Back stand providing this series the versatility you need to support your security surveillance and industrial applications.

Orion Images 10REDPW Features

  • All Metal Industrial Cabinet
  • 10.1" LED Backlight (BLU) Unit Monitor
  • 3D Adaptive Deinterlacer
  • 1280 x 800 Resolution, 350 Nits, 800:1 contrast
  • BNC Video 2 In / 2 Out, S-Video 1 In, HDMI 1 In, VGA 1 In, Audio 1 In, PC Stereo 1 In
  • Mount Options; Wall and Rack

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Orion Images Premium 10REDPW 10.1 " LED-Backlit CCTV Monitor
  • Desktop Stand
  • Orion Images 3 Year Parts and Labor Warranty
