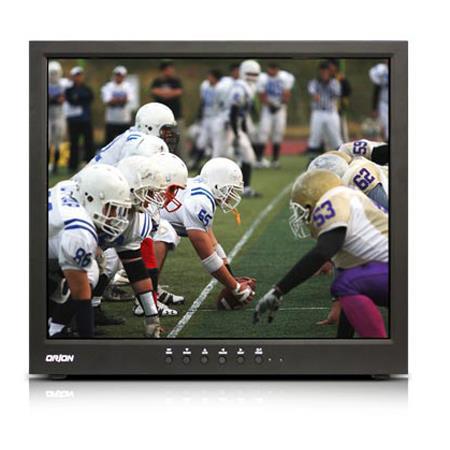

Orion Images Premium Series 17RTC 17" LCD CCTV Monitor
See all Orion Images items

Orion Images Premium Series 17RTC 17" LCD CCTV Monitor, 1280x1024

SKU: OR17RTC
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Orion Images 17RTC Specifications

  • Screen Size

    17"

  • Max. Resolution

    1280 x 1024 at 75Hz

  • Pixel Pitch

    0.26 x 0.26mm

  • Brightness

    250cd/square meter

  • Contrast Ratio

    1000 : 1

  • Aspect Ratio

    5 : 4

  • Viewing Angle (H/V)

    170 / 160 deg.

  • Display Color

    16.7 Million

  • Response Time

    < 5ms

  • Video System

    NTSC / PAL

  • Frequency (H)

    50 - 64 KHz(H)

  • Frequency (V)

    55 - 75 KHz(V)

  • Video In / Out (BNC Type)

    2 / 2

  • S-Video In / Out

    1 / 1

  • VGA In (15Pin D-Sub)

    1

  • Component

    1

  • DVI-D In / HDMI In

    1 / 2

  • Audio In (RCA Type)

    3(L + R)

  • PC Stereo In / Out

    1

  • Remote Control

    Yes

  • Built-in Speakers

    Yes (1W x 2)

  • Filter Type

    3D Comb Filter, Deinterlacing

  • Advanced Auto Power Recovery

    Yes

  • Noise Reduction

    Yes

  • Multi Display Function

    PIP / PBP

  • LCD Protection Glass

    Option

  • Trigger Sensor

    Yes (NO / NC)

  • Auto Source Sequencing

    Yes

  • Multi Language

    English, Spanish, French, German, Italian

  • Material

    Electronic galvanized iron

  • Table Top Stand

    Tilt Back

  • Power Consumption: < On

    < 29W

  • Electrical Ratings

    AC100 - 240V (50/60Hz)
    DC 12V / 3.5A

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • VESA Mount Size

    100 x 100mm

  • Wall Mount

    WB-5, WB-10, WB-30, WB-31

  • Ceiling Mount

    CMK-01

  • Rack

    RMK-08

  • Dimensions

    Outline: 14.92 x 13.23 x 3.43" / 37.90 x 33.60 x 8.71cm

  • Weight

    12.1lbs / 5.49kg

  • UPC Code

    836228001174

About Orion Images 17RTC

ORION Images is a true manufacturer of LCD CCTV monitors. The Orion monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Their monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

The ORION Images 17 inch Premium Grade 17RTC LCD CCTV monitors are designed with a Metal Cabinet, HDMI, DVI, Trigger Sensor, 3D Comb Filter, Noise Reduction, LCD Protection Glass and a Tilt Back stand providing this series the versatility you need to support your security surveillance and industrial applications.

Orion Images 17RTC Features

  • Optional LCD Protection Glass, Metal Cabinet, Trigger Sensor, Auto Source Sequencing
  • 1280 x 1024 at 75Hz Resolution, 250 Nits, 1000:1 Contrast
  • BNC Video 2 In / 2 Out, S-Video 1 In / 1 Out, VGA 1 In, Component 1 In, DVI-D 1 In / HDMI 2 In, Audio 3 In, PC Stereo 1 In
  • 3D Comb Filter, Deinterlace, Noise Reduction, Advanced Auto Power Recovery, Trigger Sensor
  • PIP / PBP
  • 1W x 2 Built-In Speakers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • PIP / PBP

What's in the box:

  • Orion Images Premium Series 17RTC 17" LCD CCTV Monitor
  • Power Adapter
  • Power Cord
  • VGA Cable
  • Remote Control with Batteries
  • Trigger Cable
  • User Manual
  • Orion Images 3 Year Parts and Labor Warranty
