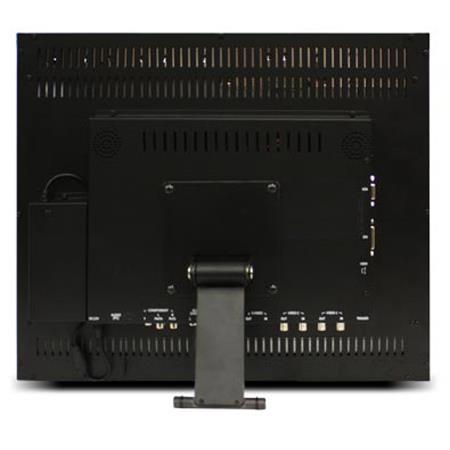

Orion Images Premium Series 17RTCSR 17" Sunlight Readable Ultra Bright LED Monitor with Transflective Technology, 1280x1024

SKU: OR17RTCSR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Orion Images 17RTCSR Specifications

  • Screen Size

    17"

  • Max. Resolution

    1280 x 1024 at 60Hz

  • Pixel Pitch

    0.26 x 0.26mm

  • Brightness

    1000cd/square meter (Indoor) / 1500cd/square meter (Outdoor)

  • Contrast Ratio

    1000 : 1

  • Aspect Ratio

    5 : 4

  • Viewing Angle (H/V)

    170 / 160 deg.

  • Display Color

    16.7 Million

  • Response Time

    < 5ms

  • Video System

    NTSC / PAL

  • Frequency (H)

    30 - 64 KHz(H)

  • Frequency (V)

    56 - 75 Hz(V)

  • Video In / Out (BNC Type)

    2 / 2

  • S-Video In

    1 / 1

  • DVI-D In / HDMI In

    1 / 2

  • VGA In (15Pin D-Sub)

    1

  • Audio In (RCA Type)

    3

  • PC Stereo In

    1

  • IR Remote Control

    Yes

  • Built-in Speakers

    Yes (1W x 2)

  • Transflective Techonology

    Yes

  • LED High Brightness BLU

    Yes

  • Multi Display Function

    PIP / PBP

  • Filter Type

    3D Comb filter / Deinterlacing

  • Auto Source Sequencing

    Yes

  • Noise Reduction

    Yes

  • Outdoor Enclosure

    Optional

  • Multi-lingual Language

    English, Spanish, French, German, Italian

  • Material

    Electronic galvanized Iron

  • Base Stand

    Kick Stand

  • Power Consumption: < On

    < 40W

  • Electrical Ratings

    AC100 - 240V (50/60Hz)
    DC 12V

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • VESA Mount Size

    100 x 100mm

  • Wall Mount

    WB-5, WB-10, WB-30, WB-31

  • Ceiling Mount

    CMK-01

  • Rack

    RMK-08

  • Dimensions (W x H x D)

    Outline: 14.9 x 13.2 x 3.4" / 37.85 x 33.53 x 8.64cm (without Stand)

  • Weight

    Open Frame: 13.1lbs / 5.94kg

About Orion Images 17RTCSR

ORION Images is a true manufacturer of LCD CCTV monitors. The Orion monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Their monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

ORION Images 17 inch Sunlight readable 17RTCSR LED monitors offer enhanced ultra-high brightness LED color display for high ambient light applications. These Transflective enhanced anti-glare displays are readable under all lighting conditions including direct or indirect sunlight - the stronger the ambient light the brighter the image. The advantage of Transflective technology is that there is no extra heat generation lower power consumption, contrast and brightness is naturally brighter to help preserve the life of the back light. They are designed for use in applications such as industrial machinery, kiosk, ATM machines and order confirmation system.

Orion Images 17RTCSR Features

  • Sunlight Readable Ultra Bright LED with Transflective Technology
  • 1280 x 1024 Resolution Sunlight Readable, 1500 Nits, 1000:1 Contrast
  • PIP / PBP Multi Display Function
  • 3D Comb Filter, Deinterlace, Noise Reduction
  • BNC Video 2 In / 2 Out, S-Video 1 In / 1 Out, DVI-D 1 In, HDMI 2 In, VGA 1 In, Component 1 In, Audio 3 In, PC Stereo 1 In
  • 1W x 2 Built in Speaker
  • 3 Years Part and Labor Warranty
  • Mount Options: Wall or Ceiling and Rack

Key Features

  • PIP / PBP Multi Display Function
  • 1W x 2 Built in Speaker
  • 3 Years Part and Labor Warranty

What's in the box:

  • Orion Images Premium Series 17RTCSR 17 " Sunlight Readable Ultra Bright LED Monitor with Transflective Technology
  • Orion Images 3 Year Parts and Labor Warranty
