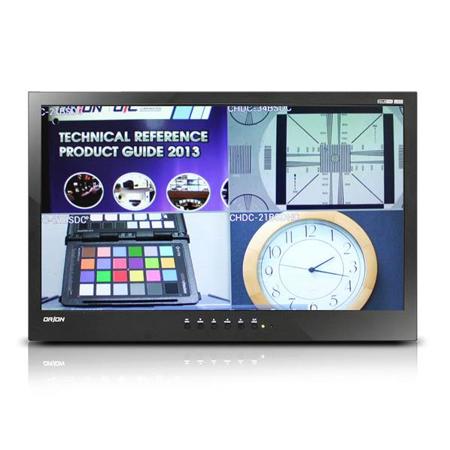

Orion Images 23IREDP 23" Full HD IP Network LED CCTV Monitor
See all Orion Images items

Orion Images 23IREDP 23" Full HD IP Network LED CCTV Monitor, 1920x1080

SKU: OR23IREDP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Orion Images 23IREDP Specifications

  • Screen Size

    23"

  • Max. Resolution

    1920 x 1080 at 60Hz

  • Pixel Pitch

    0.26 x 0.26mm

  • Brightness

    250cd/square meter

  • Contrast Ratio

    1000 : 1

  • Aspect Ratio

    16 : 9

  • Viewing Angle (H/V)

    170 / 160 deg.

  • Display Color

    16.7 Million

  • Response Time

    < 5ms (Gray to Gray)

  • Video System

    NTSC / PAL

  • Frequency (H)

    60-75 KHz(H)

  • Frequency (V)

    55-75 KHz(V)

  • RJ45

    Built-In Android 4.2 OS, Quad Core
    RK3188, Cortex A9, 8GB Internal Memory
    WiFi 802.1b/g/n

  • Video In/Out (BNC Type)

    2 / 2

  • S-Video In / Out

    1 / 1

  • VGA In (15Pin D-Sub)

    1

  • DVI-D In / HDMI In

    1/2

  • Audio In (RCA Type)

    3(L + R)

  • PC Stereo In

    1

  • Remote Control

    Yes

  • Built-in Speakers

    Yes (1W x 2)

  • Filter Type

    3D Comb Filter / Deinterlacing

  • Advanced Auto Power Recovery

    Yes

  • Noise Reduction

    Yes

  • Multi Display Function

    PIP / PBP

  • Trigger Sensor

    Yes (NO/NC)

  • Auto Pixel Shift

    Yes

  • Auto Source Sequencing

    Yes

  • Multi Language

    English, Spanish, French, German, Italian

  • Material

    Metal

  • Desk Top Stand

    Yes

  • Power Consumption: < On

    < 38W

  • Electrical Ratings

    AC100 - 240V (50/60Hz)

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • VESA Mount Size

    100 x 100mm

  • Wall Mount

    WB-5, WB-10, WB-30, WB-31

  • Ceiling Mount

    CMK-01

  • Dimensions

    Outline: 21.7 x 13.9 x 3.1" / 55.12 x 35.31 x 7.87cm

  • Weight

    15.6lbs / 7.08kg

About Orion Images 23IREDP

ORION Images is a true manufacturer of LCD CCTV monitors. The ORION Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Their monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

The ORION Images released a new 23 inch network CCTV monitor with built-in Android 4.2 OS, Quad Core RK 3188, Cortex A9, 8GB internal memory and snap shot (this feature is based on application support only) capability.

Orion Images 23IREDP Features

  • 23 Inch IP Network CCTV Monitor
  • Wi-Fi 802.1b/g/n Wireless
  • Support RJ45, 10/100M LAN Network
  • LED BLU (Back Light Unit) Display Monitor
  • PIP / PBP Multi Display Function
  • 3D Comb Filter / Deinterlace, Noise Reduction, Advanced Auto Power Recovery, Auto Pixel Shift, Auto Source Sequencing, Trigger Source Switching, Multi-Language Support
  • Ethernet 1 In, Wi-Fi Antenna, USB 2 In, BNC Video 2 In / 2 Out, S-Video 1 In / 1 Out, VGA 1 In, DVI-D 1 In, HDMI 2 In, Audio 2 In, PC Stereo 1 In
  • 1920 x 1080p Full HD
