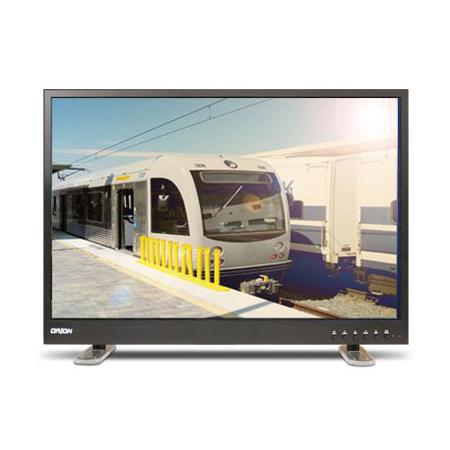

Orion Images Premium Series 32RTCSR 32" Sunlight Readable LCD Monitor, 1366x768

SKU: OR32RTCSR

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Orion Images 32RTCSR Specifications

  • Screen Size

    32"

  • Active Viewing Area

    697.68 x 392.25mm / 27.47 x 15.44"

  • Max. Resolution

    1366 x 768 at 60Hz

  • Pixel Pitch

    0.51 x 0.51mm

  • Brightness

    850cd/square meter (Indoor) / 1300cd/square meter (Outdoor)

  • Contrast Ratio

    3000 : 1

  • Aspect Ratio

    16 : 9

  • Viewing Angle (H/V)

    176 / 176 deg.

  • Display Color

    16.7 Million

  • Response Time

    < 8ms

  • Video System

    NTSC / PAL

  • Frequency (H)

    30-64 KHz(H)

  • Frequency (V)

    56-75 KHz(V)

  • Video In / Out (BNC Type)

    2 / 2

  • S-Video In / Out

    1 / 1

  • VGA In (15Pin D-Sub)

    1

  • Component In

    1

  • DVI-D In / HDMI In

    1 / 2

  • RS-232C In / Out

    1 / 1
    Max. ID and connection : 1-99
    Max cable length (RS-232C) : 49.2'

  • Audio In (RCA Type)

    3

  • PC Stereo In

    1

  • IR Remote Control

    Yes

  • Built-in Speakers

    Yes (7.5W x 2)

  • RS-232C Control

    Monitor OSD control using PC

  • PIP & PBP

    Analog / Digital
    BNC / BNC

  • Filter Type

    3D Comb filter

  • Deinterlacing

    Yes

  • Noise Reduction

    Yes

  • Auto Pixel shift

    Yes

  • Trigger Source Switching

    Yes

  • Auto Source Sequencing

    Yes

  • Auto Power Recovery

    Yes

  • Security Lock Out

    Yes

  • Transflective Enhancement

    Yes

  • Outdoor Enclosure

    Optional

  • Multi-lingual Language

    English, Spanish, French, German, Italian

  • Material

    Electronic galvanized Iron

  • Power Consumption: < On

    < 150W

  • Electrical Ratings

    AC100 - 240V(50/60Hz)

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Wall Mount

    WB-2642

  • Ceiling Mount

    CMK-01 with FMA-01

  • Enclosure

    ENCL-A32

  • VESA Mount Size

    200 x 200mm

  • Dimensions

    Outline: 30 x 19.8 x 9.4" / 76.20 x 50.29 x 23.88cm (Open Frame)

  • Weight

    21.54kg / 47.49lbs (Open Frame)

About Orion Images 32RTCSR

ORION Images is a true manufacturer of LCD CCTV monitors. The Orion monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Their monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

ORION Images 32 inch Sunlight readable 32RTCSR LCD monitors offer enhanced ultra-high brightness LCD color display for high ambient light applications. These Transflective enhanced anti-glare displays are readable under all lighting conditions including direct or indirect sunlight - the stronger the ambient light the brighter the image. The advantage of Transflective technology is that there is no extra heat generation lower power consumption, contrast and brightness is naturally brighter to help preserve the life of the back light. They are designed for use in applications such as industrial machinery, kiosk, ATM machines and order confirmation system.

Orion Images 32RTCSR Features

  • Dual Composite Display and PIP / PBP Multi Display Function, RS-232C Control, Metal Cabinet
  • Transflective Technology
  • 1366 x 768 Resolution Sunlight Readable, 1300 Nits, 3000:1 Contrast
  • 3D Comb Filter, Deinterlace, Noise Reduction
  • BNC Video 2 In / 2 Out, S-Video 1 In / 1 Out, VGA 1 In, Component 1 In, DVI-D 1 In / HDMI 2 In, RS-232C 1 In / 1 Out, Audio 3 In, PC Stereo 1 In
  • 7.5W x 2 Built in Speaker
  • 3 Years Part and Labor Warranty
  • Mount Options: Wall or Ceiling

Key Features

  • Transflective Technology
  • 7.5W x 2 Built in Speaker
  • 3 Years Part and Labor Warranty
  • Mount Options: Wall or Ceiling

What's in the box:

  • Orion Images Premium Series 32RTCSR 32 " Sunlight Readable LCD Monitor
  • Orion Images 3 Year Parts & Labor Warranty
