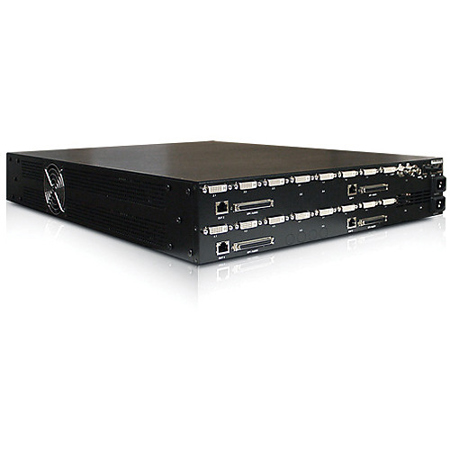

Orion Images OIC-M16043G 16 I/P Multiviewer System with OIC Commander Software
See all Orion Images items

Orion Images OIC-M16043G 16 Inputs HD Multiviewer System with OIC Commander Software

SKU: OROICM16043G

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Orion Images OIC-M1604 Specifications

  • Video Input

    Up to 16 DVI
    SD / HD / 3G-SDI: SMPTE 259M, 292M, 424M

  • Input Connectors

    16 x DVI-I (VGA to DVI-I Adapter provided as standard)

  • Video Output

    Up to 4 DVI-I (SD / HD / 3G-SDI)

  • Output Connectors

    4 x RJ45 (RJ45 to DVI-I Adapter)

  • Built-in CATx Extender

    Up to 35' / 10.67m (SDI: Up to 115' / 35.05m)

  • Output Resolutions

    800 x 480 to 2048 x 1080 (1080p)

  • Total Screens Supported

    Up to 16

  • On Screen Display

    Borders, labels, fonts, tally LEDs, clock, logos, UMD (Under Monitor Display), OMD (Over Monitor Display), IMD (In Monitor Display)

  • General Purpose IO

    40 inputs with DB9 connectors

  • Serial Port

    RS232 with RS422, Connector RJ45
    Baud Rate up to 115200, Format TSL, TSI, AXP

  • Alarm

    No audio, audio high / low, no video, video black, video frozen

  • IP

    100-Base-TX, TSL, AXP, Connector RJ45

  • Control

    Front panel buttons for quick preset recalls, GPIs, ASCII Protocol (AXP), OIC Commander

  • Power Requirement

    90 to 250 VAC, 50/60Hz

  • Power Consumption

    Approximately 220W

  • AES Audio

    Option: 16 channels (balanced / unbalanced)

  • Analog Stereo Audio

    Option: 32 channels (balanced / unbalanced)

  • Embedded Audio

    SMPTE 272M-A

  • Power

    Redundant power supply is provided

  • Dimensions (W x H x D)

    17.5 x 3.5 x 23.6" / 44.45 x 8.89 x 59.94cm

About Orion Images OIC-M1604

The OIC-M1604 is ORION Images's first high definition multi-window monitoring system featuring 16 universal inputs/windows, with user selectable resolutions up to 2048 x 1080 (including 1920 x 1080p) and infinitely adjustable the screen layouts. This 2 RU, rackmountable video scaler/processor allows for maximum flexibility in screen layout and for viewing multi-window content of video and graphics at the same time over a single or multiple displays.

The OIC-M1604 supports inputs for all HD video sources including, DVI, HDMI (opt.), VGA, YPbPr (opt.), SD / HD / 3G-SDI. The OIC-M1604 unit can be controlled several ways; through the front panel buttons for up to 30 assignable preset viewing layouts or via standard RS-232C protocol or through a control module with GPI inputs assigned to preset buttons or via the OIC Commander software, a PC configuration and control application.

Orion Images OIC-M1604 Features

  • Universal Inputs and auto-detect (Standard - DVI, RGB and SD / HD /3G-SDI)
  • Up to 4ch
  • Output resolution up to 2048 x 1080 including 1920 x 1080p through DVI or HDMI, SD / HD / 3G-SDI (Option - YPbPr, VGA )
  • OIC Commander application allows on-screen graphical elements to be designed with any graphics tool
  • Front panel headphone jack with volume adjustment for audio monitoring
  • Built-in CATx extender - extend 1080p up to 115 feet with optional cable
  • Front panel buttons for quick preset recalls (30 presets)
  • Compact (Height - 2RU) and Rack-Mount Kit provided
  • 3 Year Warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Output resolution up to 2048 x 1080 including 1920 x 1080p through DVI or HDMI

What's in the box:

  • OIC-M16043G 16 Inputs HD Multiviewer System with OIC Commander Software
  • 16x VGA to DVI-I Adapter
  • 4x RJ45 to DVI Adapter (Up to 35' )
  • 4x 15' CAT6 Cable
  • 4x SCSI-DB9 GPI/Audio Cable
  • RJ45-DB9 RS232 Cable
  • RJ50-DB9 GPI I/O Cable
  • OIC-M16043G 3 Year Warranty
