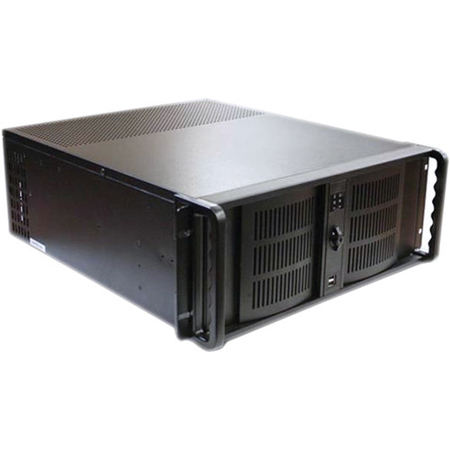

Orion Images OIC-MP1212 12-In/12-Out High Definition Video Wall Controller Multi-Viewer System

SKU: OROICMP1212

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Orion Images OIC-MP1212 Specifications

  • Server Chassis

    4U Black Chassis

  • Processor

    Intel Core i7

  • System Bus

    1333MHz

  • CD / DVD

    18x DVD-RW ROM Drive

  • Network Card

    2 Gigabit Ethernet Ports

  • Video Card

    Onboard Video (VGA Output)

  • Motherboard Chipset

    Intel Chipset

  • PCI Slots

    9 PCIe Slots

  • System RAM

    16GB DDR3

  • Input Card

    4 Channel HD Capture Card (Up to 4)

  • Input Card Source

    DVI

  • DMA Bandwith MB/s Per Card

    800MB/s per capture processor, 3.2GB/s total

  • Frame Buffer MB

    4x 256

  • Audio Supported

    Audio supported only for HDMI Input

  • Output Card

    4 Channel Output Card (Up to 4)

  • Output Type

    4x Display Port 1.1a video ports providing up to 359M pixels/s at 24bit (eg 2560 x 1600 at 60Hz)

  • Power

    115V, 12A Input

  • Cooling

    2x 120mm Fans

  • Power Supply

    500W Redundant Power Supply

  • Operating System

    Window 7 Professinal

  • Operating System HDD

    500GB Hard Drive

  • Dimensions (W x H x D)

    19 x 7 x 19.65" / 482.6 x 177.8 x 499.11mm

  • Weight

    55lbs / 24.95kg

About Orion Images OIC-MP1212

The OIC-MP Series is the latest addition to their wall controller systems. The OIC-MP Series is the perfect solution for when multiple sources must be shareed in a collaborative environment for video capture for streaming, recording or presentation applications. The video capture card provides a high performance high density video capture solution for mission-critical applications that require high capture bandwidth. The video wall is ideal for a command center, traffic management, financial institutions, power and utilities, security and entertainment.

Orion Images OIC-MP1212 Features

  • Core i7 Processor
  • Rack Mount 4U Case with Front Lock
  • Expandable HD Inputs and Outputs
  • Multiple Video Wall Configurations
  • Windows 7 / 64 bit
  • Display Multiple Input Sources
  • IP Camera Support
  • Displays Video Clip and Photos in Windows 7
  • Outputs Maximum 2560 x 1600 at 60Hz Resolution
  • Interactive Desktop Control and Configuration
  • Size and Position any Window
  • Audio Playback for HDMI Source
  • Stream a Source Over the Network

Key Features

  • Core i7 Processor
  • Rack Mount 4U Case with Front Lock
  • Expandable HD Inputs and Outputs
  • Multiple Video Wall Configurations
  • Windows 7 / 64 bit
  • Display Multiple Input Sources

What's in the box:

  • Orion Images OIC-MP1212 12In/12Out HD Video Wall Controller Multi-Viewer System
  • Optical Mouse
  • DisplayPort to DVI Adapters
  • Keyboard
  • Orion Images 3 Year Limited Warranty
