29% Off

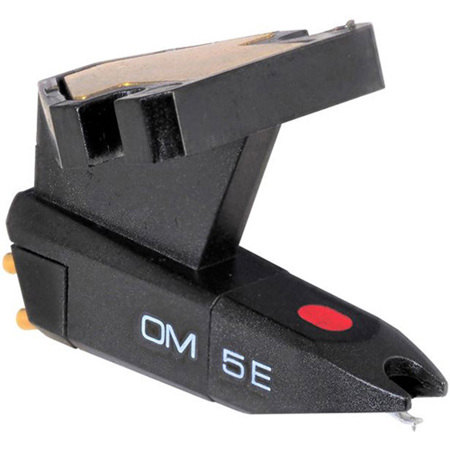

Ortofon OM 5E Elliptical Stylus and Listening Cartridge, Single

SKU: OROM5ESN MFR: OM-5E OM SINGLE
$81.99
$114.99
Save: $33 (29%)
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Ortofon OM 5E elliptical stylus cartridge.
  • Enjoy balanced audio; this cartridge features excellent channel separation for clarity.
  • The OM 5E's wide frequency response ensures accurate sound reproduction across genres.
  • Achieve optimal tracking ability with a recommended tracking force of 1.75 grams.
  • Upgrade your turntable with this durable cartridge for long-lasting performance & value.
  • Easy to install, this standard mount cartridge offers great compatibility with turntables.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DENNIS D : For a Dual CS622 turntable

Reviews about this item

Review Summary

Ortofon OM 5E Specifications

  • Output Voltage

    1000 Hz, 5cm/sec at 4 mV

  • Channel Balance

    at 1 kHz -2 dB

  • Channel Separation

    at 1 kHz - 22 dB
    at 15 kHz - 15 dB

  • Frequency Range

    at - 3dB - 20-25.000 Hz

  • Frequency Response

    20-20.000 Hz +/- 2 dB

  • Tracking Ability

    at 315Hz at recommended tracking force 65 microm

  • Compliance

    20 microm/mN, Dynamic, Lateral

  • Stylus Type

    Elliptical

  • Stylus Tip Radius

    r/R 8/18 microm

  • Tracking Force Range

    1.5-2.0 g (15-20 mN)

  • Tracking Force

    1.75 g (17.5 mN) Recommended

  • Tracking Angle

    20 Degree

  • Internal Impedance

    750 Ohm Dc Resistance

  • Internal Inductance

    450 mH

  • Recommended Load Resistance

    47 kOhm

  • UPC Code

    5705796010022

1 Accessories for Ortofon OM 5E Elliptical Stylus and Listening Cartridge, Single

  • All Accessories (1)
  • Laptop Stand (1)

About Ortofon OM 5E

The OM 5E Elliptical Stylus and Listening Cartridge, Single, is a testament to Ortofon's over 50 years of expertise in designing and manufacturing superior Moving Magnet cartridges. Esteemed by music aficionados and Hi-Fi enthusiasts globally, this product stands as a symbol of high-quality sound reproduction.

Designed for optimal fit, this cartridge is a perfect match for tonearms with a standard headshell or a cartridge mount. The OM 5E is equipped with a cleverly integrated, removable weight-plate in the mounting bracket, allowing for easy customization based on your tonearm type. For standard tonearms, the weight-plate remains in place, while for low mass types, it can be effortlessly removed, reducing the cartridge mass to a mere 2.5g.

The standout feature of the OM 5E is its elliptical stylus, renowned for delivering balanced and distortion-free playback. Thanks to its contoured shape, the elliptical diamond stylus tracks groove oscillations with greater precision than spherical diamonds, resulting in superior tracking and minimal distortion.

The OM 5E also offers the flexibility of a wide range of replacement styli, catering to your unique home system, application, and budget. This feature allows you to enhance your sound reproduction without the need to replace the entire cartridge. Simply upgrade the stylus to step up to better sound. The OM 5E is compatible with a variety of styli, including 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M, making it a versatile choice for any music lover.

In essence, the OM 5E Elliptical Stylus and Listening Cartridge, Single, combines Ortofon's innovative design, high-quality materials, and advanced technology to deliver a reliable, stylish, and durable solution for superior audio experience.

Ortofon OM 5E Features

  • The series is the lowest-mass range of moving magnet cartridges offered by Oroton
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps

Key Features

  • Experience superior sound quality with this Ortofon OM 5E elliptical stylus cartridge.
  • Enjoy balanced audio; this cartridge features excellent channel separation for clarity.
  • The OM 5E's wide frequency response ensures accurate sound reproduction across genres.
  • Achieve optimal tracking ability with a recommended tracking force of 1.75 grams.
  • Upgrade your turntable with this durable cartridge for long-lasting performance & value.
  • Easy to install, this standard mount cartridge offers great compatibility with turntables.

What's in the box:

  • OM 5E Single Elliptical Stylus and Listening Cartridge
  • Oroton 2 Year Limited Warranty
