ORLIT TR-612N TTL 2.4Ghz Transceiver for ORLIT RoveLight RT 610 - Nikon

SKU: ORRRTR612N

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-12-09T18:20:57

Rated 2 out of 5

terrible ittl

got this with the orlit 400. One of the most inconsistent ittl I ever used. Doesn't do pass thru for other trigger when you piggyback other trigger brand.

RICHARD T.

2019-01-16T07:23:33

Rated 5 out of 5

Awesomeness

This is an awesome product and reliable trigger. Will purchase Orlit products again.

tomas a.

2018-12-30T18:43:26

Rated 5 out of 5

Orlit Rocks it

Little Orlit transmitter rocks!

Steven A.

2018-12-13T14:11:40

Rated 4 out of 5

Good Value for the Money

Very good for the price, especially at the sale price. These are handy as receivers to have to mount to extra flash units as you might have lying around and use them as background lights etc. Build quality is not amazing so I wouldn't be rough with them and the button layout is not intuitive but once you set your lights you probably won't be changing settings too much.

HACHEMI T.

2018-12-12T07:58:46

Rated 2 out of 5

Ok trigger system

For some reason this trigger has always caused me issues, be it with sync or with detection. I would definitely want to upgrade to the newer trigger they have for Nikon to see if that helps. This one in particular had some issues with syncing with my Orlit Rt610. It would often disconnect and then re syncing the trigger to the moonlight would take me several attempts which is a little concerning in the middle of a shoot.

Rajeev N.

2018-07-10T11:57:38

Rated 5 out of 5

Not just a Master trigger but also a great slave.

This TR612 is not just a master trigger on the camera, it also works as a remote slave. I have used it to replace all of my Yongnu 622 triggers, and now have a complete Orlite triggering system I can adjust from my phone. These 612 devices are fitted to my SB700 Nikon flashes (I also have a Shanny SN600SN, which works perfectly), If the flash is set to TTL, and the TR612 is set to slave, I can use my Orlit TR-Q6N to control the Orlit strobes, and my Nikon flashes. TTL and manual power adjust from the TR-Q6N works flawlessly, and the range is outstanding, way better than the Yongnu. Its simple, and in a pinch, if the TR-Q6N was to fail, I can swap one of these as a master and continue to work. The Bluetooth for Orlit, via the TR-Q6 is a lifesaver for quickly switching studio setups. I cannot understand why Adorama has these on clearance, but at this price they are really great. I did notice some odd behavior with some features on non Nikon flashes (Yongnu 568EX and a Meike 910), but it still worked fine for triggering and power adjust as well as TTL, but it seemed power was inconsistent. Not so with Shanny and Nikon.

Barry C.

2018-04-09T09:27:50

Rated 3 out of 5

If you want to use your speedlights with your Orlit Monolight, this is what you need.

I have an Orlit Rovelight RT610 TTL Monolight for my Nikon and I added these transceivers so that I can also use my Nikon speedlights as fill or accent lights. I find these transceivers to be reliable and fairly intuitive. The major drawbacks to this system are that there is no easy way to turn off a group, or at least I have not found one. I have to manually switch off lights or receivers that I do not want to fire, which detracts from the convenience of a wireless system. The other main problem is that the "manual" flash mode will only allow you to make remote adjustments to the power settings if the speedlight is in TTL mode. This results in a TTL preflash that throws off light meters. Therefore, if you want to use a light meter, you have to have the speedlight itself in manual mode, which makes it impossible to change the power setting remotely. Neither of these are fatal flaws, but it would certainly be nice if they made Orlit transceivers that would address these drawbacks. Until then, these transceivers appear to be the only game in town if you want to incorporate speedlights with your Orlit moonlight.

WILBUR T.

2018-01-04T15:18:40

Rated 4 out of 5

Good with cheap price

Good with cheap price

Gon H.

2017-03-07T08:03:48

Rated 4 out of 5

Does the job

The transceiver for the Orlit does an adequate job, but feels cheap and looks cheap. The readout is dated. Still, it does what it needs to do.

D J.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ORLIT Rovelight RT Transceiver Specifications

  • Radio Frequency

    2.4 GHz

  • Channels

    Transceiver: Auto, 1-15 / Receiver: Auto, 1-8

  • Range

    980 ft / 300 m

  • Groups

    3 - A/B/C

  • Triggering Modes

    Hot Shoe
    Sync Cord
    Test Button

  • High Speed Sync

    up to 1/8000 s (depending on camera)

  • Sync Connectors

    Hotshoe
    2.5mm PC sync

  • External Interface

    2.5mm PC synchronous cord
    Mini USB data interface

  • Supported modes

    TTL, Manual (1/1 to 1/128 in 1/3 steps)

  • Supported functions

    Exposure compensation (½ 3.0 EV in 1/3 steps), master / slave, ratio control A: B and A: BC (from 8: 1 to 1: 8 in 1/1 aperture steps, A: BC with flash exposure compensation ½ 3.0 EV), modeling light can be switched on / off for each group

  • Sync modes

    Short-time synchronization, synchronization to the 1st / 2nd shutter curtain

  • Power Source

    Two 1.5V AA batteries

  • Connection

    Foot for Nikon hot shoe
    Micro-USB for firmware updates
    PC Sync

  • Indicators and Controls

    LCD screen display:
    Channel indicator, Power column, Modeling light column, Group indicators, TTL mode, Manual mode, Battery icon,
    Buttons & Ports:
    Group buttons, Status LED, MENU button, MODEL button, ENTER button, TEST button, CH/MASTER button, Micro-USB port, Power switch, Locking wheel, Mounting foot, Battery compartment, PC.SYNC ports

  • Other features

    LCD display (illuminated, automatic shutdown), power saving (3 s), flash-ready indicator, battery status indicator, test flash trigger

  • Dimensions

    3.6 x 2 x 2.5 in / 94 x 63 x 50 mm

  • Weight

    3.3 oz / 94 g

About ORLIT Rovelight RT Transceiver

Orlit

TTL Flash Extraordinaire

TTL Flash Extraordinaire

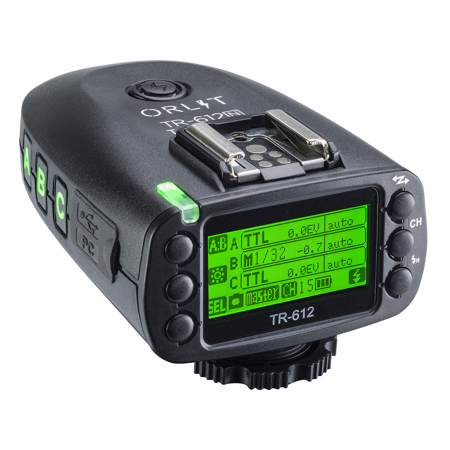

The ORLIT TR-612N TTL TRANSCEIVER is designed especially for NIKON cameras and adds 980ft/300m of remote freedom, without a speedlight, to provide full TTL, Remote Manual, and HSS, in 3 individual groups. It has backward compatibility to the legacy Flashpoint Rovelight. The wireless protocol is based on the popular Nikon system employed CLS flashes. Using a TR612N on the camera's hot shoe, a photographer can easily adjust the exposure for Orlit Rovelight RT610 TTL Monolights and Orlit RT600N Speedlites. Team up with the new powerful and transportable Orlit Rovelight RT 610 to reach the next evolution of monolights the bearing the RT designation. With a focus on mobile lighting, the RT compatible collection hopes to free your photography to go out and... ROVE.

Make an Orlit RT turn

Make an Orlit RT turn

This efficient speedlight is the answer for all those loyal Nikon DSLR owners longing to use the unique NikonCLS wireless system into a more extensive and powerful lighting solution, without losing the wireless control in which they have already invested. The TR-612N incredibly extends the remote possibilities even further to 980ft/300m with industry benchmark interference avoidance. Plus, this TTL wireless flash transmitter can trigger one or more receivers for studio flash and speedlights. Featuring direct access to groups, multi-group triggering, stable signal transmission, and sensitive reaction, it gives photographers wide flexibility and control over their strobist setups. The flash trigger applies to hotshoe-mounted Nikon cameras, as well as the cameras which have PC sync sockets.
With the ORLIT TR-612N TTL Transceiver, high speed synchronization is available for most of camera flashes which support CLS. The max flash synchronization speed is up to l/8000s.
The Orlit TR-612N user interface design features a clear LCD display, simplified but extensive menu system, and is graced by soft menu touch control buttons for all options. Future technologies are firmware updated through the USB port.

See the ORLIT brochure

ORLIT Rovelight RT Transceiver Features

  • Exceptionally long 980 foot range transmission to Orlit linked flashes
  • Compact Nikon hot shoe based control center
  • Connects to 3rd party strobes
  • Easy to read LCD panel
  • Instant Group access buttons
  • Adds Nikon CLS to the growing collection of Orlit RT flashes

Product Documents

User Manual

What's in the box:

  • ORLIT TR-612N TTL 2.4Ghz Transceiver
  • Manual
  • ORLIT 1-Year USA Warranty
