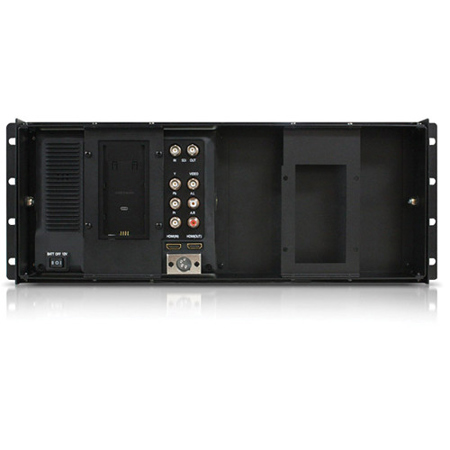

Orion Images VF703G-RMK1 7" Single View Finder Monitor with BLK-02 Metal Plate
See all Orion Images items

Orion Images VF703G-RMK1 7" Single View Finder Monitor with BLK-02 Metal Plate

SKU: ORVF703GRMK1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Orion Images VF703G-RMK1 Specifications

  • Panel

    7" IPS

  • Panel

    7" IPS

  • Panel

    7" IPS

  • Resolution

    1280 x 800 Pixels

  • Resolution

    1280 x 800 Pixels

  • Resolution

    1280 x 800 Pixels

  • Pixel Pitch

    0.11775 x 0.11775mm

  • Pixel Pitch

    0.11775 x 0.11775mm

  • Pixel Pitch

    0.11775 x 0.11775mm

  • Display Area

    150.72 x 94.2mm

  • Display Area

    150.72 x 94.2mm

  • Display Area

    150.72 x 94.2mm

  • Color

    262K

  • Color

    262K

  • Color

    262K

  • Brightness

    400 cd/m2

  • Brightness

    400 cd/m2

  • Brightness

    400 cd/m2

  • Contrast

    800: 1

  • Contrast

    800: 1

  • Contrast

    800: 1

  • Aspect Ratio

    16: 9

  • Aspect Ratio

    16: 9

  • Aspect Ratio

    16: 9

  • Backlight

    LED

  • Backlight

    LED

  • Backlight

    LED

  • Video Interface

    CVBS 1 In, YPbPr 1 In, HDMI 1 In/Out
    Speaker 1 (built-in) / Ear Phone 1 (built-in)

  • Video Interface

    CVBS 1 In, YPbPr 1 In, HDMI 1 In/Out
    Speaker 1 (built-in) / Ear Phone 1 (built-in)

  • Video Interface

    CVBS 1 In, YPbPr 1 In, HDMI 1 In/Out
    Speaker 1 (built-in) / Ear Phone 1 (built-in)

  • SDI In

    1080p (23.98/24/25/29.97/30/50/59.94/60)
    1080psf (23.98/24/25/29.97/30)
    1080i / 720p (50/59.94/60), 480i (59.94), 575i (50)

  • SDI In

    1080p (23.98/24/25/29.97/30/50/59.94/60)
    1080psf (23.98/24/25/29.97/30)
    1080i / 720p (50/59.94/60), 480i (59.94), 575i (50)

  • SDI In

    1080p (23.98/24/25/29.97/30/50/59.94/60)
    1080psf (23.98/24/25/29.97/30)
    1080i / 720p (50/59.94/60), 480i (59.94), 575i (50)

  • Functions Assignable in F1-F4

    Center Marker, Screen Marker, Check Field, Color Bar, PIP
    Camera, Flip, Zoom, Pixel-to-Pixel, Freeze Input, H/V Delay
    Under Scan, Peaking, False Color, Exposure, Histogram

  • Functions Assignable in F1-F4

    Center Marker, Screen Marker, Check Field, Color Bar, PIP
    Camera, Flip, Zoom, Pixel-to-Pixel, Freeze Input, H/V Delay
    Under Scan, Peaking, False Color, Exposure, Histogram

  • Functions Assignable in F1-F4

    Center Marker, Screen Marker, Check Field, Color Bar, PIP
    Camera, Flip, Zoom, Pixel-to-Pixel, Freeze Input, H/V Delay
    Under Scan, Peaking, False Color, Exposure, Histogram

  • Environment

    0 - 50 deg. C / 32 - 122 deg. F(Operating)
    -20 - 60 deg. C / -4 - 140 deg. F (Storage)

  • Environment

    0 - 50 deg. C / 32 - 122 deg. F(Operating)
    -20 - 60 deg. C / -4 - 140 deg. F (Storage)

  • Environment

    0 - 50 deg. C / 32 - 122 deg. F(Operating)
    -20 - 60 deg. C / -4 - 140 deg. F (Storage)

  • Power Requirement

    100VAC to 240VAC (with AC Adaptor, XLR Connector)

  • Power Requirement

    100VAC to 240VAC (with AC Adaptor, XLR Connector)

  • Power Requirement

    100VAC to 240VAC (with AC Adaptor, XLR Connector)

  • Power Consumption

    Approx. 11W

  • Power Consumption

    Approx. 11W

  • Power Consumption

    Approx. 11W

  • Optional Rack Mount

    RMK-02

  • Optional Rack Mount

    RMK-02

  • Optional Rack Mount

    RMK-02

  • Dimensions

    191.5 x 152.3 x 41.7" / 486.41 x 386.84 x 105.92cm

  • Dimensions

    191.5 x 152.3 x 41.7" / 486.41 x 386.84 x 105.92cm

  • Dimensions

    191.5 x 152.3 x 41.7" / 486.41 x 386.84 x 105.92cm

  • Weight

    1.67lbs / 0.76kg, 2.06lbs / 0.93kg (w/ cover), 4.76lbs / 2.16kg(w/ carrying case)

  • Weight

    1.67lbs / 0.76kg, 2.06lbs / 0.93kg (w/ cover), 4.76lbs / 2.16kg(w/ carrying case)

  • Weight

    1.67lbs / 0.76kg, 2.06lbs / 0.93kg (w/ cover), 4.76lbs / 2.16kg(w/ carrying case)

About Orion Images VF703G-RMK1

This 7" monitor uses an IPS panel featuring 178 deg. /178 deg. wide viewing angles and is capable of multiinputs including 3G-SDI and HDMI input and output. Many of the built-in functions and front assignable buttons make very convenience to use in the field.

Our Viewfinder / Field monitor support 3G-SDI / HDMI / YPbPr / CVBS video inputs and 3G-SDI / HDMI video outputs. Also use DC7-24V (XLR Connector) power input.

The versatile folding sunshade hood is easy viewing in field and outside broadcast production when critical monitoring is required. It quickly removes when not needed.

178O horizontal & 178O vertical wide viewing angles, it's available for people viewing from different angles with the same visual effect.

Design for Broadcasting & Live Events
• Tally interface will be available when monitor
• becomes view finder of camcorder
• Adjustable gimbal bracket & ear phone slot
• Slim & portable, easy for installation
• DC powered. Optional Anton Bauer & IDX
• battery brackets can be mounted on back

Special Features
• 7" IPS 1280 x 800 Wide Viewing Angles and High Resolution
• Tally Interface
• Input Power DC7-24V (XLR Connector)
• Optional AB or IDX Battery Bracket

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Orion Images VF703G-RMK1 7 " Single View Finder Monitor with BLK-02 Metal Plate
  • Carrying Case
  • Shoe Mount
  • Sony Bracket for F970
  • HDMI Cable
  • Canon Bracket for LEP6
  • Folding Sunshade Hood
  • Power & Tally Cable
  • DC Adapter
  • Orion Images 2 Year Parts & Labor Limited Warranty
