Black
21.5" (54.61cm)
1920x1080 FHD
1500 nits
1100:1
10 bits
2x 3G/HD/SD-SDI signal inputs/outputs
1x 4K@30 HDMI input
2K (2048x1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf
HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I
HD (1280x720): 50/59.94/60P
4K (4096x2160): 23.98/24/25/29.97/30P
UHD (3840x2160): 23.98/24/25/29.97/30P
2K (2048x1080): 23.98/24/25/50
HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I
HD (1280x720): 50/59.94/60P
1x USB Type-A: 3D-LUT upload, firmware upgrade
1x USB Type-C: internal color calibration via x-rite i1 display pro
3.5mm mini Jack: ear phone
3D-LUT: 10 User 3D LUTs
Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film, 4K Film, 4.6K Film; Canon C Log, C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Log3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6
100-240V (50/60Hz) AC / 11-17V/5A (XLR Pin4)
46W
Aspect, Safe, Center, Crosshatch, Anamorphic
False Color, Zebra, Waveform, Vector, Histogram
Focus Assist, Peaking
DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter, Time Code
Optional, not included
Lithium ion
Non-universal
1
China
20.61 x 13.32 x 2.99" (52.34 x 33.84 x 7.59cm)
14.77 lbs (6.7kg)
769293552299

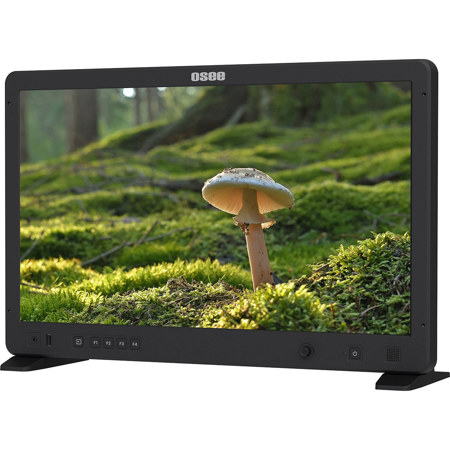

Mega 225 1500 nits Field Monitor
Even better display quality
For on-set capture quality control
Shows ultra-clear images
Bright in any daylight conditions
IPS Panel
Greater color depth provides enormous creative freedom and displays the lovely pictures for your client.
Precise Color & Tone Reproduction
22-bit image engine and tetrahedral 3D-LUT interpolation support HLG/PQ HDR, and various camera logs.
Quick & Convenient UI Settings
Up to 10 USER 3D LUTS can be loaded into the monitor menu. You can add your favorite color profile via USB and easily display different effects.
Various Professional Scene Tools
Aspect
Safe
Center
CrossHatch
Anamorphic
False Color
Zebra
Waveform
Vector
Histogram
Focus Assist
Peaking
De-Log
Multi-Scopes
Audio Meter
Time Code
Rotary Encoder
A rotary encoder combines push, four directional, and rotation control into a single knob, making the Ul navigation and adjustments faster.
Designed for on-set monitoring
With built-in Calibrate Display Color Technology, match the display to real-life colors.
