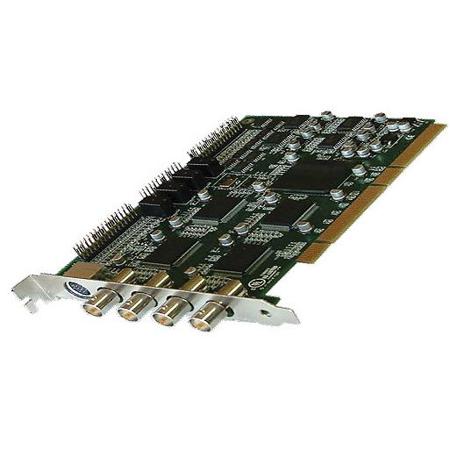

Osprey Video 440 PCI-X 4-Channel Analog Video Capture Card with SimulStream Software

PCI-x 4 Channel Analog Video Capture
Four channels of analog composite video make the Osprey 440 video capture card an excellent choice for high-density capture on legacy PC platforms.

Four Channel Analog Video
• 4 composite (BNC x 1)

Audio Inputs
• Unbalanced stereo (RCa X 8)

Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility.

Application Compatibility
• Microsoft DirectShow drivers are available for compatibility with most software.
• Open source Linux V4L drivers available.
• Microsoft Windows SDK lets you create custom applications.
• Created for the security industry, the Osprey 440 SDK exposes the unique features of the card including 12 additional switchable video inputs and 8 stereo audio inputs.

Driver Based Pre-Processing
• Closed-caption extraction/rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine

Osprey SimulStream Ready
SimulStream is an optional (this model has SimulStream software) Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.
