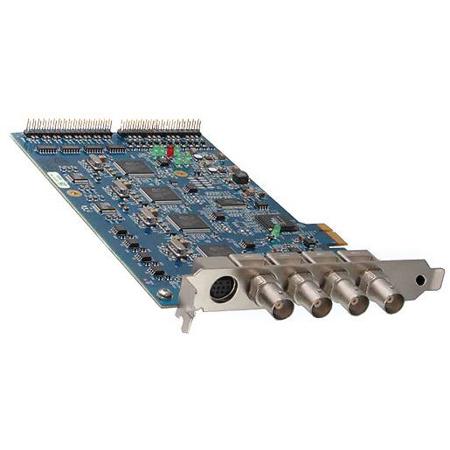

Osprey Video 460e PCIe 4-Channel Analog Video Capture Card with SimulStream
See all Osprey Video items

Osprey Video 460e PCIe 4-Channel Analog Video Capture Card with SimulStream Software

SKU: OSP9500472

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Osprey Video 460e Specifications

  • Format

    PCIe (x 1)
    Slots: x1, x4, x8 or x16
    PCIe 2.0

  • Video Input

    Composite, Component, S-Video

  • Video Connector

    Composite x4 (BNC x 4)
    (BNC - RCA adapters included)
    (additional BNC x 12 optional)
    Y/C x 4 (BNC x 8) (optional)

  • Video Modes

    NTSC/PAL
    720 x 480 29.97, 30/i (NTSC)
    852 x 480, 29.97, 30/i (NTSC Wide Screen)
    720 x 576 25/i (PAL)
    Wide Screen Signaling (WSS)

  • Audio Input

    Unbalanced stereo

  • Audio Output

    Unbalanced stereo line (3.5mm)

  • Audio Connector

    Unbalanced stereo (4 pair)
    RCA via breakout cable (included)

  • Power Consumption

    11W

  • Operating Temp Range

    0 to 40 deg. C / 32 to 104 deg. F

  • Non-Operating Temp Range

    -40 to 75 deg. C / -40 to 167 deg. F

  • Rel Humidity Operating

    Between 5 % and 80 % (noncondensing)

  • Rel Humidity Non-Operating

    95 % RH (non-condensing); gradient 30% per hour

  • Operating Altitude Range

    0 to 3048.04m (10000')

  • Non-Operating Altitude Range

    0 to 15240.19m (50000')

  • Dimensions (L x H)

    6.60 x 4.38" (16.76 x 11.13cm) (Full height/half length)

  • Weight

    227g / 8.01oz

About Osprey Video 460e

PCIe 4 Channel Analog Video Capture
Four channels of analog composite video make the Osprey 460e video capture card an excellent choice for high-density capture on modern PC platforms. The unique A/V expansion option opens a whole world of possibilities for this highquality capture card.

Four Channel Analog Video
• 4 composite (BNC x4)

Audio Inputs
• Unbalanced stereo (RCa X 8)

Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility

Driver Support
• Microsoft DirectShow drivers are available for compatibility with most software.
• Linux
• Microsoft Windows SDK lets you create custom applications.

Driver Based Pre-Processing
• Closed-caption extraction/rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine

Osprey SimulStream Ready
SimulStream is an optional (this model has SimulStream Software) Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

AV Expansion Option
The Osprey 460e AV option (pictured below) provides additional video inputs and four stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video 460e PCIe 4-Channel Analog Video Capture Card with SimulStream Software
  • 4x BNC to RCA Adapter
  • Audio Breakout Cable (8x RCA)
  • Driver and Documentation CD
  • Osprey Video 1 Year Parts & Labor Limited Warranty
