Osprey Video 260e PCIe Analog Video Capture Card with Stereo Audio
See all Osprey Video items

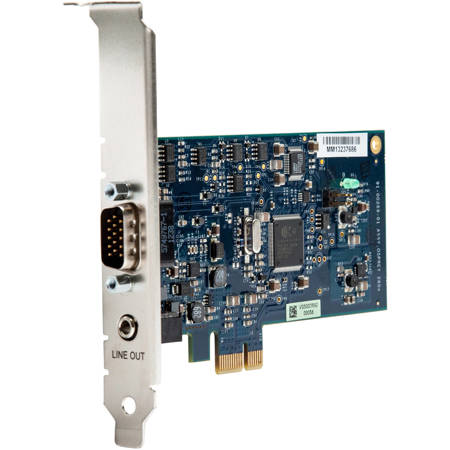

Osprey Video 260e PCIe Analog Video Capture Card with Stereo Audio

SKU: OSP9500473
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Osprey Video 260e Specifications

  • Format

    PCIe (x 1)
    Slots: x1, x4, x8 or x16
    PCIe 1.1

  • Video Input

    Composite, Component, S-Video

  • Video Connector

    Composite (BNC x 1)
    Y/C (BNC x2) (BNC to mini-DIN adapter included)
    Component (BNC x3)

  • Video Modes

    NTSC/PAL
    720 x 480 29.97, 30/i (NTSC)
    852 x 480, 29.97, 30/i (NTSC Wide Screen)
    720 x 576 25/i (PAL)
    Wide Screen Signaling (WSS)

  • Audio Input

    Unbalanced stereo (RCA x 2)

  • Audio Output

    Unbalanced stereo line (3.5 mm)

  • Audio Connector

    Unbalanced stereo (RCA x 2)
    Unbalanced (3.5 mini phono) stereo

  • Power Consumption

    3.58W

  • Operating Temp Range

    0 to 40 deg. C / 32 to 104 deg. F

  • Non-Operating Temp Range

    -40 to 75 deg. C / -40 to 167 deg. F

  • Rel Humidity Operating

    Between 5 % and 80 % (noncondensing)

  • Rel Humidity Non-Operating

    95 % RH (non-condensing); gradient 30% per hour

  • Operating Altitude Range

    0 to 3048.04m (10000')

  • Non-Operating Altitude Range

    0 to 15240.19m (50000')

  • Dimensions (L x H)

    5.00 x 2.71" (12.70 x 6.88cm) (Low profile/half length)

  • Weight

    65g / 2.29oz

  • UPC Code

    850189006030

About Osprey Video 260e

PCIe Analog Video Capture with Stereo Audio
The Osprey 260e video capture card is a single channel card that supports composite, component and S-Video inputs along with balanced or unbalanced stereo audio.

Single Channel With Switchable Inputs
• 1 composite (BNC x 1)
• 1 S-Video (mini-DIN)
• 1 component (BNC x 3)

Audio Inputs
• Balanced stereo (XLR x 2)
• Unbalanced stereo (RCa X 2)

Audio Loop out
• Stereo (3.5 mm)

Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility.

Driver Support
• Microsoft DirectShow drivers are available for compatibility with most software.
• Open source Linux V4L drivers available.
• Microsoft Windows lets you create custom applications.

Driver Based Pre-Processing
• Closed-caption extraction/rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine

Osprey SimulStream Ready
SimulStream is an optional Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video 260e PCIe Analog Video Capture Card with Stereo Audio
  • Low-Profile Bracket
  • BNC to RCA Adapter
  • Breakout Cable
  • BNC to S-Video Adapter
  • Driver and Documentation CD
  • Osprey Video 1 Year Parts & Labor Limited Warranty
