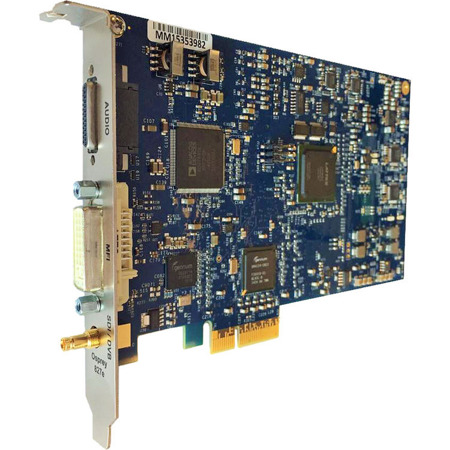

Osprey Video 827e Two Channel Analog and Digital Input Video Capture Card
See all Osprey Video items

Osprey Video 827e Two Channel Analog and Digital Input Video Capture Card with SimulStream

SKU: OSP9500487
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Osprey Video 827e Specifications

  • Format

    PCI Express (x 4):Slots: x 4, x 8, or x 16 PCIe 1.1

  • Video Input

    SDI: 3G SMPTE 424M
    HD SMPTE 292M
    SD SMPTE 259M
    DVB-ASI MPTS & SPTS
    HDMI (non HDCP)
    DVI
    VGA
    Composite, component (YPbPr)
    YCA

  • Video Connector

    1x SDI (DIN 1.0/2.3)
    1x DVI

  • Video Modes

    1080p 23.98, 24, 25, 29.97, 30, 60
    1080i 50, 59.94, 60
    720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    480i 29.97, 30 (NTSC)
    576i 25 (PAL)
    576p 25, 50

  • Analog Modes

    1920 x 1080/23.98, 24, 25, 50, 59.94, 60
    1600 x 1200/60
    1400 x 1050/60, 75
    1360 x 768/60
    1280 x 1024/60, 85
    1280 x 960/60, 85
    1280 x 800/60
    1280 x 768/75, 85
    1280 x 720/50, 60
    1024 x 768/60, 85
    800 x 600/85
    640 x 480/60, 85

  • Audio Input

    Balanced analog audio (2 stereo pair, 4 x mini XLR) Always available, Two additional pairs from list below
    AES digital audio (2 stereo pair, 2 x mini XLR)
    SPDIF digital audio (2 stereo pair, 2 x RCA)
    Unbalanced analog audio (2 stereo pair, 4 x RCA)

  • Available Drivers

    Microsoft Windows
    Linux

  • System recommendations

    High quality video capture requires a PCIe bus with direct access to the CPU

  • Operating Temperature Range

    0 to 40 deg. C / 32 to 104 deg. F

  • Non-Operating Temperature Range

    -40 to 75 deg. C / -40 to 167 deg. F

  • Relative Humidity Operating

    Between 5% and 80% (noncondensing)

  • Relative Humidity Non-Operating

    95% RH (non-condensing); gradient 30% per hour

  • Operating Altitude Range

    0 to 3,048 meters (10,000')

  • Non-Operating Altitude Range

    0 to 15,240 meters (50,000')

  • Dimensions (L x H)

    6.60 x 4.38" / 16.76 x 11.13cm Full height/half length

  • UPC Code

    850189006238

About Osprey Video 827e

Osprey SimulStream
A standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Signal Loss
In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

Video Pre-Processing
• VBI/VANC closed-caption extraction/on-screen rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine
• ProcAmp control
• Vector Scope and Lumi Scope

Driver Support
• Microsoft DirectShow API
• Linux V4L2

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video 827e Two Channel Analog and Digital Input Video Capture Card
  • DVI to VGA Adapter
  • DVI to HDMI Adapter
  • DVI to Component Cable (BNC x 3)
  • Audio Dongle
