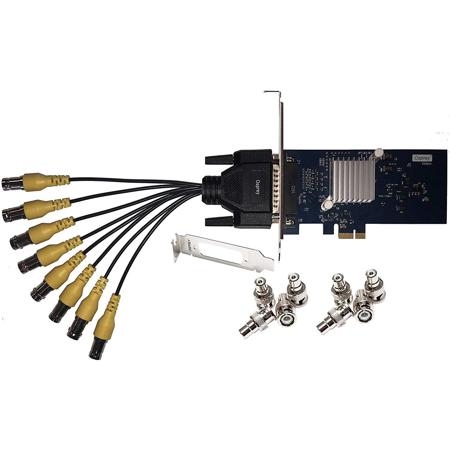

Osprey Video Analog PCIe Series 480e 8-Channel Composite Video Capture Card
See all Osprey Video items

Osprey Video Analog PCIe Series 480e 8-Channel Composite Video Capture Card

SKU: OSP9500497
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Osprey Video 480e Specifications

  • Video Input

    8x Composite/CVBS

  • Video Connectors

    8x BNC - RCA adapters included

  • Video Modes

    720 x 480 29.97, 30/I (NTSC)
    720 x 576 25i (PAL)

  • Interface

    PCI Express 2.0 x1

  • Operating Temperature Range:

    0 to 40 deg. C (32 to 104 deg. F)

  • Power Consumption

    12W

  • Weight

    48g (1.69 oz) (without breakout cable)

About Osprey Video 480e

The Analog PCIe Series of Capture Cards offer a wide range of input selections. Ideal for mission critical video capture, deploy two or more cards in a single workstation or server chassis for maximum input density. Driver based pre-processing features include closed-caption extraction and rendering, logo and bitmap overlay, scaling, cropping, deinterlacing and inverse telecine. The quality, reliability and flexibility makes this series perfect for applications in Broadcast, Education, Enterprise, Government, Medical, Military, sports and House of Worship.

SimulStream
SimulStream which allows each input to produce multiple parallel output streams with independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Osprey Video 480e Features

  • Simulstream lets you extract multiple streams with independent resolutions and frame rates from a single input
  • Medialooks SDK Support
  • Independent Scaling and Frame Rate Conversion for each Input
  • Eight Channel Composite Video
  • No Audio
  • Text Overlay Watermarking
  • Deinterlacing
  • Windows
  • Linux

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video Analog PCIe Series 480e 8-Channel Composite Video Capture Card
  • Full and Half Height Bracket
  • Breakout Cable
  • 8x BNC to RCA Adapters
  • Osprey Video 2 Year Parts and Labor Limited Warranty
