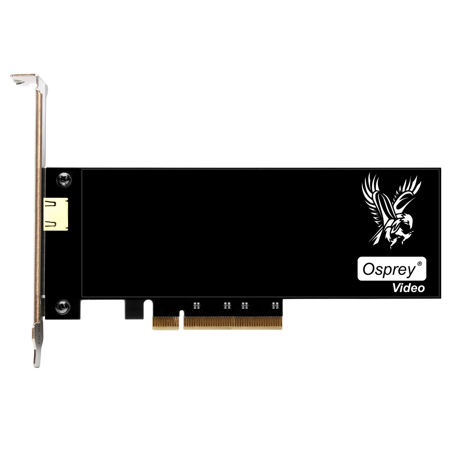

Osprey Video Raptor Series 1214 PCIe Capture Card with HDMI 2.0 4K60, Embedded 4 Stereo Audio Pairs Per-Channel

Single Channel HDMI2.0 (4K60)

Driver Features
• Unified driver (common driver for all Raptor cards)
• Multiple Osprey cards can be plugged into one system
• Automatic signal detection
• Seamless Adaption to Input Signal Changes (Framerate/Resolution)

Supported OS
• Windows - 7/8/8.1/10/Server 2008 (R2)/Server 2012/Server 2016 (x64)
• Linux (x64) - Ubuntu, Redhat, openSUSE

Supported APIs

Windows
• DirectShow
• Microsoft Media Foundation
• Osprey Low Latency SDK
• Medialooks SDK
• Wave API/DirectSound/WASAPI

Linux
• V4L2
• Osprey Low Latency SDK
• ALSA

Supported Software
• FFMPEG
• GStreamer
• VLC
• VirtualDub
• OBS
• XSplit
• vMix
• VidBlaster
• Wirecast
• Microsoft Media Encoder
• Adobe Flash Media Encoder
• Any other DirectShow/V4L2 encoding/streaming software

Video Capture Formats
RGB32, RGB24, RGB16, RGB8, UYVY, YUY2, I420, YUV9, NV12

Driver Profiles
Pre-defined properties that are applied to a specific video capture filter. When profiles are enabled for a device the video capture filter names have the profile number (P0 - P3) embedded in the name (i.e. Osprey-925 SDI-A P0 Video Device 1). Each profile can have completely different settings with the exception of those that are common to the device (i.e. Profiles enabled) and those that are common to individual sub devices (i.e. Loss of Signal). Any of the predefined settings can be temporarily, or permanently, changed at runtime.

Custom Loss of Signal Insertion
• Choice of blue, black, or colorbars
• Custom user text with custom placement and font selection
• Background and foreground color selections
• Selectable audio tone generation (None, 1KHz, 3KHz)

VBI extraction (not supported on HDMI)
DirectShow-compatible VBI pins are provided on the Video Device Capture Filter. VBI data includes Vertical Interval Timecode (VITC) in both the NTSC and PAL worlds. In NTSC, line 21 Closed Captioning (although it is part of the video interval rather than true VBI data), is commonly treated as VBI data. In PAL, World Standard Teletext (WST) is encoded in the VBI data region.

The driver delivers VBI data as raw waveforms, which are then decoded by external DirectShow filters. DirectShow provides three filters under the classification "WDM Streaming VBI Codecs" that will decode data from VBI pins:

• CC Decoder
• NABTS/FEC VBI Codec
• WST Codec

CC Extraction (not supported on HDMI)
• Both CEA-608 and CEA708 specifications are supported
• Can be delivered as Line-21 Byte Pair or as Line-21 GOP Packet
• CC data available through DirectShow VBI pin on Video Device Capture filter. (Both NTSC, PAL, and digital captions)
• Decoded CC available through the DirectShow CC pin on the Video Device Capture Filter. (Only NTSC and digital captions)
• CC data available through V4L2

Dual Mono Audio Support
The left and right stereo pair inputs to a device are used as two separate mono channels serving two separate audio capture filters. Connector configuration capabilities (Input, Loopout, Output) should be added. Ability to enable/Disable individual audio channels per connector.

Driver Video Processing
• Scaling, Cropping, Frame, Rate Conversion
• Color Space Conversion
• Watermarking

CC overlay (not supported on HDMI)
• Captions can be rendered directly onto the capture or preview video
• Caption field selection
• Custom placement of text
• Font selections
• Background and foreground color selection

Text overlay
• Up to 5 different fields can be overlaid simultaneously
• Font selections
• Date and Time localization
• Date
• Custom placement of text
• Background and foreground color selections

Three different date formats
• MM/DD/YYYY
• YYYY/MM/DD
• YYYY/DD/MM

Six different time formats
• HH:MM AM/PM
• HH:MM:SS AM/PM
• HH:MM:SS.999 AM/PM
• HH:MM (24h format)
• HH:MM:SS(24h format)
• HH:MM:SS.999(24h format)

Three different text lines
• Custom placement of text
• Background and foreground color selections

Four different text options
• Free Form
• Sub Device Id (Filter Name)
• Device Id (Device Name)
• Serial Number

VBI extraction
VBI data available through DirectShow VBI pin on Video Device Capture filter.

Image Control (Procamp)
• Brightness
• Contrast
• Saturation
• Hue
• Gamma

Video De-interlacing
• BOB1, BOB2
• Advanced
• Inverse Telecine
