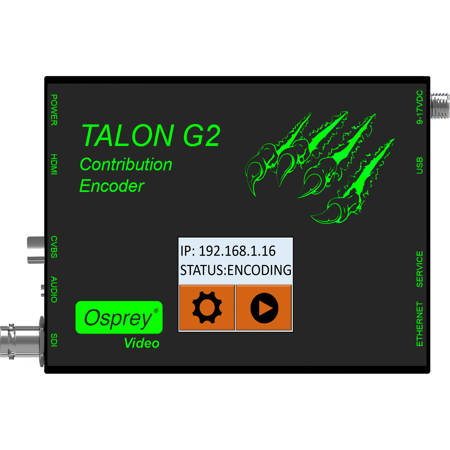

Osprey Video Talon G2 3-Channel H.264 Portable Hardware Based Encoder, SDI HDMI Composite & Audio Input with LCD Touch Display

SKU: OSP9602012

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Osprey Video G2 Specifications

  • Video Input

    3G SMPTE 424M
    HD SMPTE 292M
    SD SMPTE 259M
    HDMI 1080P/60
    Composite (CVBS)

  • Video Connector

    Composite (1x RCA)
    SDI (1x BNC)
    HDMI

  • Audio Input

    Unbalanced stereo
    Embedded SDI (1 stereo pair)
    Embedded HDMI (1 stereo pair)

  • Audio Connector

    Unbalanced stereo (1x 3.5mm)

  • Video Modes

    1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60
    1080i 50, 59.94, 60
    720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    720 x 480 29.97, 30/i (NTSC)
    720 x 576 25/i (PAL)
    720 x 576 25, 50/p

  • Encoding

    Video Encoding: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File
    Audio Encoding: AAC-LC & AAC-HE (32 to 320 kbps)

  • Closed Caption

    Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard

  • LED Indicators

    Power, Encoding, Signal Lock for SDI, HDMI, Composite

  • USB Connector

    USB Type A 2.0

  • Ethernet Connector

    1x GigE

  • Software Control

    HTTP Based-GUI

  • Power Consumption

    6W

  • Compliance

    CE, FCC, ROHS, WEEE

  • Dimensions

    Without mounting brackets or connectors: 93.1 x 120.2 x 24.75mm (3.67 x 4.73 x 0.97")

  • Weight

    260g (9.17 oz)

About Osprey Video G2

Osprey Talon G2 hardware-based streaming contribution encoder is designed for A/V and broadcast customers looking for end-to-end video-streaming tools. The Talon series ingests video from multiple formats, encodes it to H.264 and delivers it over IP. Capable of ingesting video via 3G-SDI, HDMI or Analog Composite, Talon series encode up to three streams simultaneously, with frame alignment across all streams for multiple-bit-rate RTMP streaming.

Encode configurations are independent (unless frame aligned) allowing users to create up to three separate encodes, i.e. one RTMP stream, one UDP stream and a separate archive saved as .ts file. A simple, Web-based interface gives users quick access to encoding settings for easy configuration. Talon's small form factor, low power consumption and silent, fanless operation mean users can effectively set it and forget it.

Osprey Talon Series are small form-factor H.264 Video Encoders designed to be easy to use, portable and easily stream both your standard definition and high definition content to broadband and mobile networks. They feature a fanless design with a low power consumption of <6W. The wide input voltage range of 9VDC - 17VDC also make it a perfect candidate for battery operated equipment and installations.

Osprey Video G2 Features

  • SDI, HDMI, CVBS, Analog Audio Inputs
  • 3 Configuration Modes
  • Closed Caption Support
  • Simultaneous Streaming and Archiving
  • Touch Display with the following features: IP Address, Status Indicator Encoding/Idle and Encoding Start/Stop

What's in the box:

  • Osprey Video Talon G2 3-Channel H.264 Portable Hardware Based Encoder
  • International Power Supply
  • Mounting Brackets
  • Osprey Video 2 Year Warranty
