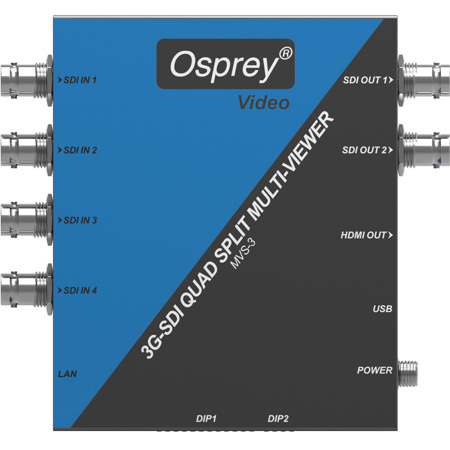

Osprey Video MVS-3 4 Channel SDI Multi Viewer
See all Osprey Video items

Osprey Video MVS-3 4 Channel SDI Multi Viewer

SKU: OSP9700003
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Osprey Video MVS-3 Specifications

  • Input Video Formats SDI

    1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1920x1080i 50, 59.94, 60
    1280x720p 50, 59.94, 60
    576i
    480i

  • Output Video Formats SDI, HDMI

    1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1920x1080i 50, 59.94, 60
    1280x720p 50, 59.94, 60
    576i
    480i

  • Color Space and Precision

    HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
    SDI: YUV 4:2:2

  • Video Inputs

    4x 3G-SDI, SMPTE 259/292/424, YCbCr 4:2:2

  • Video Outputs

    HDMI 1.3a
    2x 3G-SDI

  • Power

    12V 6W max

  • Dimensions

    125.5 x 104 x 24.5mm (4.94 x 4.09 x 0.96")

  • Weight

    0.7 lbs (0.32kg)

  • UPC Code

    850189006719

About Osprey Video MVS-3

The MVS-3 combines the features of a scalingconverter with a multi-viewer.When used as a scaler/converter, any one of the four 3G-SDI inputs can be routed to the three parallel outputs (2x3G-SDI, 1x HDMI)and scaled as desired. Used as a Multi-Viewer, two or more inputs can be directed to the outputs and displayed in a large variety of layouts. The Output resolution and frame rate can beset to any SMPTE supported standards. In addition, audio bars can be overlaid on each channel for quick signal monitoring. Outputs support Up and Down Scaling and frame rate conversion.MVS-3 can be configured via LAN or USB. It also features external dip-switches for manual configuration.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video MVS-3 4 Channel SDI Multi Viewer
  • International Wall Power Supply
  • Mounting Brackets
  • Osprey 2 Year Warranty
