Osprey Video VB-USL & SDI to USB 3 Video Capture Device with Loopout
See all Osprey Video items

Osprey Video VB-USL & SDI to USB 3 Video Capture Device with Loopout

SKU: OSP9721422

This item is no longer available.

Recommended Alternatives

Osprey Video Video Capture Device: Picture 1 regular

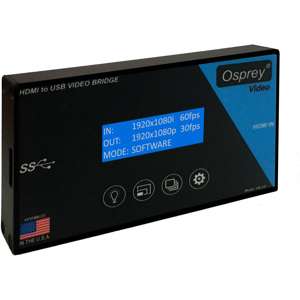

Osprey Video VB-UH & HDMI to USB 3 Video Capture Device
$339.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Osprey Video Video Capture Device Specifications

  • Video Formats SDI

    1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1920x1080i 50, 59.94, 60
    280x720p 25, 30, 50, 59.94, 60
    576i 50 PAL
    480i 60 NTSC

  • Video Formats Out (YUV 422)

    Frame rates 24, 25, 30, 50, 60
    1920x1080
    1680x1050
    1440x900
    1360x768
    1280x1024
    1280x800
    1280x768
    1280x720
    1024x768
    1024x576
    960x540
    856x480
    800x600
    768x576
    720x576
    720x480
    640x480
    640x360

  • Video Input

    3G-SDI, SMPTE 259/292/424, YUV422
    SD, HD, 3G Auto Detect

  • Audio Input

    2-Channel SDI Embedded Audio, 48kHz Sample Rate

  • Interfaces

    Full Size BNC
    Micro B USB 3.0 UVC/UAC Compliant

  • Power

    5V USB Powered; 4.5W max

  • Dimensions

    4 x 2.4 x 0.65" (10.16 x 6.10 x 1.65cm)

  • Weight

    0.25 lbs (0.11kg)

  • UPC Code

    850189006658

About Osprey Video Video Capture Device

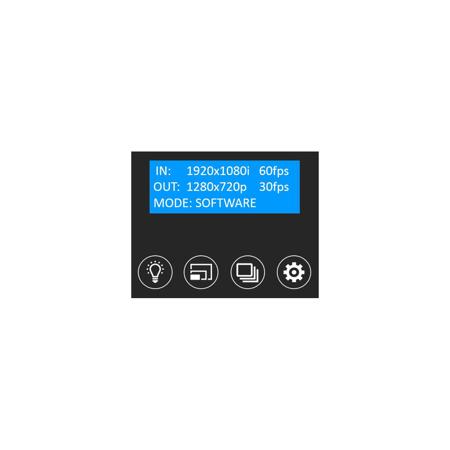

The USB Video Bridge capture device series includes 3G-SDI and HDMI models providing wide-ranging adaptability for complex workflows. Connecting directly to your computer's USB 3.0 port, the Video Bridge is true plug-and-play, requiring no drivers in Windows, Linux or Mac OS X. Two control scenarios support varying user requirements. Software control mode passes all available rates and resolutions to the capture software. Manual mode allows the pre-selection of a frame rate and resolution, allowing the user to control the load delivered to the USB bus. A "Follow Input" selection passes the input 1 to 1 to the host PC. For confidence monitoring, the input and output resolutions and frame rates are displayed on the unit's LCD screen.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video VB-USL & SDI to USB 3 Video Capture Device with Loopout
  • 3' USB Cable
  • Osprey Video 2 Year Warranty
