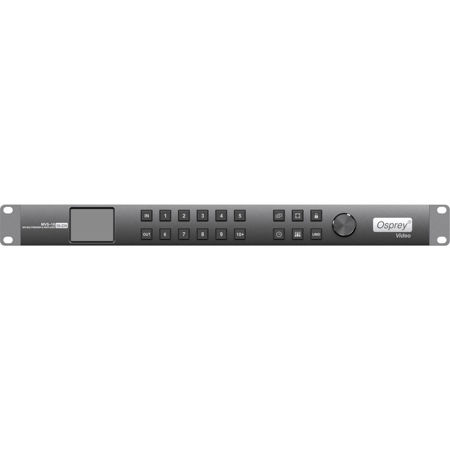

Osprey Video MVS-16 16x16 3G-SDI Rackmount Matrix Switcher/16 Ch MultiViewer
See all Osprey Video items

Osprey Video MVS-16 16x16 3G-SDI Rackmount Matrix Switcher/16 Channel 3G-SDI MultiViewer

SKU: OSP9731165
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Osprey Video MVS-16 Specifications

  • Video Connections

    34x Full Size BNC
    1x Full Size HDMI

  • SDI Video Rates

    3G/HD/SD/ASI - Level A and B

  • Controls

    Front Panel
    Ethernet
    RS232/422

  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50,59.94,60
    1080p23.98,24,25,29.97,30,50,59.94,60
    1080psf 23.98,24,25,29.97,30
    1080i50,59.94,60

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 424M

  • SDI Metadata Support

    Pass through of all embedded ancillary data

  • Audio

    Up to 16 Embedded Audio Channels pass through

  • SDI Color Precision

    8,10,12-bit RGB 4:4:4, 8,10,12-bit YUV 4:2:2/4:4:4

  • Multiple Rate Support

    Auto Detect SD/HD/3G-SDI and ASI

  • MultiViewer Outputs

    Dual SDI Out at 1080P/720P 25/30/50/60
    HDMI Out at 1080P/720P 25/30/50/60

  • Power

    Redundant 6-24VDC Power Inputs (Two Power Supplies Included)
    Power Requirement 24W

  • Dimensions

    Standard 19" 1 Rack Unit

  • UPC Code

    850189006931

About Osprey Video MVS-16

16x16 Matrix Switcher
MSV-16 is an affordable 16x16 Matrix Switcher in a small 1U 19" Rackmount package. All Inputs and Outputs are full size BNC connections. The unit features an integrated status display, multiple control options and lockout functionality. Pass through of all embedded Audio and Ancillary Data.

16 Channel Multi Viewer
MVS-16 can also be deployed as a 16 Channel SDI Multi Viewer. Each Channel can be monitored in a 4, 6, 9, 10 or 16 split layout, Audio Level Bars can be enabled for each channel. For multi view monitoring it features Dual 3G-SDI Outputs as well as parallel HDMI. The unit features an integrated status display, multiple control options and lockout functionality. Each Input features a Loopout Channel.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video MVS-16 16x16 3G-SDI Rackmount Matrix Switcher/16 Channel 3G-SDI MultiViewer
  • 2x Power Supply
  • Osprey Video Warranty
