Osprey Video SHCSA-2 USB Powered Scaling SDI to HDMI Converter
See all Osprey Video items

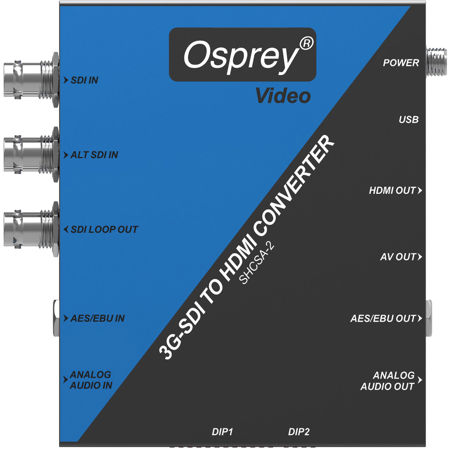

Osprey Video SHCSA-2 USB Powered Scaling SDI to HDMI Converter

SKU: OSP9741211
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Osprey Video SHCSA-2 Specifications

  • Input Video Formats SDI

    1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1920x1080psf 23.98, 24, 25, 29.97, 30
    1920x1080i 50, 59.94, 60
    1280x720p 50, 59.94, 60
    576i
    480i

  • Output Video Formats HDMI

    1920x1080p 24, 25, 30, 50, 60
    1920x1080i 50, 59.94, 60
    1280x720p 50, 59.94, 60
    625i 50
    525i 60

  • Output Video Formats AV

    NTSC, PAL

  • HDMI Color Space and Precision

    HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
    SDI: YUV 4:2:2

  • Video Input

    3G-SDI, SMPTE 259/292/424, YCbCr 4:2:2
    Alternate 3G-SDI (Failover)

  • Video Output

    HDMI 1.3a
    CVBS (Composite)
    3G-SDI Loopout

  • Audio Input

    Embedded SDI, Analog Stereo, AES/EBU

  • Audio Output

    Embedded HDMI, Analog Stereo, AES/EBU

  • Power

    12V 6W max

  • Dimensions

    5 x 2.4 x 0.95" (12.70 x 6.10 x 2.41cm)

  • Weight

    0.7 lbs (0.32kg)

  • UPC Code

    850189006672

About Osprey Video SHCSA-2

The Scaling Converter Series of products includes these "Swiss Army Knife" converters, an all-in-one solution to your SDI and HDMI needs. Supporting conversion from SDI to HDMI (SHCSA-2) or HDMI to SDI (HSCSA-2) as well as Scaling, Audio and Color Space options, these unique tools also feature Video Frame Rate Conversion and Up / Down Scaling Options. AES/EBU and Analog Audio can be embedded into the workflow or deembedded for external monitoring.

Multiple video output options enable confidence monitoring of the workflow. The settings can be changed by manual dip switches as well as a USB interface. Up to four custom settings can be configured with the software and are accessible via either interface. Diagnostic data overlay can be enabled to monitor video information.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video SHCSA-2 USB Powered Scaling SDI to HDMI Converter
  • International Wall Power Supply
  • Mounting Brackets
  • USB and AV Breakout Cable
  • Osprey Video 2 Year Warranty
