Osee T5+ 5.5" Full HD On-Camera Monitor Kit, Supports 4K HDMI

SKU: OST5P MFR: T5+
$110.00
Earn VIP Reward Points

Key Features

  • Capture every detail with the Osee T5+'s vibrant 5.5" Full HD on-camera monitor.
  • Enjoy accurate colors with 100% Rec. 709 & DCI-P3, great for on-location video shoots.
  • Supports 4K HDMI input, ensuring compatibility with a wide range of cameras.
  • Achieve perfect focus with focus peaking, false color, and zoom features on this monitor.
  • Use HDR10/HLG support to preview HDR content directly on the Osee T5+ video monitor.
  • Lightweight at just 6.17 oz, the Osee T5+ is perfect for gimbal and rig setups.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Osee T5+ Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    5.5" (14cm)

  • Native Resolution

    1920 x 1080 FHD

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 160 Degree
    Vertical: 160 Degree

  • Touchscreen

    No

  • Maximum Brightness

    1000 nits / cd/ sq. m

  • Contrast Ratio

    1000:1

  • Color Support

    1.07 Billion Colors (8-Bit+FRC)

  • HDR Support

    Yes, HDR10/Hybrid Log Gamma

  • Color Gamut

    100% Rec. 709
    100% DCI-P3

  • LUT Support

    Yes

  • Image Controls

    Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Rotate, Pixel Zoom, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra

Inputs/Outputs

Jump to...
  • Video I/O

    1x HDMI 1.4 Input

  • Embedded Audio

    HDMI

  • Audio I/O

    1x 1/8" / 3.5 mm Headphone Output

  • Power I/O

    1x USB-C (17 VDC) Input
    1x Barrel (8.4 VDC) Output

  • Other I/O

    1x 2.5 mm (Camera Control)

  • Media/Memory Card Slot

    Single Slot: SD/SDHC (16 GB Maximum / LUT/Firmware Update Only)

  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    No

Format Support

Jump to...
  • Video Format

    HDMI:
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p
    576i
    480p
    480i

  • Gamma Curve

    ARRI Log C, Canon Log, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, RED IPP2, Sony S-Log

  • Input Power

    5 to 17 VDC

  • Battery

    1x L-Series/LP-E6 Combination Mount on Fixed Plate

  • Power Consumption

    5.5 W

Mounting

Jump to...
  • Tripod/Accessory Mounting

    Bottom/Right:
    1x ARRI Anti-Twist 1/4"-20

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Environmental Resistance

    No

  • Operating Conditions

    32 to 104 Degree F (0 to 40 Degree C)

  • Material

    Aluminum, Polycarbonate

  • Dimensions

    6.2 x 3.1 x 0.8" (157.5 x 79 x 20mm)

  • Weight

    6.17 oz (175g)

  • UPC Code

    769293552091

About Osee T5+

Bright
T5+ is the new upgraded version of osee's most popular model T5 with a brand new daylight viewable 1000nits panel. Making it suitable for both studio and outdoor videography.

What's more, with a contrast ratio of 1000:1 and osee's LOG/HDR processing technology, HDR realtime monitoring is not a problem anymore. Users can shoot HDR format and the monitor will help transform it into a standard image to monitor right in the field.

Light
This monitor only weighs 175g without battery and has a size similar with your phone. With a plastic ABS polycarbonate shell and a built-in aluminum sheet, it is not only light but also quite sturdy as well. It also has two metal 1/4'' metal screw holes with anti-rotation pin holes, you can attach it on your camera, gimbal, cage You can fit it into all kinds of setups without loose.

Smart
T5+ features the first generation of osee's MON OS, a convenient page style user interface that allows you to add up to 8 MySets, and up to 8 different image assist tools can be added in each MySet. When monitoring on location, users can switch between MySets to check different things at ease with simple toggles.

Osee T5+ Features

  • 1000-nit brightness for clear outdoor and studio videography
  • 1000:1 contrast and HDR/LOG processing for real-time HDR monitoring
  • Lightweight at 175g with a sturdy ABS polycarbonate shell
  • Convenient MON OS with up to 8 MySets and image assist tools for easy workflow
  • Metal 1/4'' screw holes and anti-rotation pins for secure mounting on any setup

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Capture every detail with the Osee T5+'s vibrant 5.5" Full HD on-camera monitor.
  • Enjoy accurate colors with 100% Rec. 709 & DCI-P3, great for on-location video shoots.
  • Supports 4K HDMI input, ensuring compatibility with a wide range of cameras.
  • Achieve perfect focus with focus peaking, false color, and zoom features on this monitor.
  • Use HDR10/HLG support to preview HDR content directly on the Osee T5+ video monitor.
  • Lightweight at just 6.17 oz, the Osee T5+ is perfect for gimbal and rig setups.

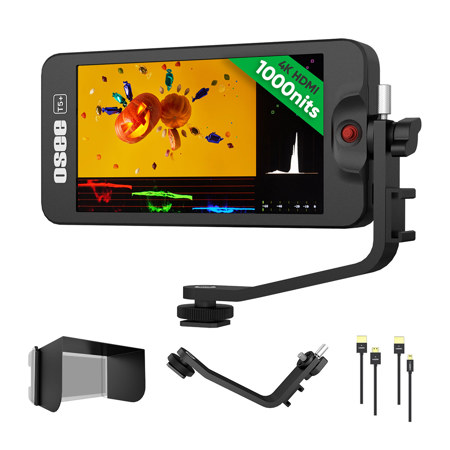

What's in the box:

  • Osee T5+ 5.5" Full HD On-Camera Monitor
  • Tilt Arm
  • Sun Hood
  • 11.8" HDMI-Micro Cable
  • 11.8"HDMI-Type A Cable
  • Osee 1 Year Limited Warranty
