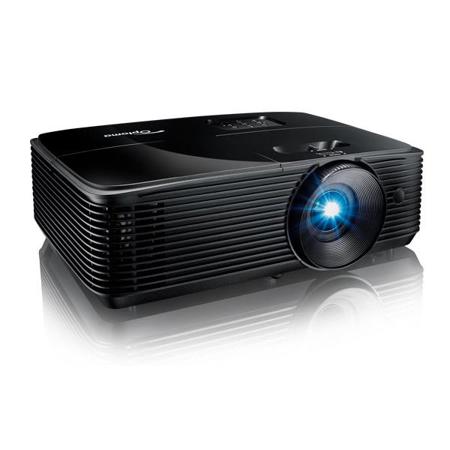

Optoma S334e Bright SVGA Projector, 800x600, 3800 Lumens

SKU: OUS334E

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Optoma S334E Specifications

Technical

Technical

Jump to...
  • Aspect Ratio

    4:3

  • Audio

    10W speaker

  • Brightness

    3,800 ANSI lumens

  • Compatible Aspect Ratio

    4:3 (native), 16:9 and auto compatible

  • Connections

    1x HDMI v1.4a, 1x VGA, 1x composite, 1x audio-in, 1x USB-A (5v / 1.0 amp), 1x audio

  • Contrast Ratio

    22,000:1

  • Control Unit

    RS-232C

  • Display Technology

    Texas Instruments 0.55" SVGA DMD

  • Displayable Colors

    1.07 billion

  • Keystone Correction

    +/- 40 Degree Vertical

  • Light Source Type

    203W

  • Light Source Life

    15,000/12,000/10,000/6,000 (Eco+/Dynamic/Eco/Bright)

  • Lens Shift

    None

  • Maximum Resolution

    UXGA (1600 x 1200)

  • Native Resolution

    SVGA (800 x 600)

  • Noise Level

    27dB

  • Offset

    115% +/-5%

  • Operating Temperature

    41-104 Degree F (5-40 Degree C)

  • Power Consumption

    230W (Bright) / 190W (Eco)

  • Power Supply

    AC input 100-240V, 50-60 Hz, auto-switching

  • Projection Distance

    3.9' - 46.9' (without zoom)

  • Projection Lens

    F = 21.85mm - 24mm

  • Projection Screen Size

    27.7" - 304.4"

  • Remote Control

    IR remote control

  • Throw Ratio

    1.94 - 2.16 +/-5%

  • Uniformity

    0.75

  • Zoom Type

    1.1x Manual

Compatibility

Jump to...
  • 3D Compatibility

    Side-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60

  • Computer Compatibility

    UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac compatible

  • Horizontal Scan Rate

    15.375 - 91.146 KHz

  • RoHS

    Compliant

  • Vertical Scan Rate

    50-85 Hz (120Hz for 3D feature projector)

  • Video Compatiblity

    SDTV, HDTV

Physical

Jump to...
  • Security

    Security bar, Kensington lock, password protection, keypad lock

  • Dimensions (W x H x D)

    12.4 x 3.9 x 9.6" (5.6 x 1.7 x 4.3cm)

  • Weight

    6.7 lbs (3.03kg)

About Optoma S334E

Robust I/O and superior performance
Project large SVGA images with the 3,800 lumens Optoma S334e. Its 22,000:1 contrast ratio, 1.94 - 2.16:1 throw ratio and 1.1x zoom make it ideal for small-to-medium spaces, such as classrooms, offices and training spaces.

Vertical keystone support simplifies placement for easy installation. An integrated 10-watt speaker delivers crisp, room-filling audio that enhances presentations and videos without additional equipment.

Robust input options, including HDMI, VGA and composite enable connectivity to a wide range of devices. A 15,000-hour lamp life enables many years of use with minimal maintenance.

Amazing Color
Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended.

Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray Disc players, 3D broadcasting, and the latest-generation game consoles. Support for 144Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses required.

High Contrast
Add more depth to your image with a high-contrast projector. With brighter whites and ultra-rich blacks, images come alive and text is crisp and clear.

Eco+
Specially designed lamp modes reduce power consumption by up to 70%. Each mode also improves lamp life, which lowers the total cost of ownership and reduces maintenance.

Quick Resume
This feature allows the projector to be instantly powered on again within 100 seconds of turning it off.

AV Mute
When enabled via remote control or network management, the projector suspends (dims) video output to conserve energy.

Auto Power Off
To help save energy, this feature automatically turns off the projector after a set period of time, if it is not being used.

Optoma S334E Features

  • Luminous SVGA projection with 3,800 lumens and 22,000:1 contrast ratio
  • HDMI, VGA and composite connectivity
  • Up to 15,000-hour lamp life
  • Vertical keystone for easy positioning
  • Integrated 10-watt speaker

Key Features

  • Luminous SVGA projection with 3,800 lumens and 22,000:1 contrast ratio
  • HDMI, VGA and composite connectivity
  • Up to 15,000-hour lamp life
  • Vertical keystone for easy positioning
  • Integrated 10-watt speaker

What's in the box:

  • S334e Bright SVGA Projector
  • AC Power Cable
  • Remote Control with Battery
  • Quick Start Guide
  • Optoma 1 Year Limited Warranty on Projector and 90 Day Limited Warranty on Lamp
