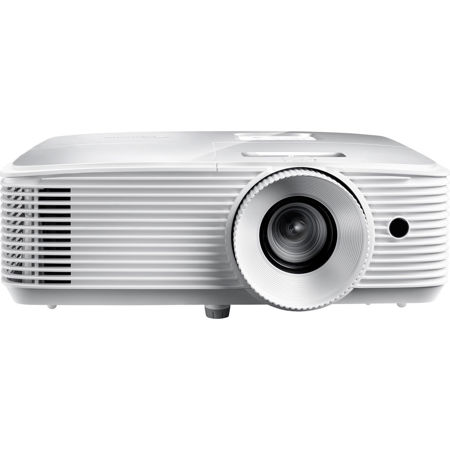

Optoma WU336 WUXGA 3D Multimedia DLP Projector, 1920x1200, 3400 Lumens, White

SKU: OUWU336

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Optoma WU336 Specifications

  • Display Technology

    Single 0.48" DMD S410, DC3 chip DLP Technology by Texas Instruments

  • Color Wheel

    RYGCWB

  • Native Resolution

    WUXGA (1920x1200)

  • Maximum Resolution

    WUXGA (1920x1200)

  • Brightness

    3400 ANSI lumens

  • Contrast Ratio

    20000:1

  • Displayable Colors

    1.07 billion

  • Lamp Life and Type

    15000/12000/10000/3500 (Extreme Dimming/Dynamic/ECO/Bright) - 240W

  • Projection Method

    Front, rear, ceiling mount, table top

  • Keystone Correction

    +/-40 deg. vertical

  • Keystone Distortion

    +/-1% max

  • Uniformity

    0.7

  • Offset

    116% +/- 5%

  • Aspect Ratio

    16:10 native, 16:9 and 4:3 compatible

  • Throw Ratio

    1.58 - 2.06

  • Projection Distance

    3.9 - 33.46' (1.19 - 10.20m)

  • Image Size

    27 - 299" (68.58 - 759.46cm)

  • Projection Lens

    F=2.43 -2.78, f=16.91 - 21.60mm manual

  • Optical Zoom

    1.3x

  • Digital Zoom

    0.8-2.0x

  • Audio

    10W

  • Noise Level

    27/32db

  • Remote Control

    Full size remote

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Operating Humidity

    85% max humidity

  • Power Supply

    AC input 100-240V, 50-60Hz, auto-switching

  • Power Consumption

    300W Typical (Bright mode), 330W Max (Bright mode), 210W Typical (Eco+ mode), 230W Max (Eco+ mode)

  • High Altitude

    Operating temp at sea level up to 10000 feet = 23F (max); must manually switch to high altitude mode at 5000 feet & above (using OSD)

  • Computer Compatibility

    FHD, HD, WXGA, UXGA, SXGA, XGA, SVGA, VGA, Mac

  • Video Input Compatibility

    PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)

  • 3D Compatibility

    Side-by-side:1080i50 / 60, 720p50 / 60
    Frame-pack: WUXGA24, 720p50 / 60
    Over-under: WUXGA24, 720p50 / 60

  • Vertical Scan Rate

    15 - 91kHz

  • Horizontal Scan Rate

    25 - 85Hz (120Hz for 3D)

  • User Controls

    Complete on-screen menu adjustment in 26 languages

  • I/O Connection Ports

    2x HDMI (with MHL), VGA-in, composite, audio-in, audio out, USB power, RJ-45, RS-232C

  • Loop Through (Audio)

    Yes

  • RoHS

    Compliant

  • Security

    Security bar, Kensington lock, password protection

  • Wireless

    No

  • Dimensions (WxHxD)

    12.44 x 4.27 x 9.2" (31.60 x 10.85 x 23.37cm)

  • Weight

    6.75 lbs (3.06kg)

About Optoma WU336

The Optoma WU336 is a bright WUXGA projector optimized for small-to-medium rooms, like classrooms, meeting rooms and training labs. Its 3400 lumens and 20,000:1 contrast ratio produces incredible sharp and vivid images, even with moderate room light. Support for sRGB and REC.709 color profiles ensures accurate color reproduction whether the source is PC, Mac or video devices.

A 1.3x zoom delivers robust installation options while wall color adjustment optimizes brightness for projection onto varying color surfaces with the Optoma WU336. The powerful internal speaker, driven by 10 watts of power, can fill a room with loud and crisp audio to further enhance media and presentations. Robust input options on the Optoma WU336 include 2 HDMI, VGA and composite for connectivity to a wide range of devices. A 15,000-hour lamp life enables many years of use with minimal maintenance.

The most Competitive projector
We offer full featured and very price competitive products in the WUXGA segment.

16:10 Projector
16:10 aspect ratio is the most commonly used with the latest WUXGA notebooks.

Brighter Performance
With its 3400 lumens brightness, the WU336 is The BEST choice in medium-sized spaces. Lights on viewing, vibrant in all conditions.

15000 hour lamp life
Via the extended Lamp Life Mode (Eco+), to maximum the projector efficiency with Low TCO.

1.3x Zoom Lens
A 1.3x zoom lens enables a larger throw distance range, easily creating a stunning 100 inch image from just 3.4-4.4 meters away.

Built-in speaker
A powerful integrated 10W speaker allows your content to be heard clearly and is easy to set up without the need for costly external speakers.

Versatile Connectivity
VGA, dual HDMI ports with MHL support and composite video connectors offers many ways to connect your devices.

MHL Display
Connect your mobile device directly to the projector by using a single MHL cable. Play games, stream videos and share photos on the big screen.

LAN Control
The RJ45 port provides additional network control ability. Crestron RoomView, Extron's IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing for any flexible networking solution.

Optoma WU336 Features

  • WUXGA projection with 3400 lumens and 20000:1 contrast ratio
  • Extensive I/O support with 2xHDMI (with MHL), VGA-in, composite, audio-in, audio-out, USB power, RS-232C
  • Powerful 10 watt speaker enhances presentations and audio/video with crisp and clear sound
  • Flexible installations with 1.3x Zoom and RJ-45
  • Minimal maintenance with 15,000 hour lamp life

What's in the box:

  • Optoma WU336 WUXGA 3D Multimedia DLP Projector
  • AC Power Cord
  • Remote Control
  • Carrying Case
  • Batteries
  • Multilingual CD-ROM User's Manual
  • Quick Start Card
  • Optoma 3 Year Express Service on Projector and 1 Year on Lamp Warranty
